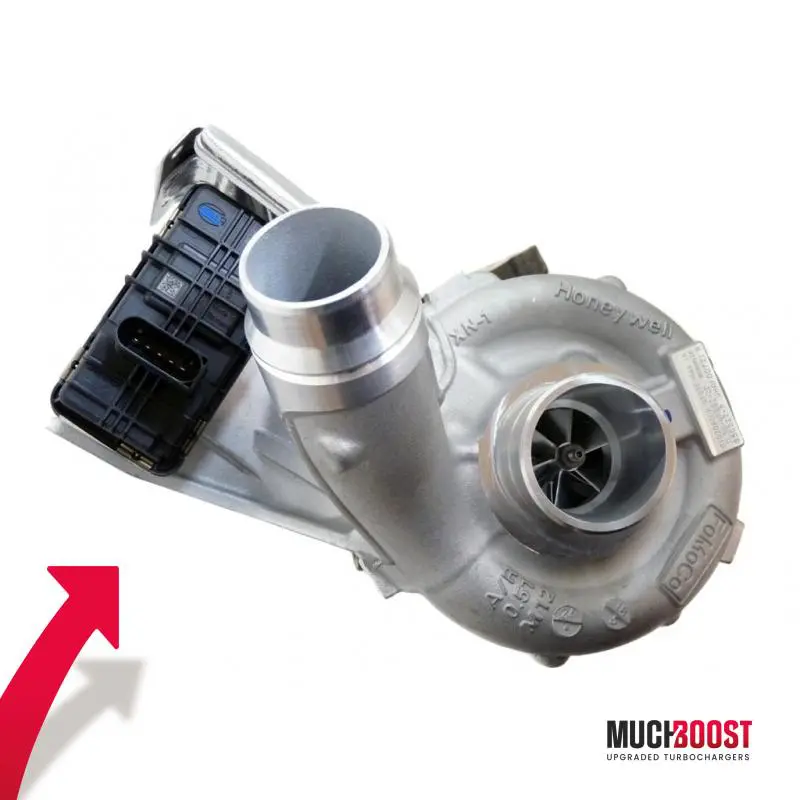

MuchBoost 3.0 PowerStroke Upgraded Turbocharger with a Custom Billet Compressor Wheel and a Larger High-Flow Turbine Wheels. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is designed for the 13th GEN Ford F150 with the 3.0 PowerStroke JFMX 252HP engines.

The turbo delivers up to 158% power (148 extra HP) over the factory specs.  With this turbo, you will get the most from your engine without going crazy on additional mods. We managed to create a turbocharger that will provide you with more power and torque. It is a great choice for someone looking for a bit extra HP and pulling power from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 350HP to 400HP.

MuchBoost 3.0 Power Stroke 330

Upgraded turbocharger with an estimated potential of ~330HP at the crank. The list of modifications:

  • Fast spool thanks to Custom Billet Compressor Wheel,
  • Clipped Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds,
  • Genuine Garrett compressor housing,
  • Genuine Garrett exhaust manifold,
  • Genuine Garrett bearing housing,
  • Genuine actuator,
  • Precisely machined seal plate & compressor housings,
  • Ceramic Ball Bearings that provide a smooth operation
  • Perfectly calibrated 5th GEN VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost 3.0 Power Stroke 400

Upgraded turbocharger with an estimated potential of ~400HP at the crank. Modifications compared to the 330 option are the same except:

  • Bigger Compressor Wheel,
  • Larger Turbine Wheel,
  • Machined exhaust housing.
Other significant modifications

The turbo is meant to work with ~330-400HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with every option you choose!


Cars
Ford F150 13th GEN 3.0EcoBoost – 252HP


Factory numbers

850522-5005S
850522-5
850522-5008S
850522-0008
850522-8
850522-5006S
850522-0006
850522-6

Engines

JFMX, 3.0EcoBoost


OEM number

JL3Q-6K682-CD
JL3Q6K682CD
JL30-6K682-CE
JL306K682CE


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.









POWER RANGE

330HP, 400HP
