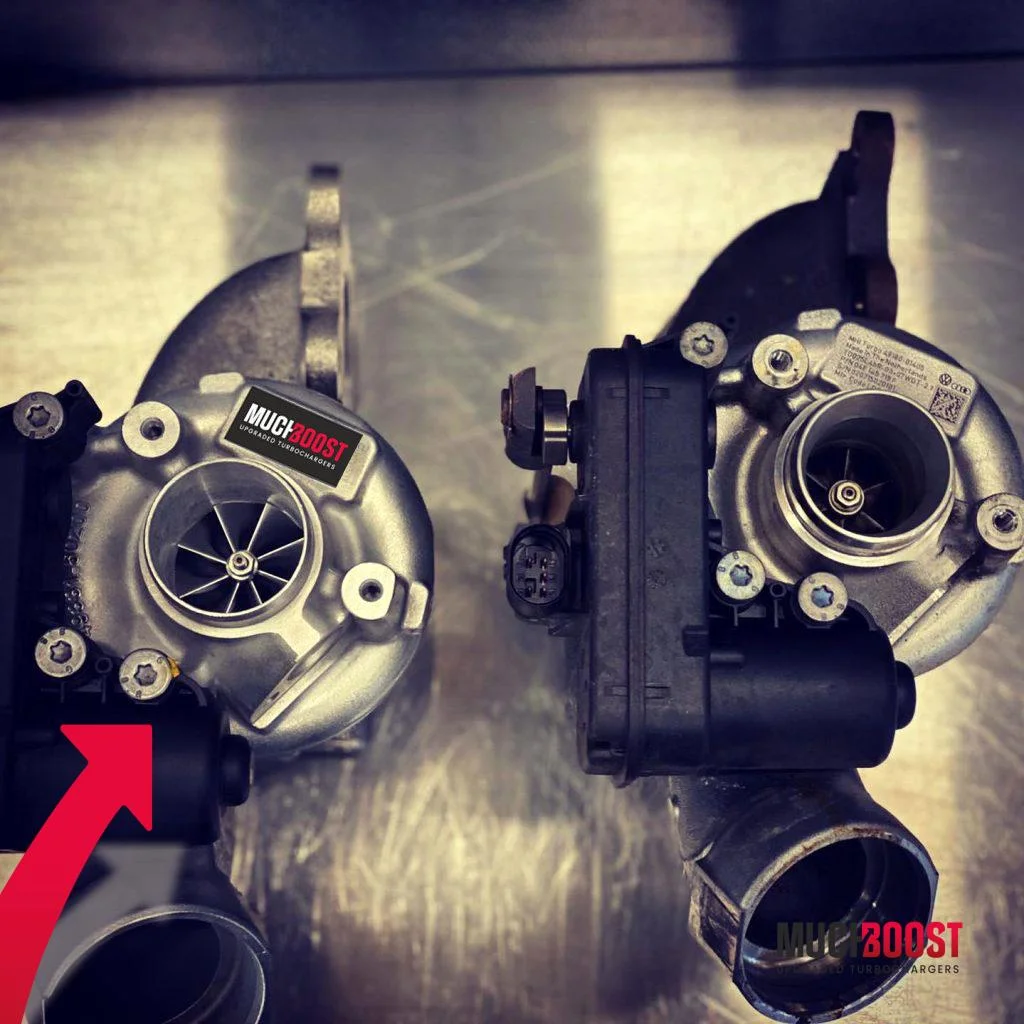

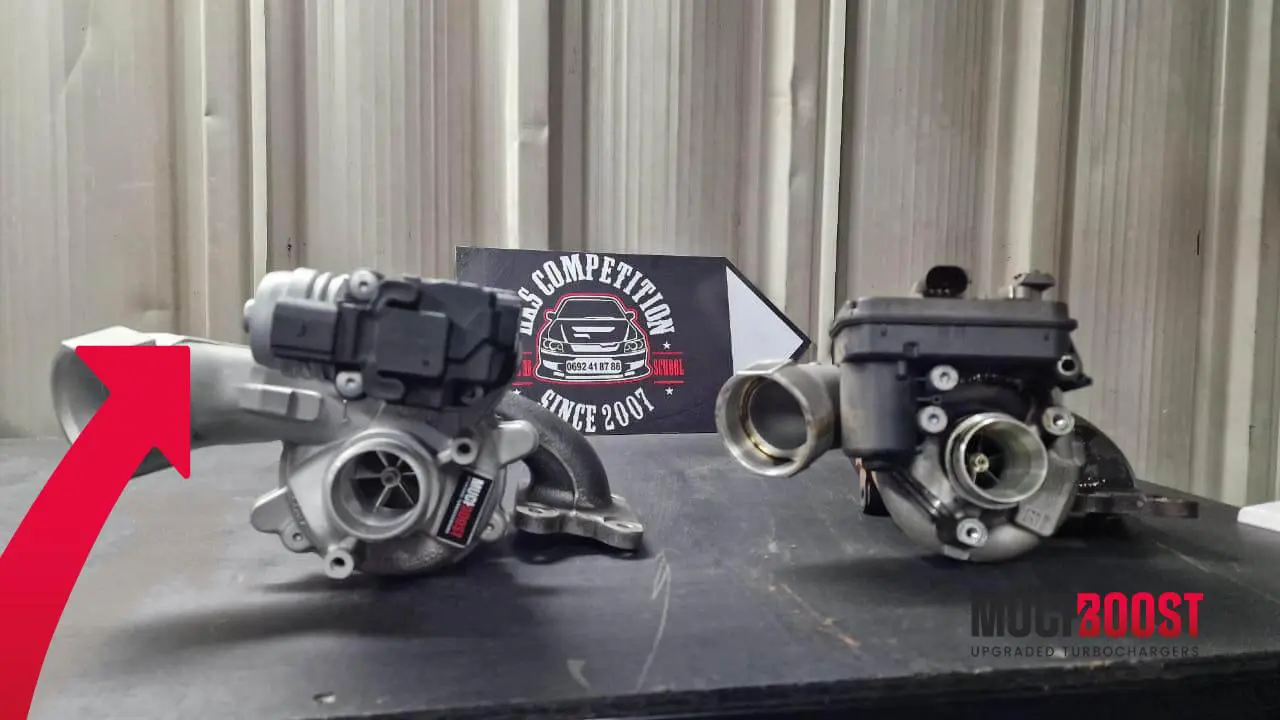

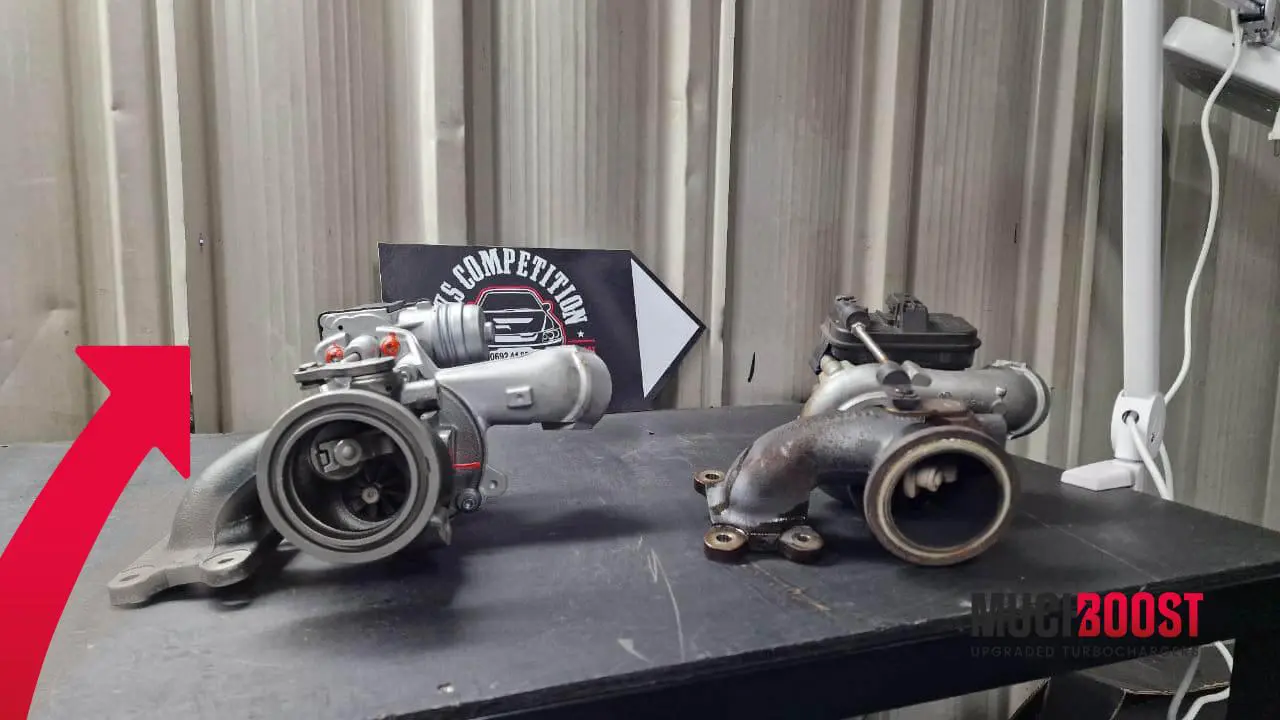

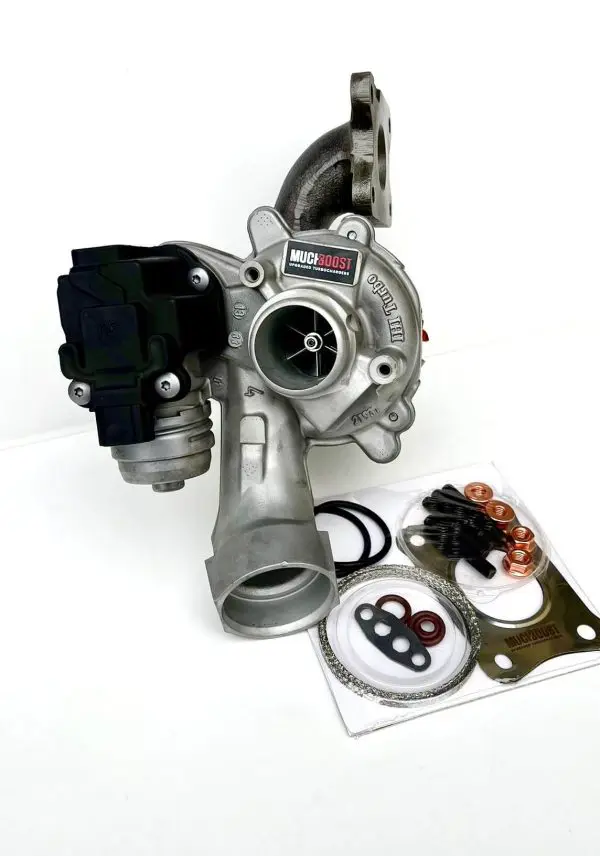

MuchBoost 1.4TSI EA211 Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel It is based on an original IHI/Mitsubishi, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A1 8X, Audi A3 8V1/8VK, Seat Alhambra II, Seat Ibiza IV, Seat Leon III, Skoda Octavia III, Skoda Rapid, Volkswagen Golf MK VII, Volkswagen Polo V, and others equipped with the 1.4TSI EA211 122-150HP engines.

The turbo delivers up to 229% power (158 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 3 modification options that allow you to reach anywhere from 220HP to 280HP.

MuchBoost EA211 1.4TSI 220

Upgraded turbocharger with an estimated ~220HP at the crank. Listo of modifications:

  • Precisely machined seal plates and compressor housing,
  • Genuine IHI/Mitsubishi compressor housing,
  • Genuine IHI/Mitsubishi bearing housing,
  • Genuine IHI/Mitsubishi exhaust manifold,
  • Upgraded journal bearings system that allows the turbo to hold more boost,

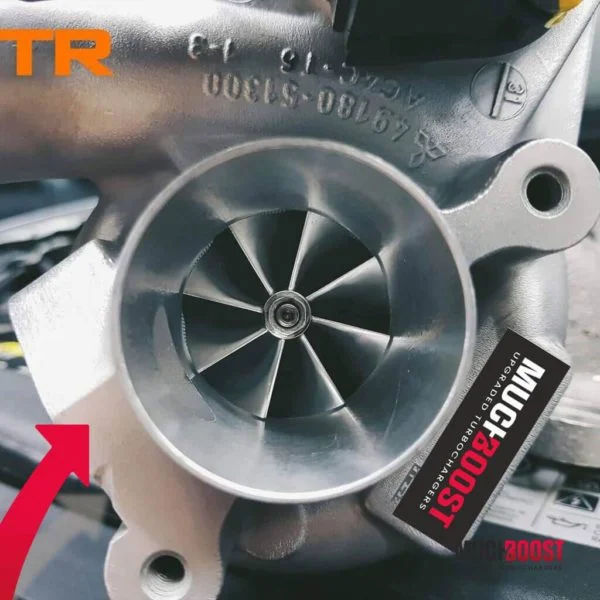

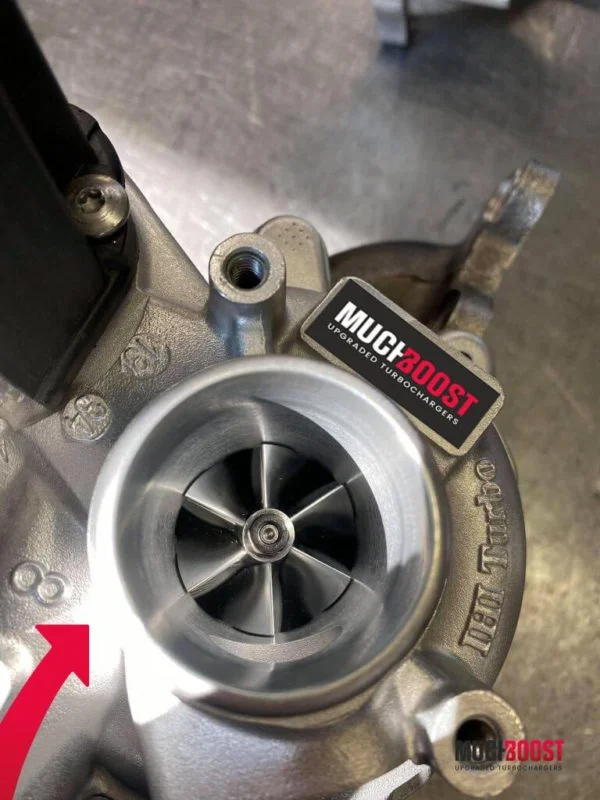

  • More efficient and larger Billet Compressor Wheels:6+6 blades for IHI
    8+0 blades for Mitsubishi

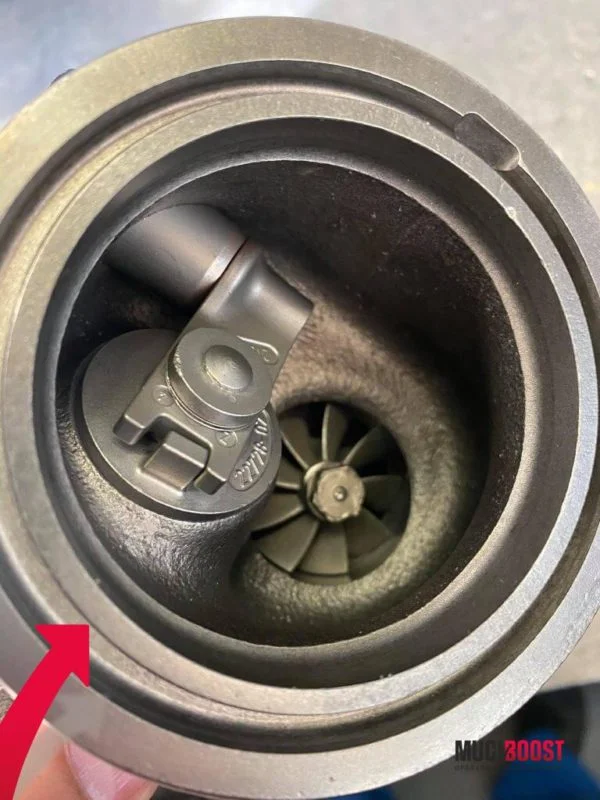

  • Clipped and Lightened genuine Turbine Wheel to help reduce backpressure,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost EA211 1.4TSI 250

Upgraded turbocharger with an estimated potential of ~250HP at the crank. Modifications compared to the 220 option are the same except:

  • Larger High-Flow 9 blades Turbine Wheel,
  • Precisely machined exhaust housing.
MuchBoost EA211 1.4TSI 280

Upgraded turbocharger with an estimated potential of ~280HP at the crank. Modifications compared to the 250 option are the same except:

  • Additionally enlarged Compressor Wheel.
Other Significant Modifications

To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.

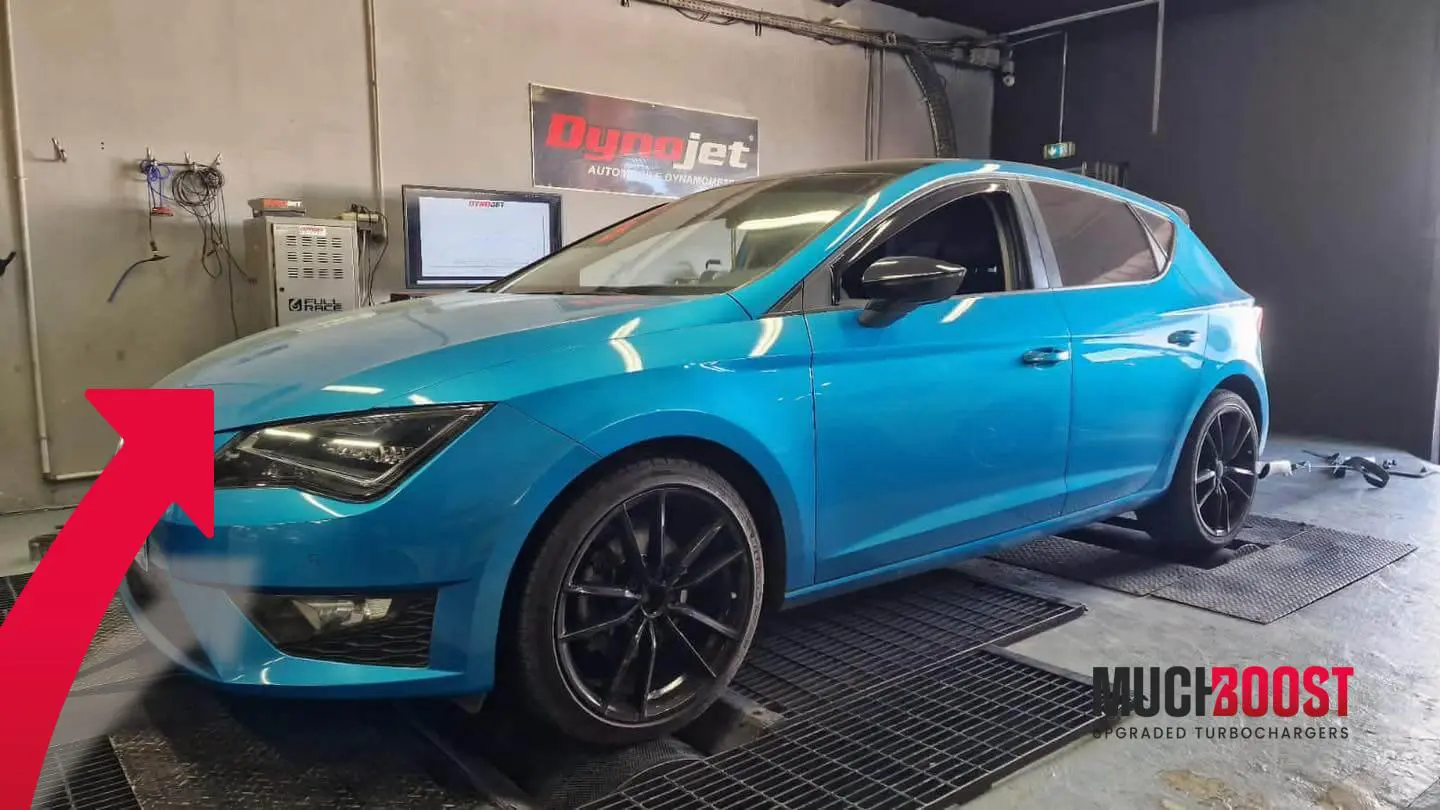

Example project

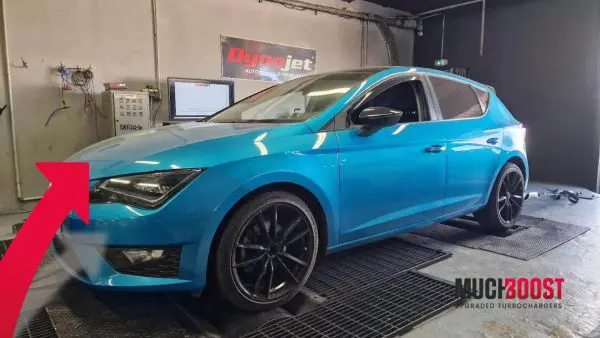

One of our clients managed to achieve 192 HP and 315 Nm of torque at the wheels. The car was also equipped with:

  • Custom DP,
  • Custom exhaust system,
  • Iridium spark plugs.

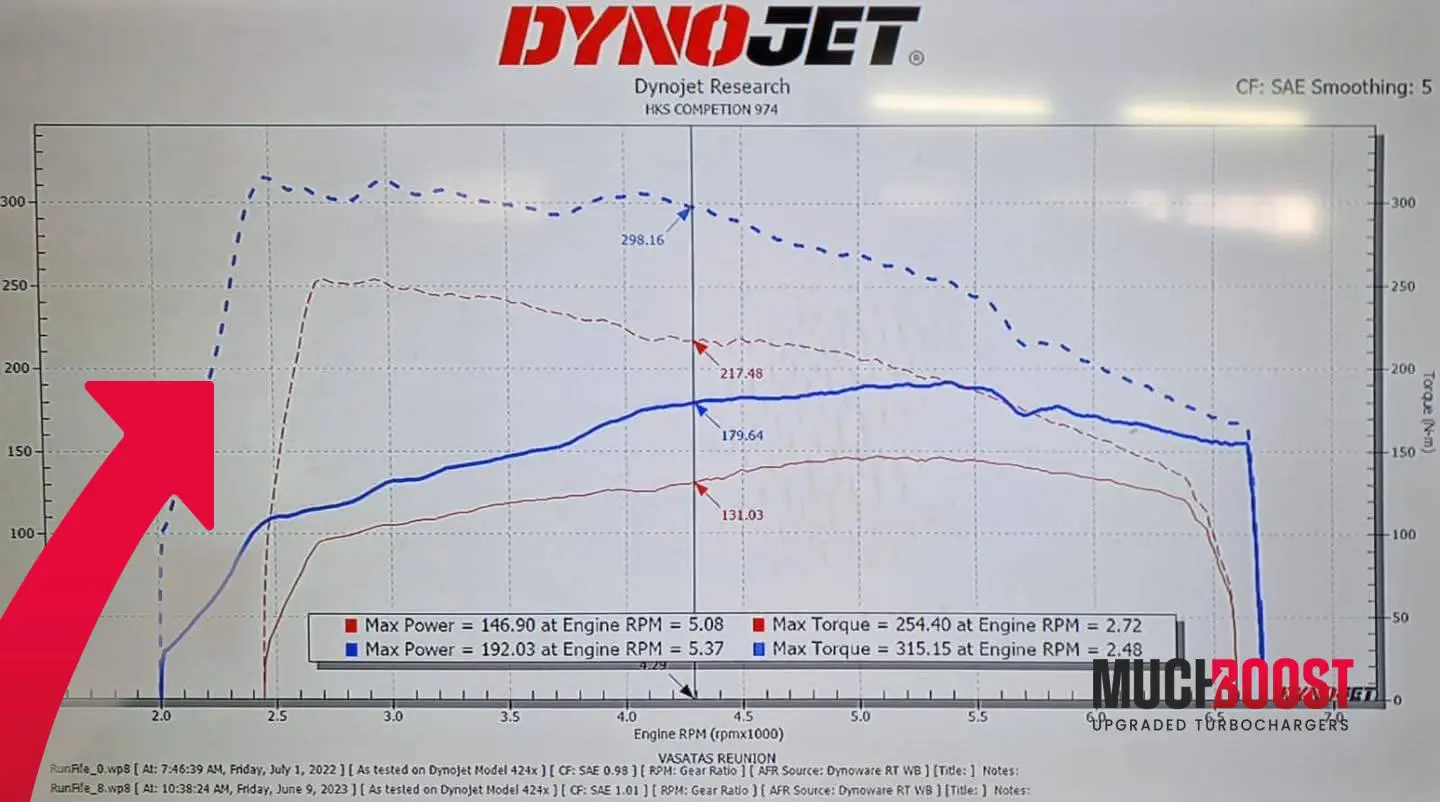

Dyno graph below.

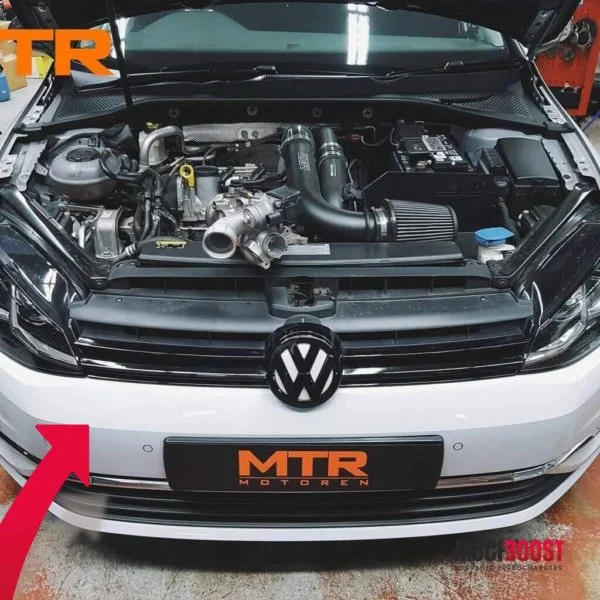

Another great example comes from one of our clients, who decided to put one of those turbos in their 1.2TSI engine. The results are great; they managed to produce 217 HP and 278 Nm of torque at the crank. The car was also equipped with:

  • 3″ unitronic downpipe with sport metallic cat
  • 2.5″ full exhaust with a rm motors elliptical back muffler
  • powerflex lower engine mount bush
  • mst performance air intake
  • aluminum charge pipe
  • ngk laser spark plugs
  • bar-tek performance ignition coils
  • enforced clutch disk
  • 312 mm front brakes

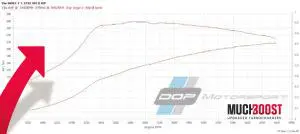

Please take a look at the dyno graph below.


A set of gaskets is included with every option you choose!


Cars

Audi A1 1.4TFSI 8X 122HP/140HP/150HP
Audi A3 1.4 TSI (8V1/8VK) 122HP/140HP/150HP
Seat Alhambra II 1.4 TSI 150HP
Seat Ibiza IV 1.4TSI 140HP/150HP
Seat Leon III 1.4TSI 122HP/150HP
Skoda Octavia III 1.4TSI 122HP/140HP/150HP
Skoda Rapid 1.4TSI 122HP
Skoda Yeti 1.4TSI 122HP
VW Beetle 1.4TSI 150HP
VW CC 1.4 TSI 150HP
VW Golf MK VII 1.4TSI 122HP/150HP
VW Golf MK VII GTE 204HP
VW Polo V 1.4 TSI 140HP/150HP
VW Sharan II 1.4 TSI 150HP
VW Tiguan 1.4TSI 150HP




Factory numbers

49180-01430,
49180-01275,
49180-01270,
49180-01240,
9V205

Engines

CMBA, CPVA, CZCA,
CPVB, CXSA, CZDD,
CZEA, CZDA, CHPB,
CXSB, CPTA, CUKB,
CAXA, CAXC, CFBA,
BMY, BWK, CAVA,
CDGA, CAVF, CAVD,
BLG, CAVE, CHPA,
CZDB,


OEM number

04E145721F,
04E145721B,
04E145713A,
04E145704P,
04E145721R,
04E145721RX,
04E145721RV,
04E145704R,
04E145704F,
04E145713N,
04E145713N,
04E145722G


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

220HP, 250HP, 280HP
