  • VNT18/20 BIG SHELL Upgraded Hybrid Turbocharger GT1860V 1.9/2.0TDI
+

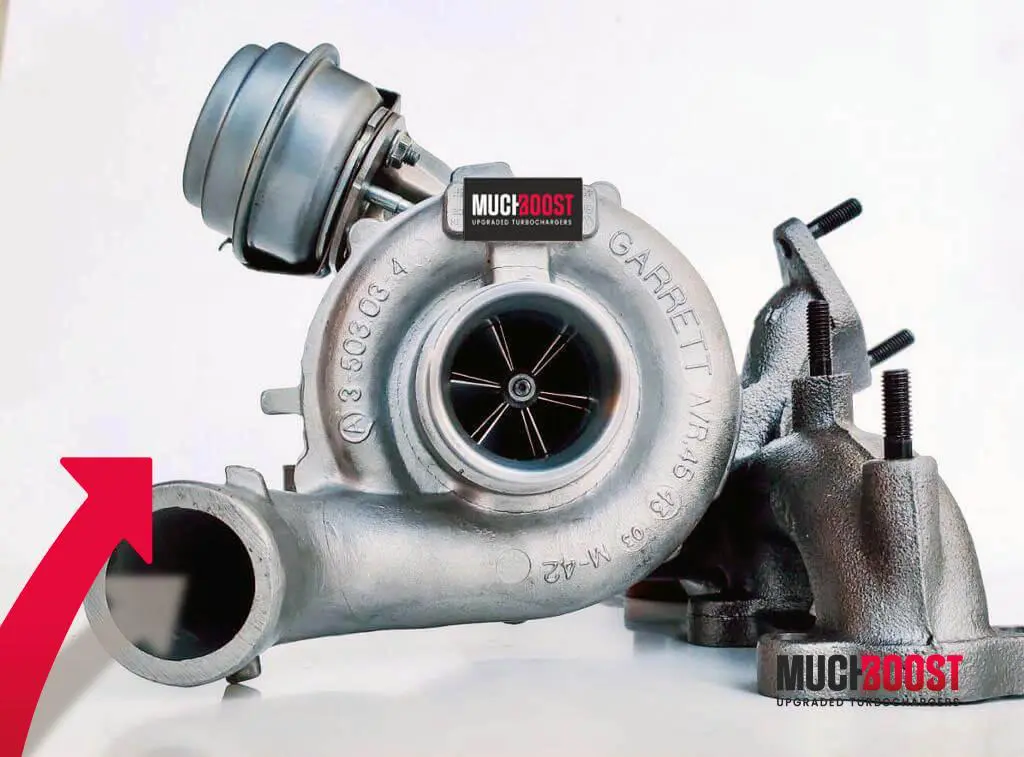

MuchBoost GT1860V VNT18/20 Upgraded Turbocharger with a Custom Cast/Billet Compressor Wheel and a GT18 Turbine Wheel. It is based on a genuine Garrett Turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with 1.9 & 2.0 TDI engines.

It fits the majority of transverse and longitudinal engines with the engine codes mentioned at the bottom of this page.

The turbo delivers up to 280HP which means it could be perfect for a faster daily driver, to gain some additional power.

Main Features
  • The potential 260HP-280HP,
  • Fast spool thanks to Custom Cast/Billet 60mm Compressor Wheel,
  • Low manifold pressures at high RPM,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • Machined GT20 compressor housing,
  • Modified GT18 Turbine Wheel,
  • Modified GT17 turbine housing,
  • Modified seal plate,
  • Upgraded Journal bearing system that allows holding more boost,
  • Bigger VNT18 (Variable Nozzle Turbine),
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines.
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with ~260-280HP at 30-32PSI of boost. In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Compressor WheelTop BoostTop HP
Cast32PSI260HP
Billet 10+033PSI270HP
Billet 6+634PSI280HP

The main difference between the wheel options:

  • 6+6 Blades – Better top range power, later spool,
  • 10+0 Blades – Faster spool.
Engine Codes

BKD, AZV, BKP, ECE, PDE, BSY, ALH, ASV, ASZ, BLT, BPX, AHF, ATD, AVK, AUY, AJM, BJB, BKC, BXE, BXF, BRU, AVF, AWX, BPW, BGW, BLB, BRE, BRF, BVF, BVG, BLB, BRE, BRF, BVF, BVG, BLB, etc.

If you don’t see your engine here, don’t hesitate to contact us.


A set of gaskets is included with every option you choose!

Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

COMPRESSOR WHEEL

CAST, BILLET 10+0, BILLET 6+6
