Do you want to get absolutely the most out of your engine? Muchboost has a solution for you!

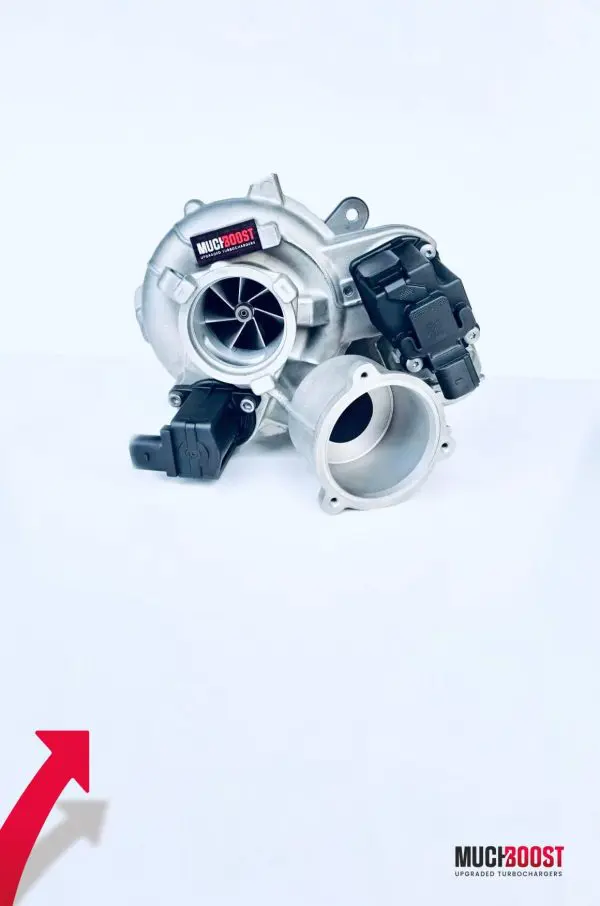

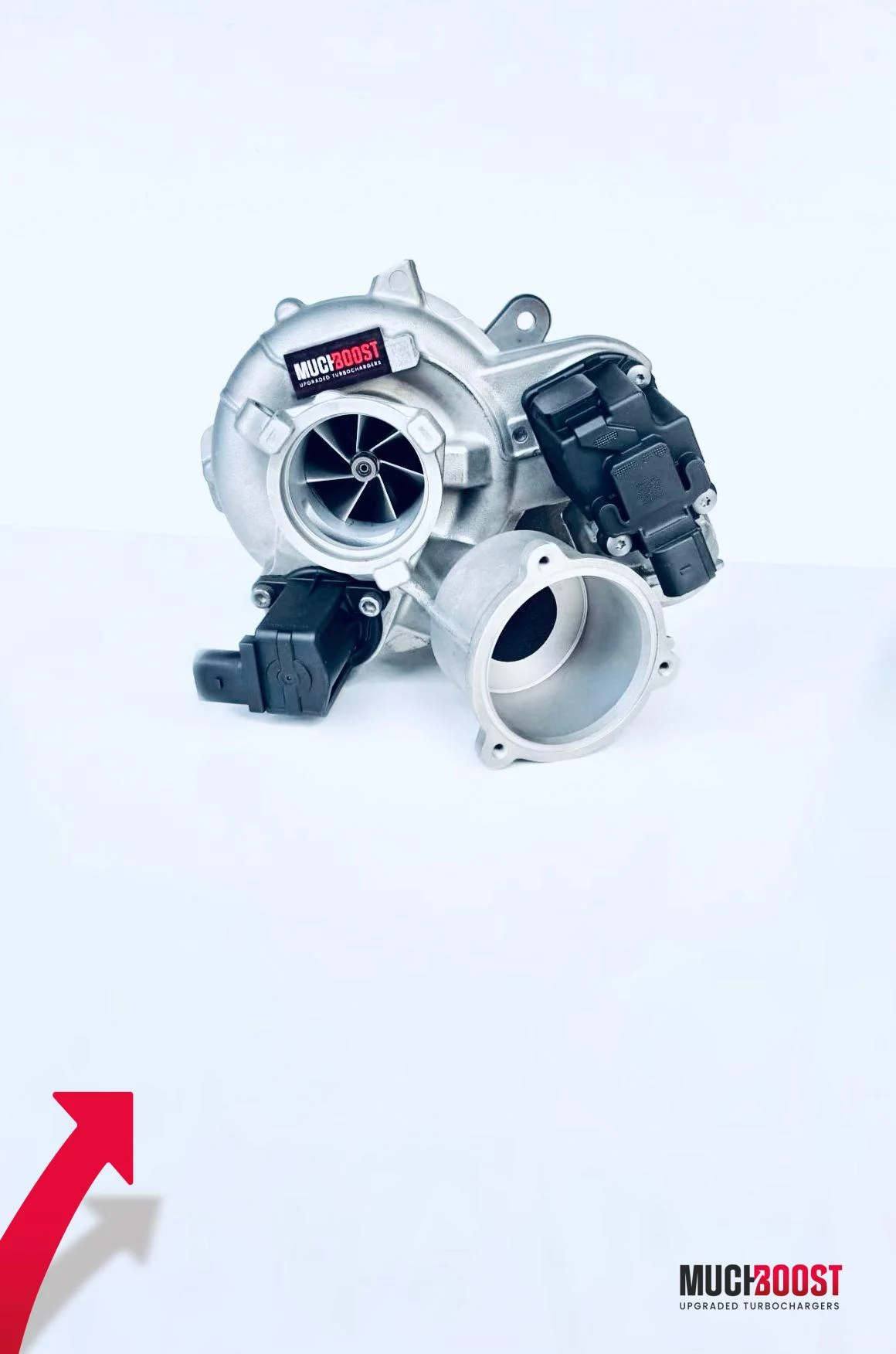

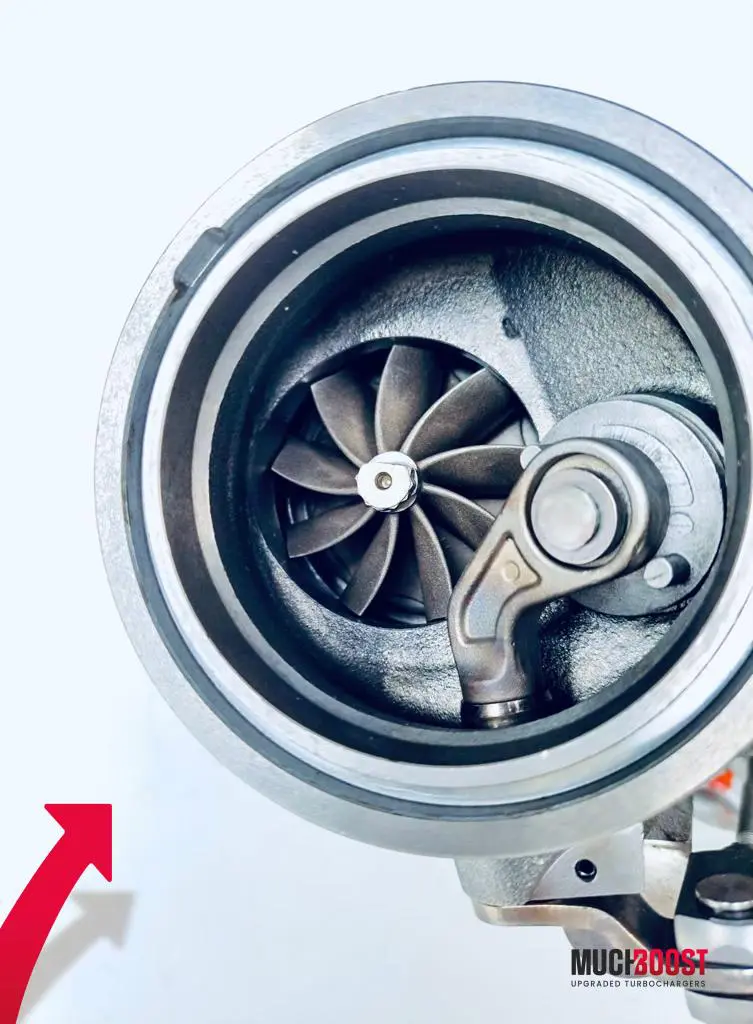

Muchboost IS38 2.0TFSI Hybrid Upgraded Turbocharger with a Custom Compressor Billet Wheel 6+6 or 7+7 blades and Enlarged High-Flow 8 or 9 blade Turbine Wheel (depending on the option). It is based on an original IHI turbocharger, which means that installation is 100% P&P. The turbocharger is meant to work with Audi S3 8V, Seat Leon Cupra, and VW Golf VII GTI/R with the 2.0TFSI 265HP-310HP engines.

The turbo delivers great power characteristics and has something to offer for anyone that’s interested in gaining more power from their daily driver or trying to get maximum performance from their fun weekend car. You don’t have to worry about being taken over anymore.

We have developed 3 modification options that allow you to reach anywhere from 380HP to 550+HP.

MuchBoost IS38 380

Upgraded turbocharger with an estimated ~380HP at the crank. List of modifications:

  • Upgraded journal bearing system that allows the turbo to hold more boost.
MuchBoost IS38 460

Upgraded turbocharger with an estimated ~460HP at the crank @1.6Bar. The bearings are also upgraded with this option. List of modifications:

  • Precisely machined seal plates and compressor housing,

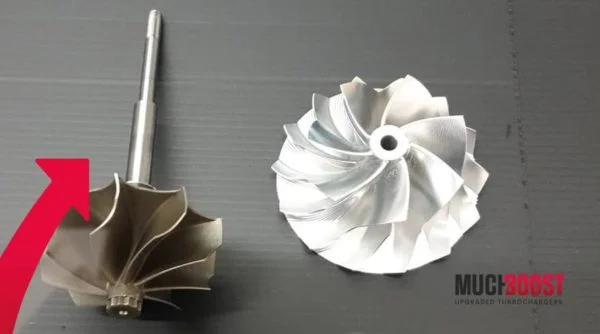

  • More efficient and larger Billet Compressor Wheel 6+6 blades,

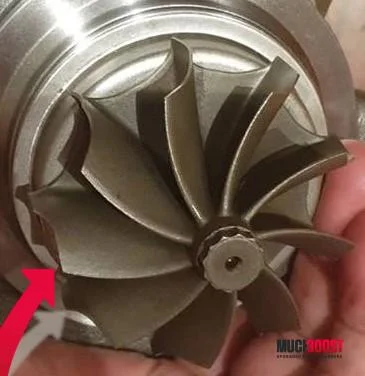

  • Enlarged and Lightened High-Flow 8 blade Turbine Wheel,
  • Genuine IHI IS38 compressor housing,
  • Genuine IHI IS38 exhaust manifold,
  • Genuine IHI IS38 bearing housing,
  • Original actuator and diverter valve,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Muchboost IS38 500

Upgraded turbocharger with an estimated potential of ~500HP at the crank @2.2Bar. Modifications compared to the 460 option are the same, except:

  • even larger Billet Compressor Wheel,
  • larger 9 blade Turbine Wheel to provide much more flow and lower exhaust temperatures with higher boost,
Example project

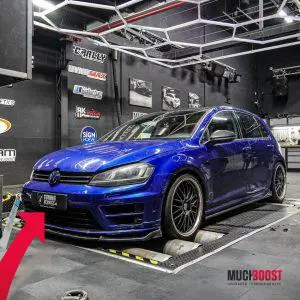

One of our clients managed to produce 482HP and 582Nm of torque at the crank with this turbo. The car was also equipped with:

  • Wagner Tuning intercooler
  • Vis motorsport hpfp
  • RacingLine Performance intake
  • Gt-innovation Multimap package
  • SACHS Performance Tuning upgrade clutch
  • Complete Car Service Soest – CCS Motorsport downpipe

Dyno graph below.

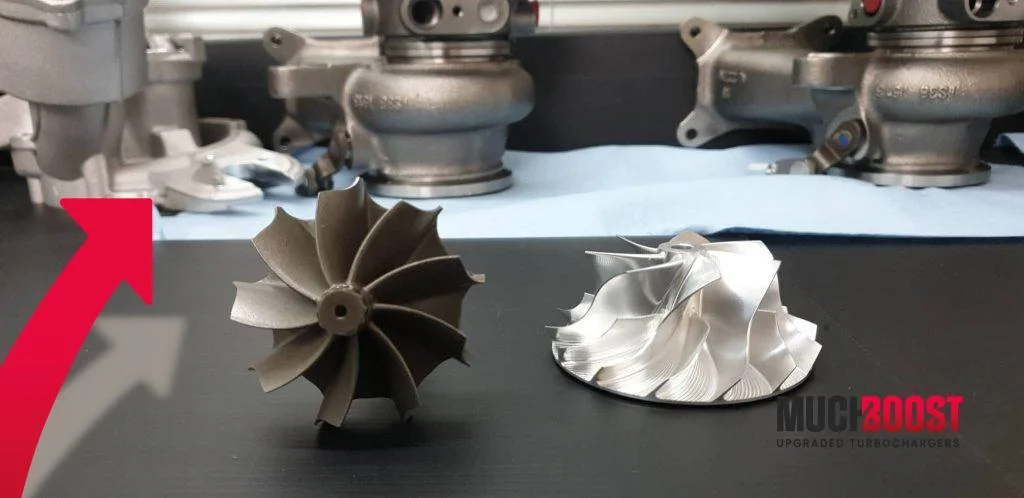

Muchboost IS38 550+

Upgraded Turbocharger with an estimated potential of ~550+HP at the crank @ 2.2Bar. Modifications compared to the 500 option are the same except:

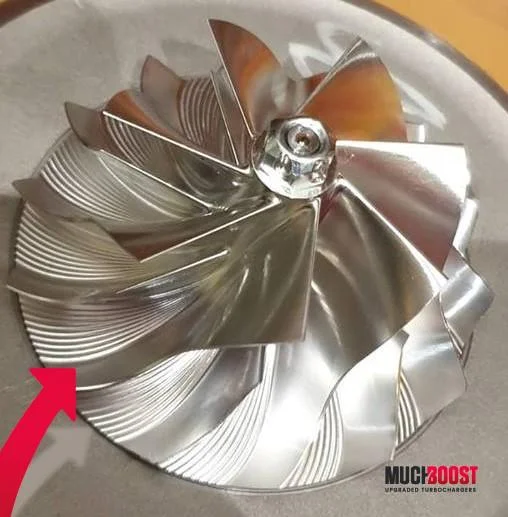

  • even larger 7+7 blades Billet Compressor Wheel.
Other Significant Modifications

To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.

You might also consider

EA888/2.0TFSI VW De-Cat/Sport-Cat Downpipe Golf VII R, Audi S3 8V Decat

Example Projects

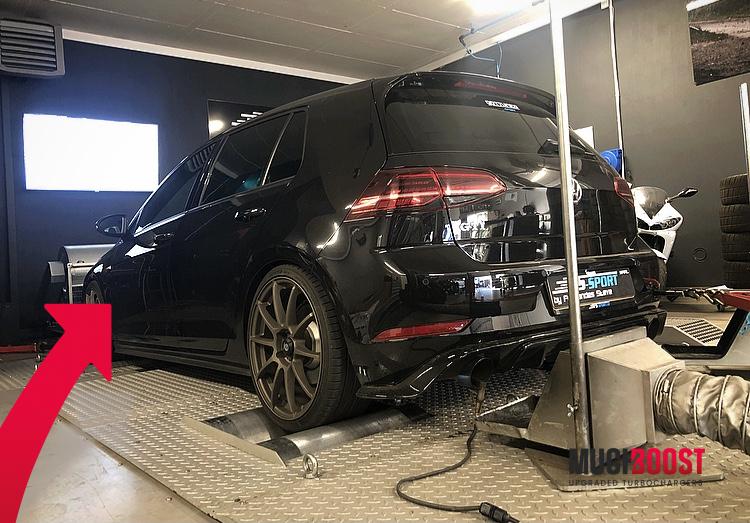

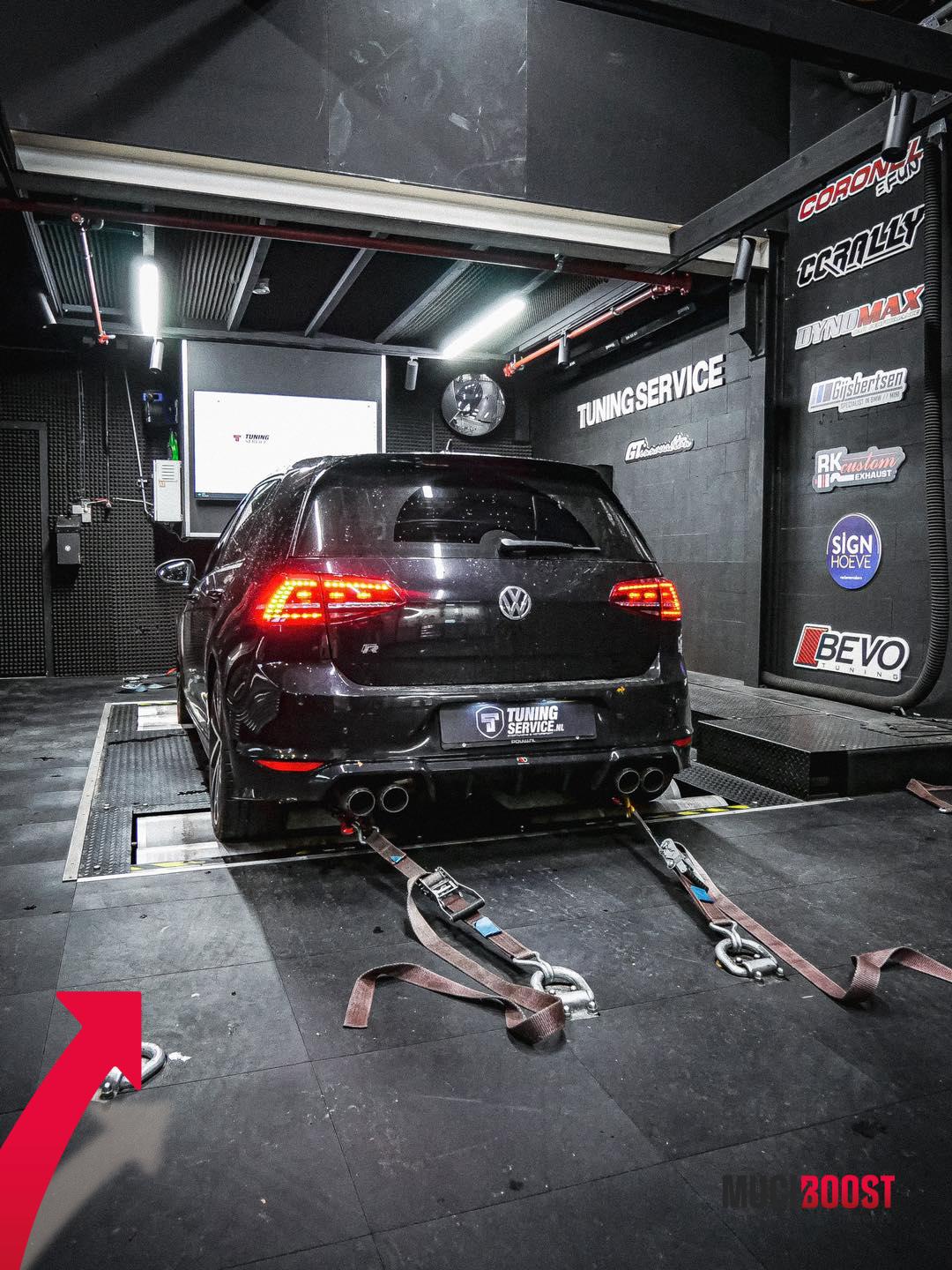

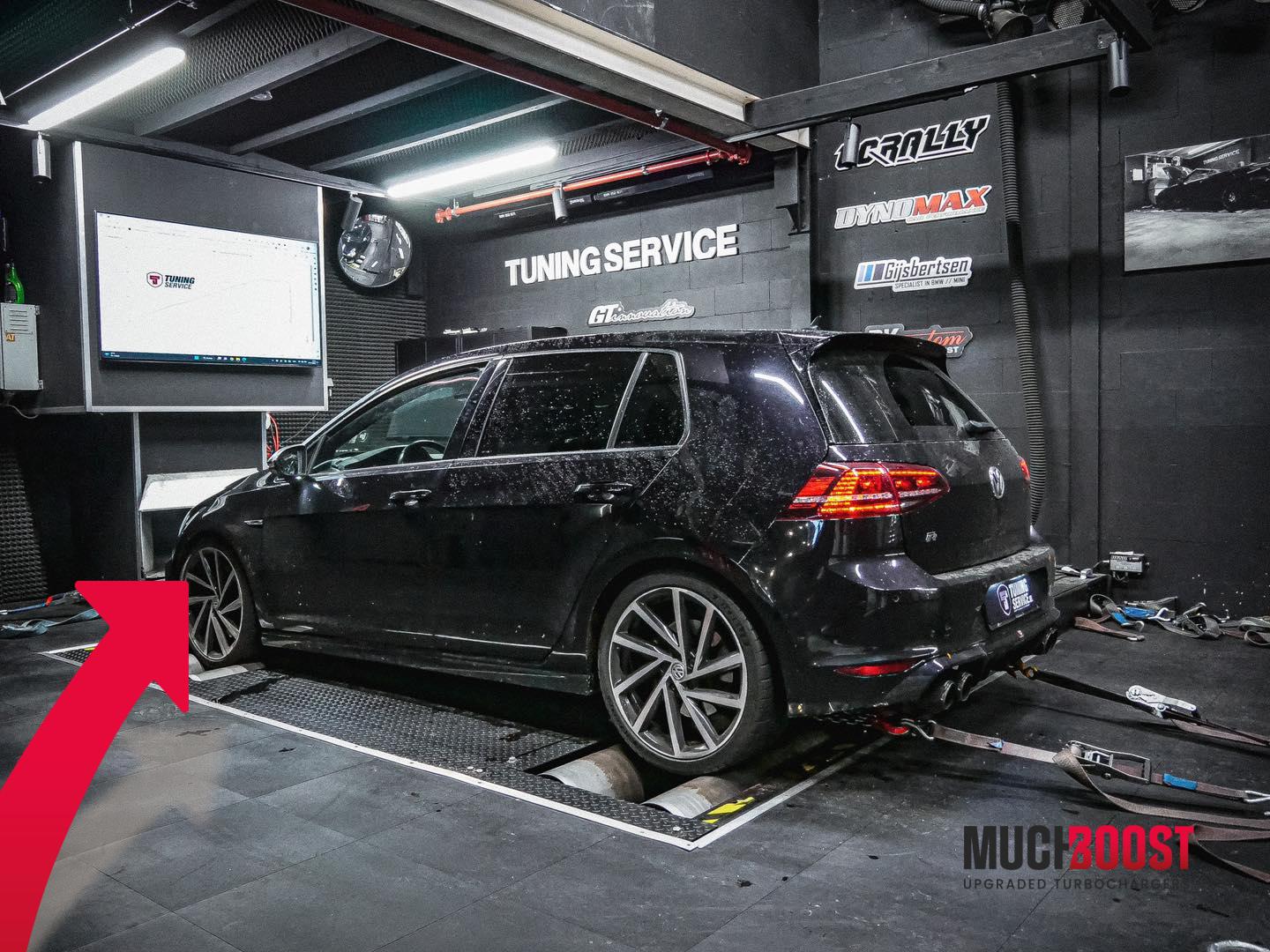

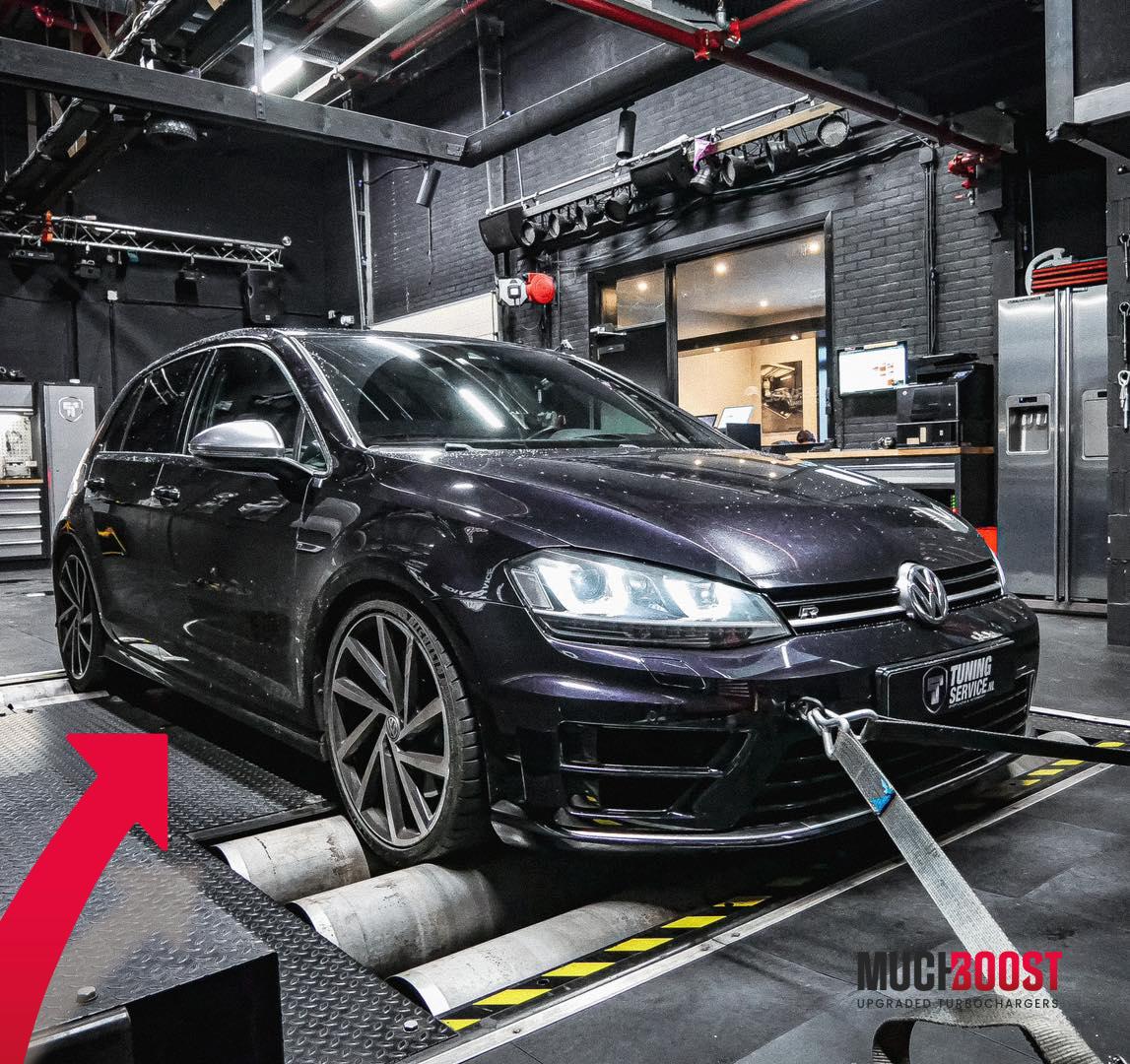

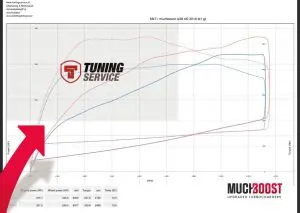

Volkswagen Golf MK7 R with our IS38 380 hybrid turbo was able to produce 375HP and 527Nm of torque.

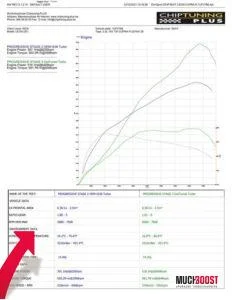

Dyno graph:

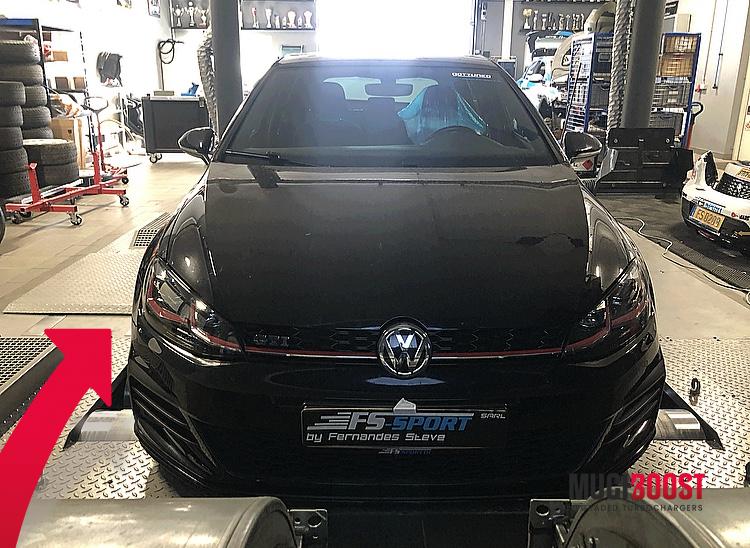

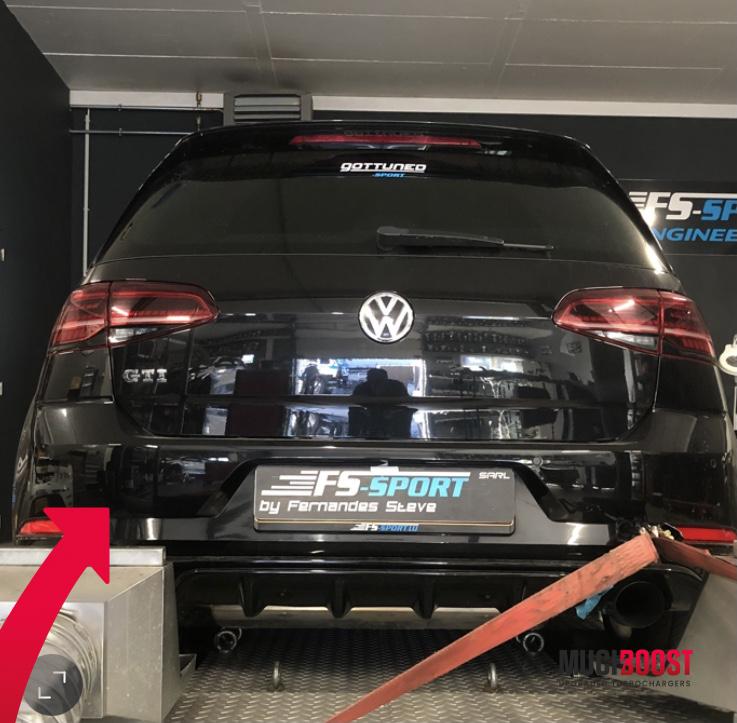

Volkswagen Golf MK7 GTI with the IS38 460 hybrid turbo made 409HP and 553Nm of torque. The car is equipped with:

  • HF Series Turbo inlet/outlet,
  • Wagner Tuning Intercooler,
  • Full turbo-back Miltek exhaust with 200c catalytic converter,
  • BarTek HPFP,
  • RacingLine Intake.

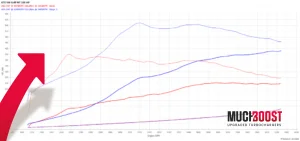

Dyno graph:

Next project with the IS38 500 turbo. Audi S3 8V managed to produce 483HP and 570Nm of torque. It was equipped with:

  • CTS Intake,
  • Wagner Intercooler,
  • De-Cat dump pipe,
  • Stock exhaust,
  • Small jet water meth injection,
  • 93 octane fuel.

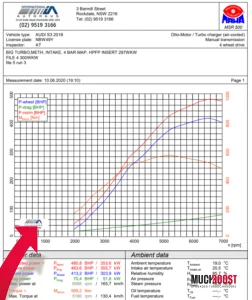

Dyno graph:

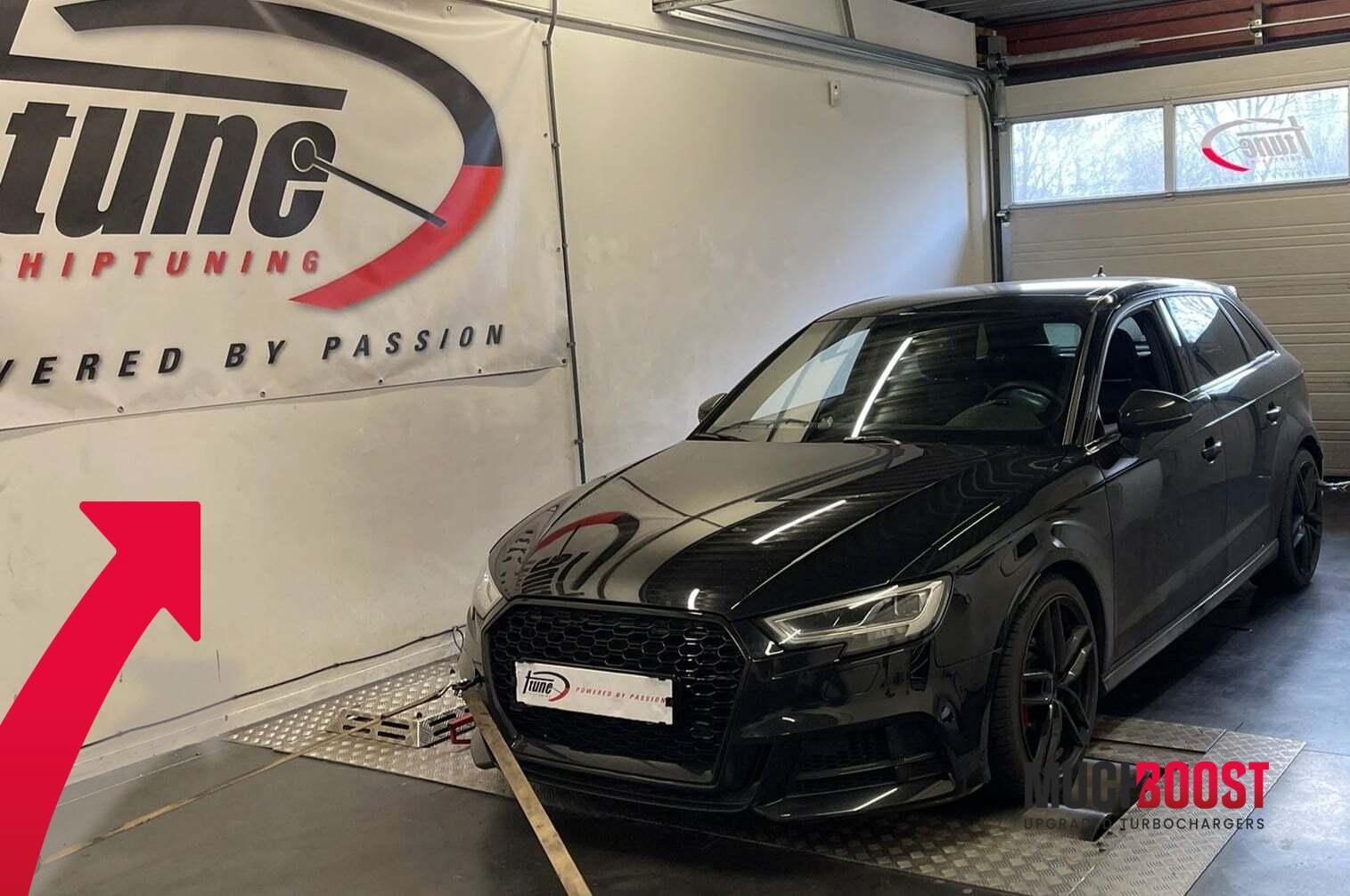

There was also another project with our IS38 500 Hybrid Turbo. An Audi S3 managed to produce 490HP and 580Nm of torque. List of modifications:

  • Muchboost IS38 500 Hybrid Turbo,
  • R600 Intake with turbo Inlet and Outlet pipes,
  • Loba HP20.3 HPFP,
  • Wagner intercooler kit,
  • De-Cat 3inch DP with a custom 3inch exhaust,
  • DSG and Engine Stage 3 turn by Ttune Chiptuning

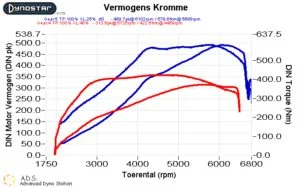

Dyno graph:

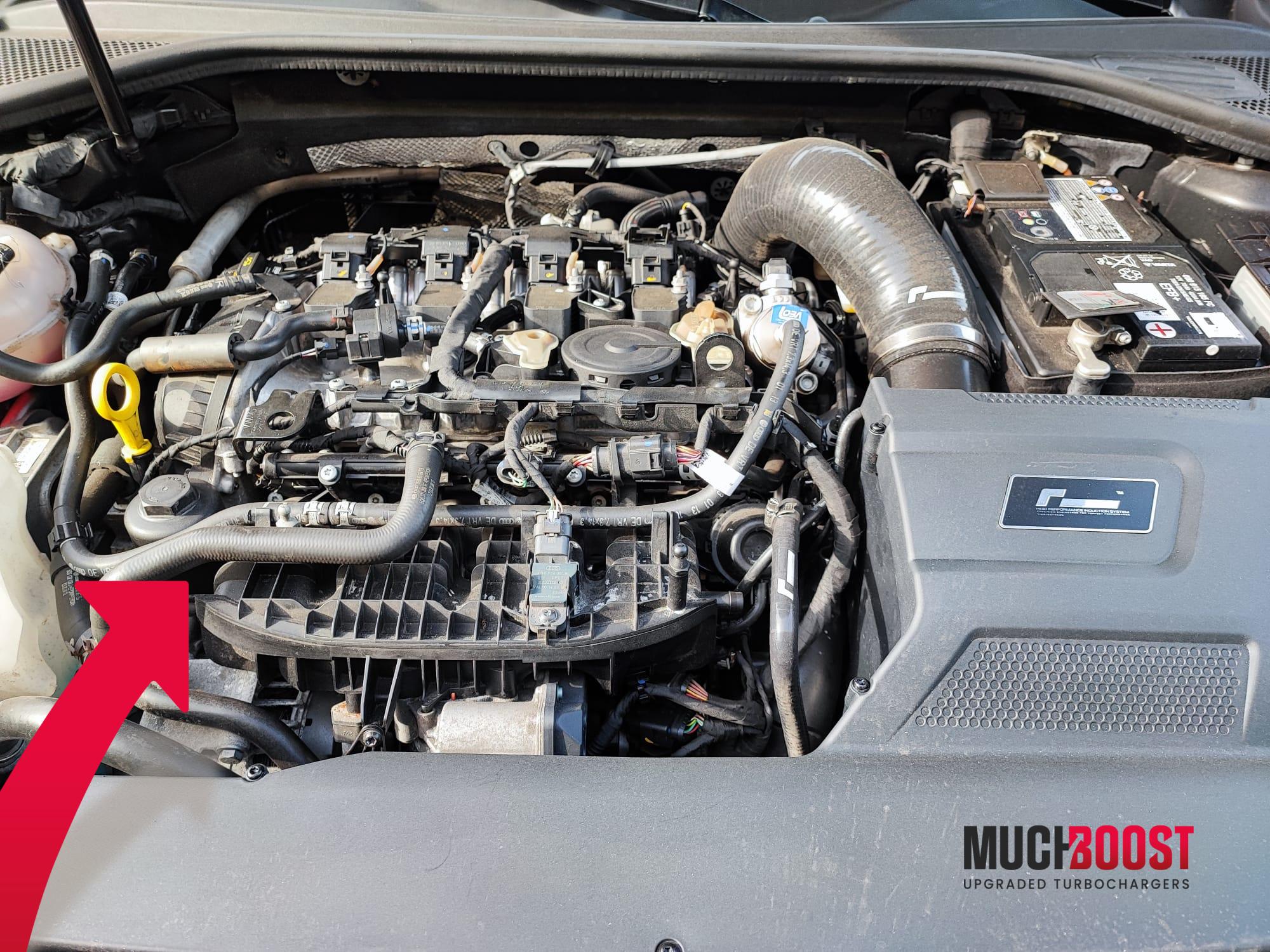

Another project with the IS38 550+ turbo this time. 2016 Seat Leon Cupra AWD managed to produce 516HP and 581Nm of torque. The car was equipped with:

  • VWR R600 full intake,
  • CTS low-pressure fuel pump,
  • Autotech high-pressure fuel pump,
  • Intercooler,
  • 3″ De-Cat exhaust,
  • Stage 3 progressive software on RON98,
  • GFB DV+ diverter valve.

Dyno graph:





You might also consider

EA888/2.0TFSI VW De-Cat/Sport-Cat Downpipe Golf VII R, Audi S3 8V Decat


A set of gaskets is included with every option you choose!


Engines

CJXB, CJXC, CJXG, DJHA, DNUE, CJXF

Cars

Audi S3 8V 300HP
Audi S3 8V 310HP
Seat Leon Cupra 2.0 TFSI 265HP
Seat Leon Cupra 2.0 TFSI 280HP
VW Golf VII GTI 220HP
VW Golf VII R 300HP


OEM numbers

06K145722H


Factory numbers

06K145722H




(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
  1. The warranty is 12 months without the limit of mileage.
  2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
  3. Every parcel is fully insured.
  4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
  5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
  6. During placing your order, please provide information as follows:
  • the engine code,
  • the car model,
  • the stock power,
  • the VIN number

These details are helpful to make the turbo correctly.

POWER

380HP, 460HP, 500HP, 550+HP
