  • OM651 2.2CDI Hybrid Bi-Turbo Upgrade Mercedes C-Class, E-Class, S-Class, GLK, Sprinter, VIano, Vito
+
Add to Wishlist
Add to Wishlist

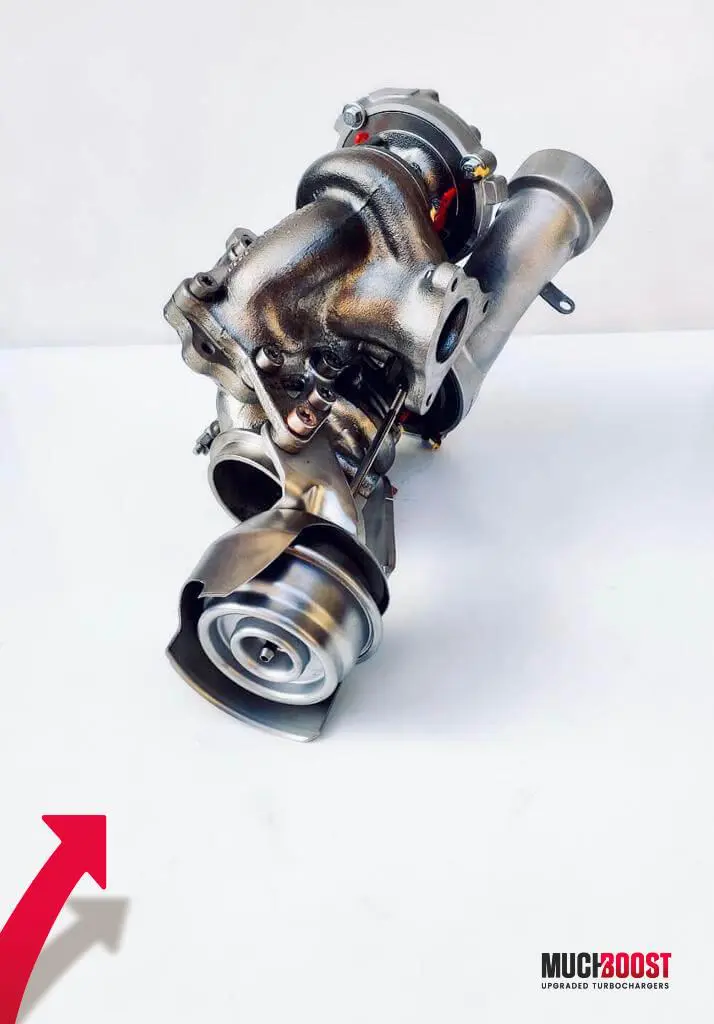

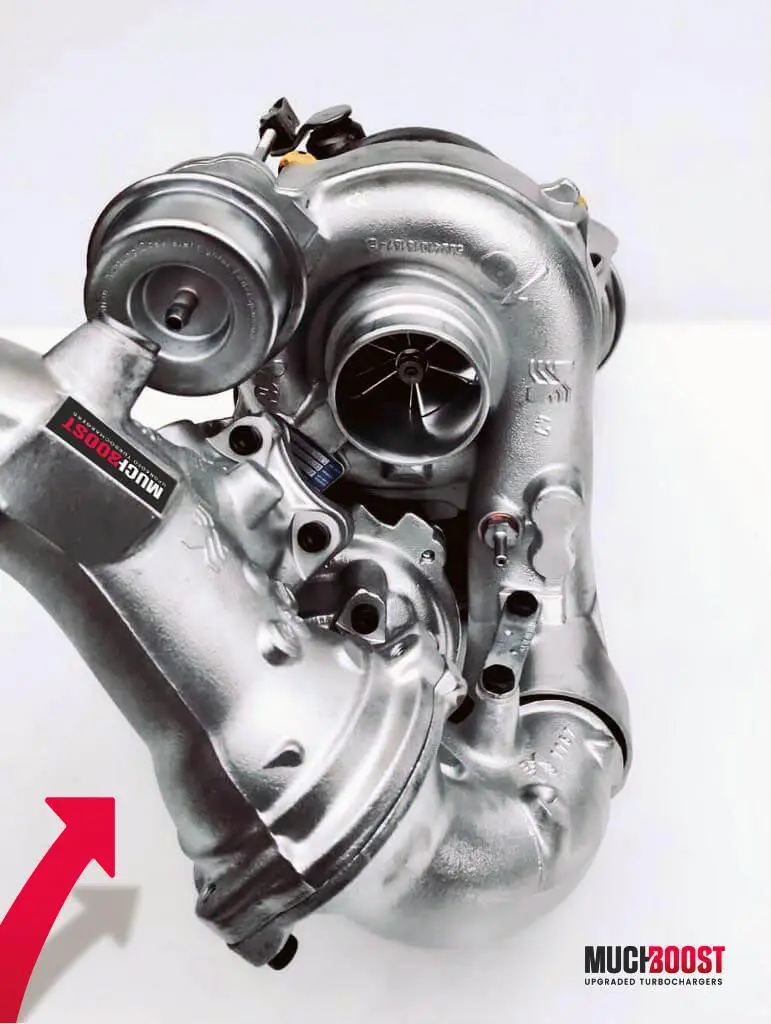

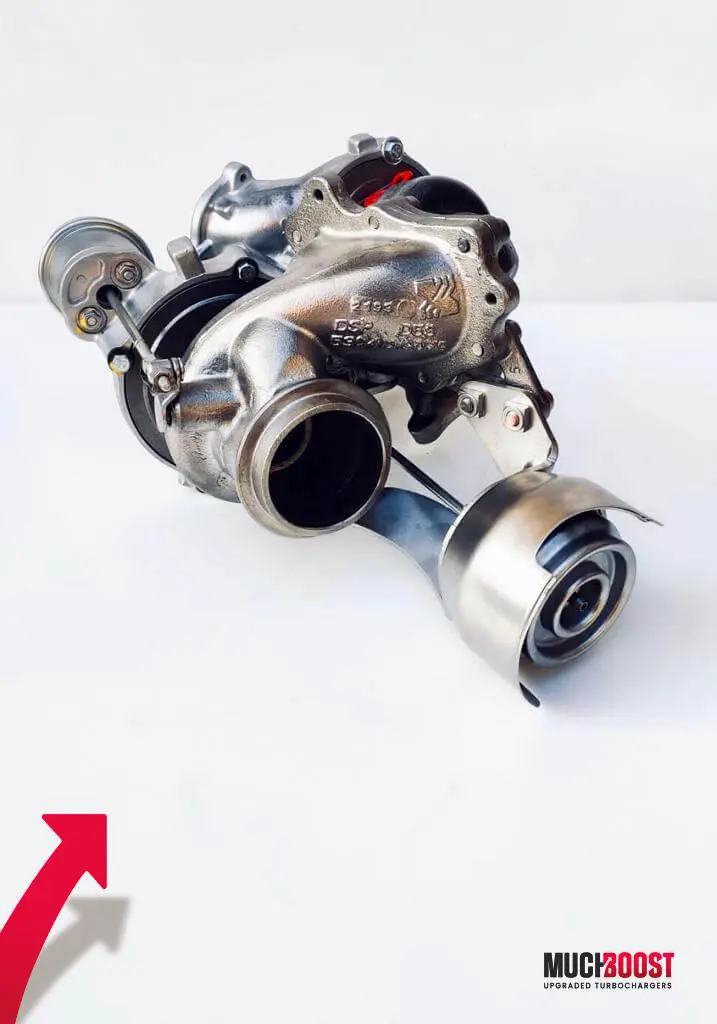

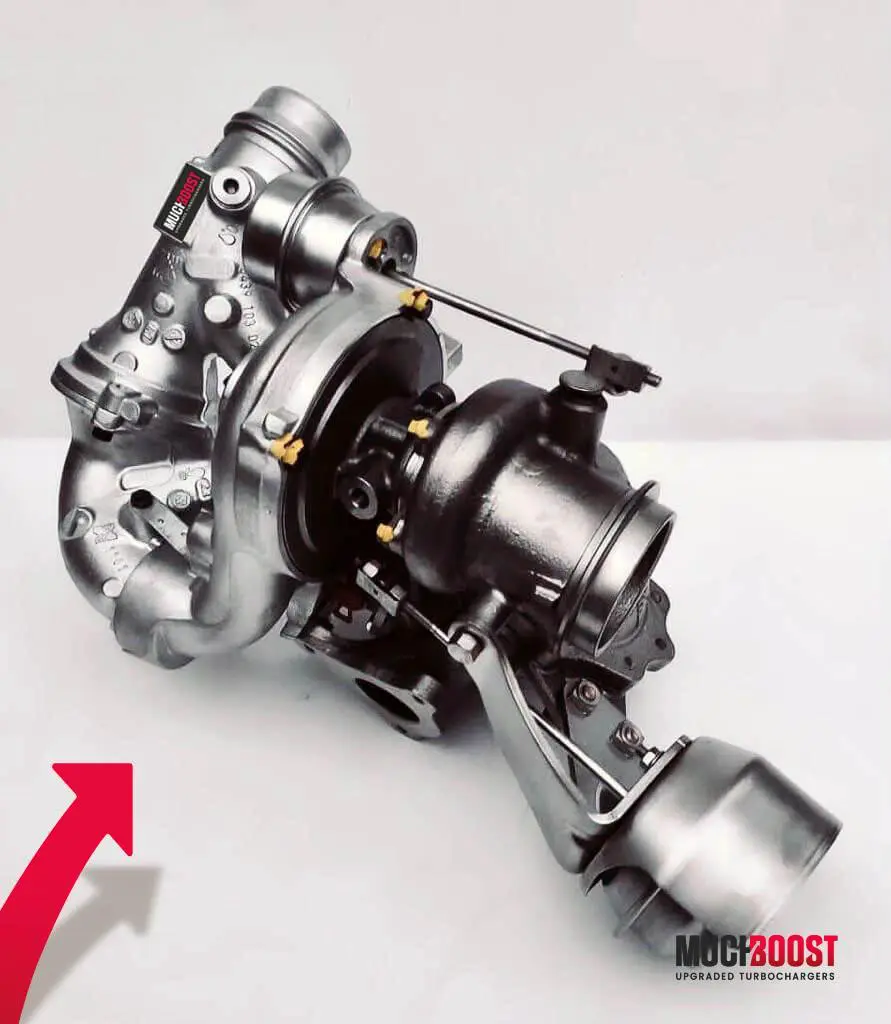

MuchBoost OM651 BiTurbo Upgraded Turbochargers with a Custom Billet Compressor Wheel 6+6 Blades, and Clipped and Lightned/Enlarged High-Flow 9 Blades Turbine Wheel. They are based on original BorgWarner turbochargers, which means that the installation is 100%P&P. The turbocharger is meant to work with Mercedes Benz C-Class, E-Class, S-Class, GLK-Class, Sprinter, Viano, and Vito with an OM651 Bi-Turbo engine.

The turbo delivers up to 202% power (167 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 280HP to 330HP.

MuchBoost OM651 Bi-Turbo 280

Upgraded turbocharger with an estimated ~280HP at the crank. List of modifications:

Small Turbo:

  • The dimensions are the same,
  • Turbo is fully refurbished

Big Turbo:

  • Precisely machined seal plates and compressor housing,
  • Genuine BorgWarner compressor housing,
  • Genuine BorgWarner bearing housing,
  • Genuine BorgWarner exhaust manifold,
  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • Genuine BorgWarner actuator

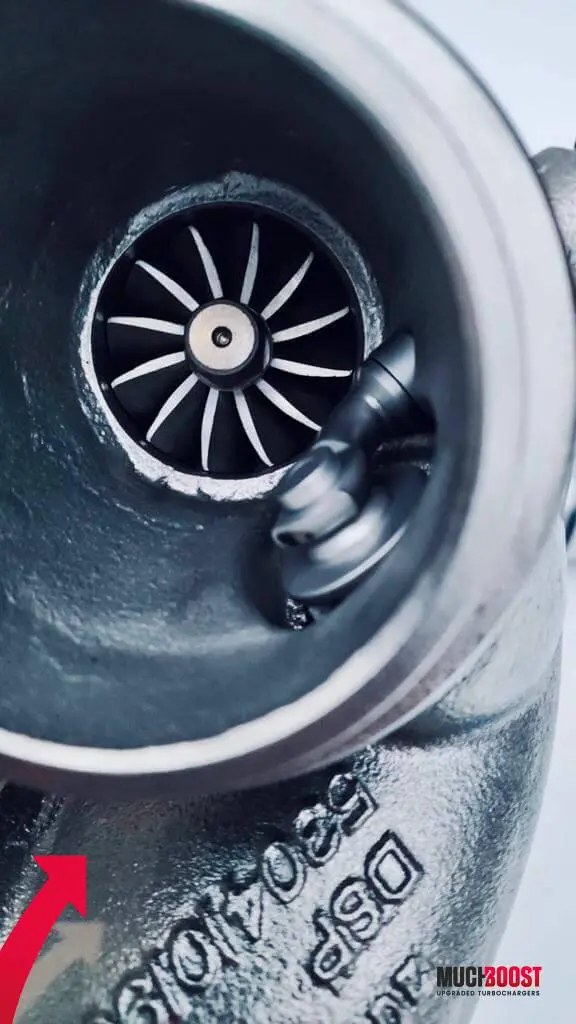

  • More efficient and larger Billet Compressor Wheel 6+6 Blades,

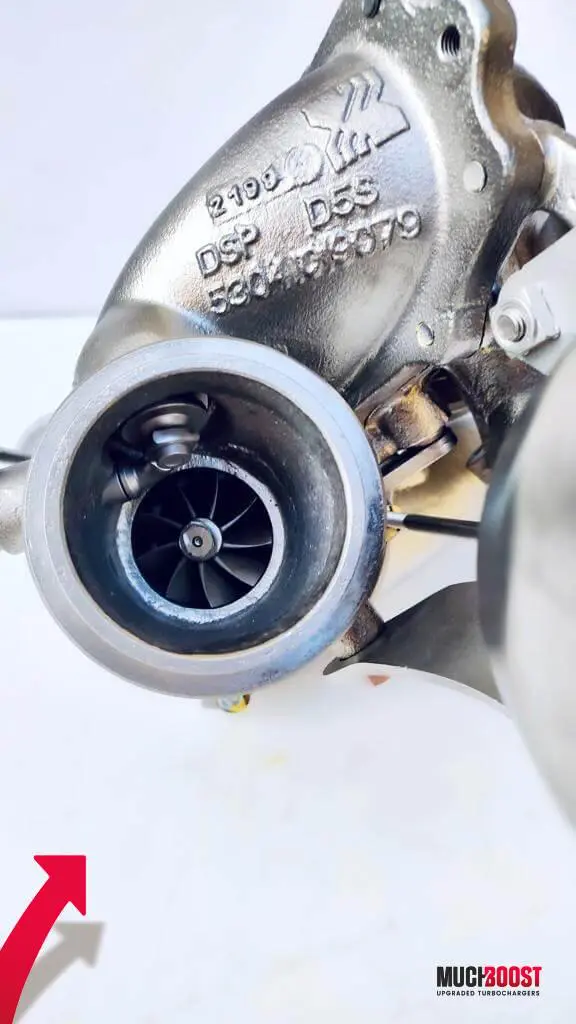

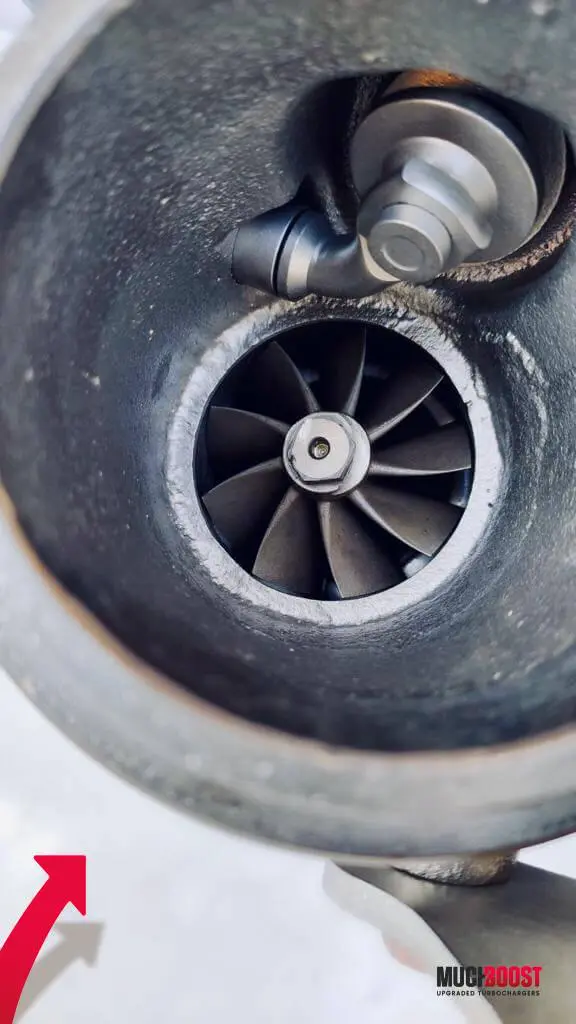

  • Clipped and Lightened genuine Turbine Wheel,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost OM651 Bi-Turbo 330

Upgraded turbocharger with an estimated potential of ~330HP at the crank. Modifications compared to the 280 option are the same except:

  • Bigger Compressor Billet Wheel,
  • Larger High-Flow 9 blades Turbine Wheel,
  • Precisely machined exhaust housing.
Other Significant Modifications

To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.


A set of gaskets is included with every option you choose!


Cars

Mercedes C-Class 2.2 220/250CDI W204 170/204HP
Mercedes E-Class 2.2 220/250CDI W212 170/204HP
Mercedes S-Class 2.2 250CDI W221 204HP
Mercedes GLK-Class 2.2 220CDI X204 170HP
Mercedes Sprinter II 2.2 216/316/416/516CDI 163HP
Mercedes Viano 2.2 CDI 163HP
Mercedes Vito 2.2 116CDI W639 163HP


Factory numbers

1000 988 0019
1000 970 0019
1000 970 0007
1000 988 0076
1000 970 0076
1000 988 0071
1000 970 0071
1000 970 0081
1000 988 0074
1000 970 0074
1000 988 0036
1000 970 0036

Engines

OM651 DE 22 LA


OEM number

A6510904980
6510904980
6510904180
6510903880
6510903480
6510903280
6510902380
6510901980
A6510906180
A651090618080
A6510906780
A6510906280
A6510906280
6510900980
A6510906080
A651905780



Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

280HP, 330HP
