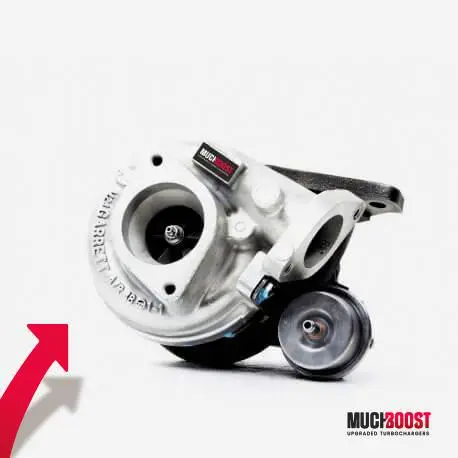

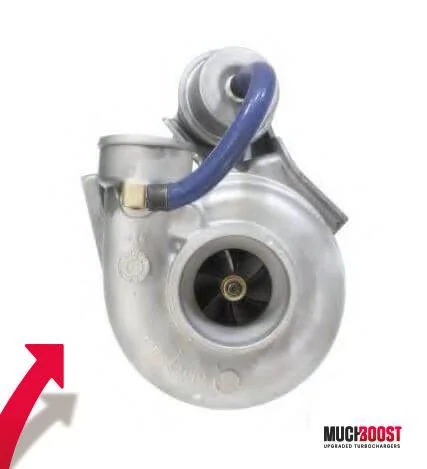

MuchBoost 2.8TD Upgraded Turbocharger with Enlarged Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on a genuine Garrett turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with Nissan Patrol IV Y60 and Patrol V with the 2.8TD 115-129HP engine.

The turbos deliver up to 208% of stock power (125HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.

We have developed 2 modification options that allow you to reach anywhere from 200HP to 240HP.

MuchBoost Y60/Y61 200

Upgraded turbochargers with an estimated ~200HP at the crank. List of modifications:

  • Precisely machined seal plates and compressor housing,
  • More efficient and larger Billet Compressor Wheel 11+0 blades,
  • Upgraded journal bearing system that allows the turbo to hold more boost,
  • Clipped and Lightened Turbine Wheel,
  • Genuine Garrett compressor housing,
  • Genuine Garrett exhaust manifold,
  • Genuine Garrett bearing housing,
  • Original reinforced actuator,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost Y60/Y61 240

Upgraded turbochargers with an estimated potential of ~240HP at the crank. Modifications compared to the 200 option are the same except:

  • Enlarged Compressor Billet Wheel,
  • Larger Turbine Wheel,
  • Precisely machined exhaust housing.
Other significant modifications

In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

A set of gaskets is included with every option you choose!


Cars
Nissan Patrol 2.8 TD Y60 – 115HP
Nissan Patrol 2.8 TDI Y61 – 129HP


Factory numbers
452022-0001
465941-0005
701196-5007S
701196-0001
Engines

RD28T 160/GR-Y60/260
RD28TI Y61


OEM number
1441122J04
1441122J02
1441122J01
14411G9900
14411VB300
14411VB301


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.



STOCK CAR

PATROL Y60, PATROL Y61

POWER RANGE

200HP, 240HP
