TD05-20G/TD06-25G Hybrid Turbo Upgrade Subaru Impreza WRX STI, WRX Turbo, WRXR8
1449,80 € – 2200,80 €
In Stock
MuchBoost TD05-20G/TD06-25G Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Subaru Imprezas with the EJ 220-300HP engines. The turbo delivers up to 218% power (260 extra HP) over the factory specs. It […]
MuchBoost TD05-20G/TD06-25G Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Subaru Imprezas with the EJ 220-300HP engines.
The turbo delivers up to 218% power (260 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
We have developed 2modification options that allow you to reach anywhere from 420HP to 480HP.
MuchBoost EJ 420
Upgraded turbocharger with an estimated ~420HP at the crank. List of modifications:
- Upgraded journal bearings system that allows the turbo to hold more boost,
- Genuine Hella electronic actuator

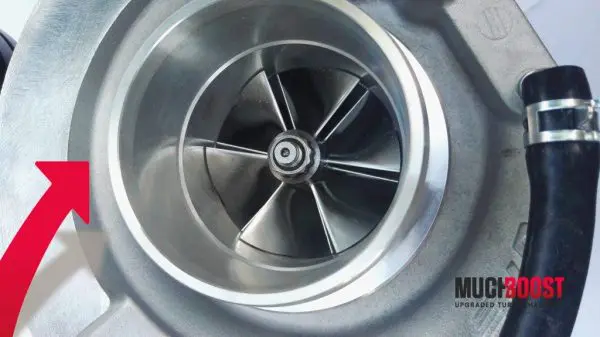

- More efficient and larger Billet 20G KTS Compressor Wheel,

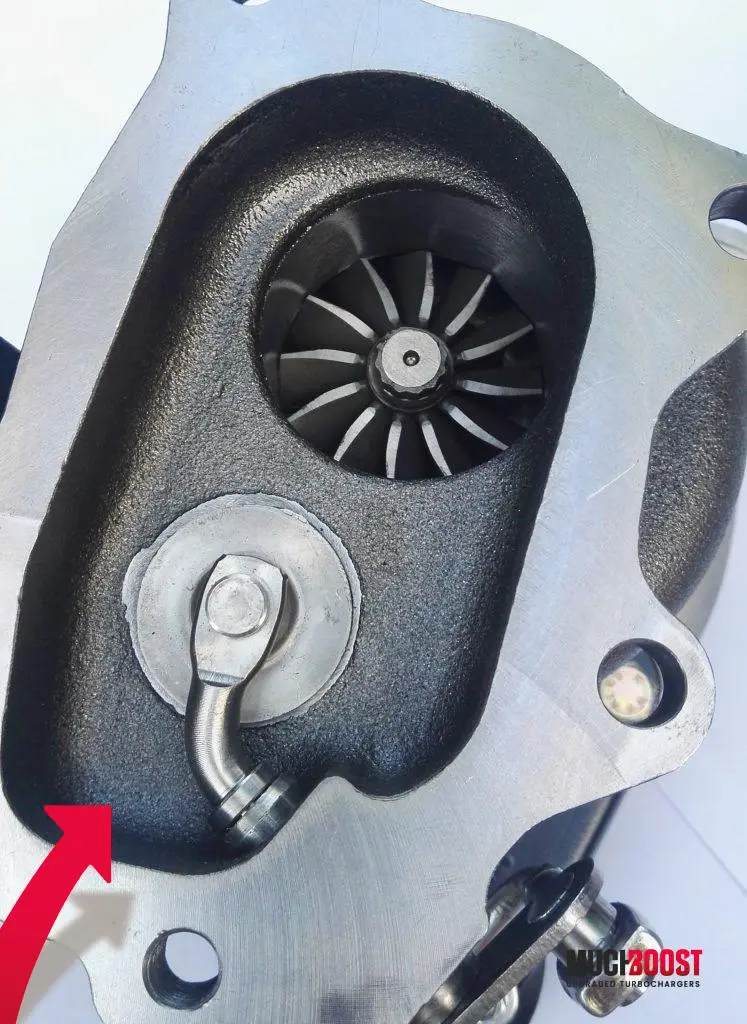

- Clipped and Lightened Bigger TD05 Turbine Wheel,
- Genuine compressor housing,
- Genuine bearing housing,
- Genuine exhaust manifold,
- Genuine DV,
- Precisely machined exhaust housing,
- Reinforced actuator,
- Dynamically balanced,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost EJ 480
Upgraded turbocharger with an estimated potential of 480HP at the crank. Modifications compared to the 250 option are the same except:
- Bigger 25GT Compressor Billet Wheel,
- Clipped, Lightened, and Bigger TD06 Turbine Wheel.
Other significant modifications
In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

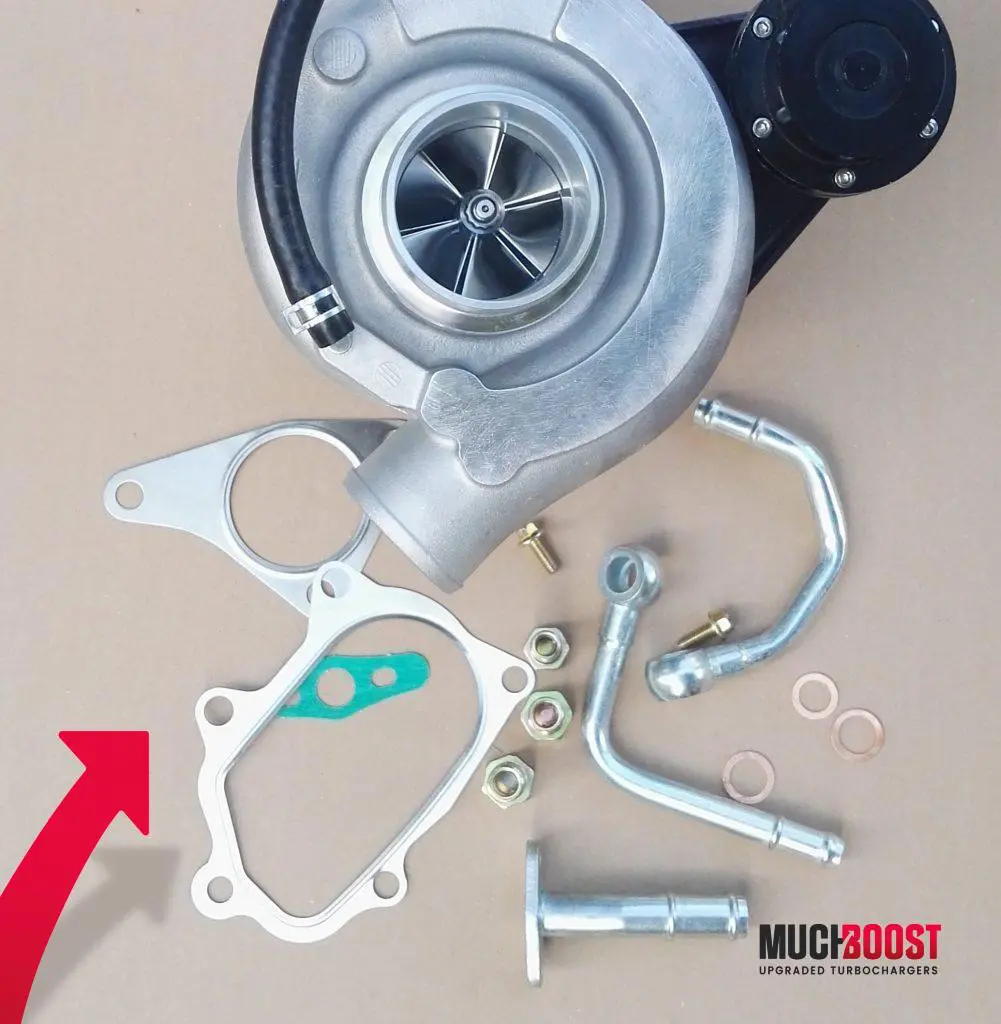

A set of gaskets is included with every option you choose!
Cars
Subaru Impreza WRX Turbo,
Subaru Impreza WRXR8
Factory numbers
VF22
VF23
VF35
VF43
VF48
VC440022
VH440022
VG440022
VF440022
VE440022
VD440022
VB440022
VD440047
VA660033
VB660033
VA660042
VC660051
VA660035
VB660035
VA660043
Engines
EJ20G/E 280HP, 2500ccm
OEM number
14411AA440
14411AA442
14411AA441
14411-AA440
14411-AA441
14411-AA442
14411-AA700
14411AA700
14411-AA620
14411AA620
14411AA142
14411AA143
14412AA132
14412AA171
14411AA172
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
- The warranty is 12 months without the limit of mileage.
- We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
POWER RANGE | 420HP, 480HP |
---|
