  • M47TuD20 BMW 320D E46 Hybrid Turbo Upgrade BMW 318D M47D20
+
Add to Wishlist
Add to Wishlist

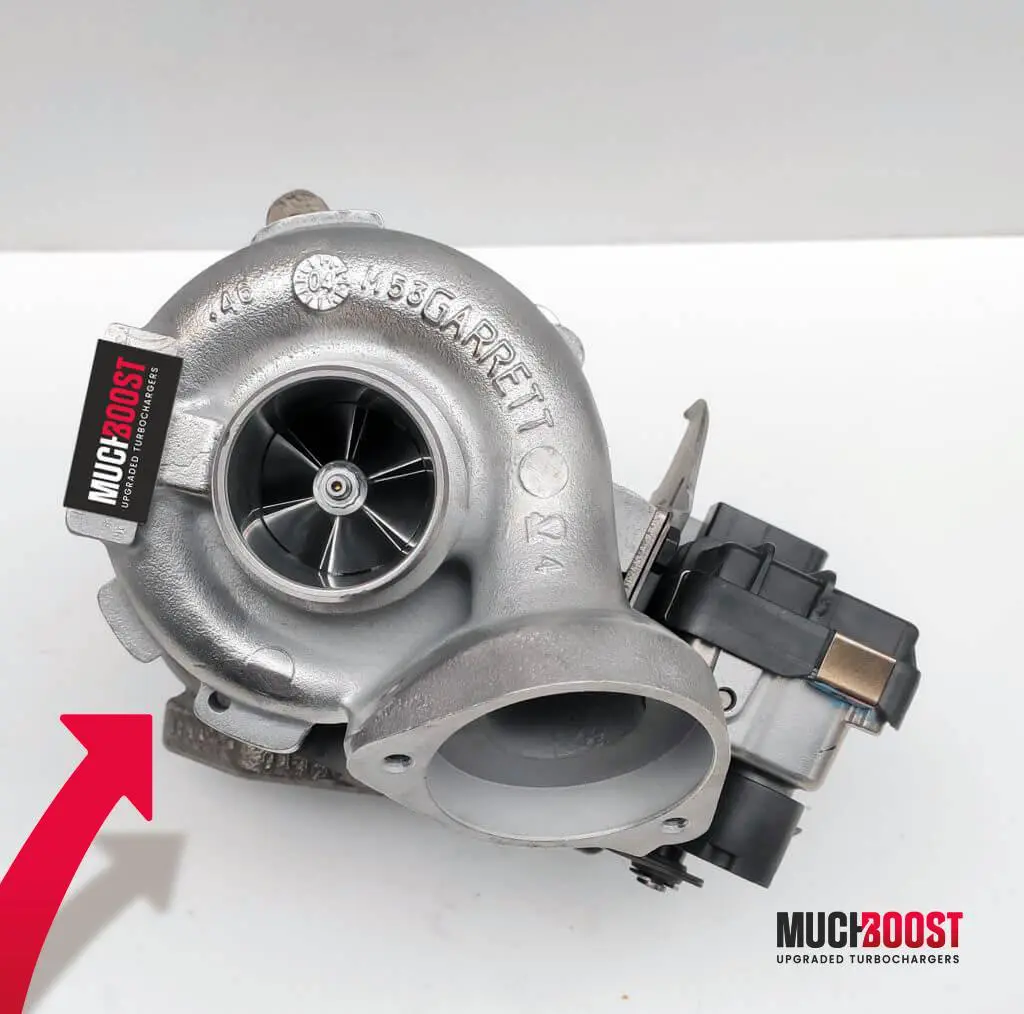

MuchBoost M47TuD20 /  M47D20 Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with BMW 318D & 320D E46 with the M47TuD20 /  M47D20 engines with a stock power of 116 / 150 / 163 HP.

The turbo delivers up to 167% power (100 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 230HP to 250HP.

MuchBoost M47D20 230

Upgraded turbocharger with an estimated ~230HP at the crank. List of modifications:

  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • Genuine Hella electronic actuator
  • More efficient and larger Billet Compressor Wheel 6+6 Blades,
  • Genuine Clipped and Lightened Turbine Wheel,
  • Precisely machined seal plates and compressor housing,
  • Genuine Garrett compressor housing,
  • Genuine Garrett bearing housing,
  • Genuine Garrett exhaust manifold,
  • Original Hella actuator,
  • Dynamically balanced,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost M47D20 250

Upgraded turbocharger with an estimated potential of ~250HP at the crank. Modifications compared to the 230 option are the same except:

  • Enlarged Turbine Wheel,
  • Precisely machined exhaust housing.
Other significant modifications

The turbo is meant to work with ~230-250HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

You might also consider

M47TuD20 Custom De-Cat Downpipe BMW E46 318D, 320D


A set of gaskets is included with every option you choose!


Cars
BMW E46 318D 116HP
BMW E46 320d 150HP
BMW E46 320d Coupe 150HP
BMW E46 320d Touring 150HP
BMW E46 320d Compact 150HP
BMW E46 320d Cabriolet 150HP
BMW E60/E61 520d – 163HP
BMW E83 X3 2.0d 150HP


Factory numbers

11657790994
77909921
11657790314
11657790312
762965-0001
762965-0002
762965-0003
762965-0007
762965-0008
762965-0009
762965-0017
762965-1
762965-17
762965-2
762965-3
762965-5001S
762965-5002S
762965-5003S
762965-5007S
762965-5008S
762965-5009S
762965-5017S
762965-7
762965-8
762965-9
763091-0004
763091-4
763091-5004S
762965-0020
762965-5020S
762965-20
717478-0001
717478-0002
717478-0003
717478-0004
717478-0005
717478-0006
717478-1
717478-2
717478-3
717478-4
717478-5
717478-5001S
717478-5002S
717478-5003S
717478-5004S
717478-5005S
717478-5006S
717478-6
750431-0006
750431-0009
750431-0012
750431-0013
750431-12
750431-13
750431-5006S
750431-5009S
750431-5012S
750431-5013S
750431-6
750431-9
750431-9013S

Engines

M47TuD20
M47D2o


OEM number

731877-5010S
731877-9010S
731877-5009S
731877-0007
731877-0006
731877-0004
731877-0003
731877-0001
733701-5009S
733701-0004
733701-0001
7794020G
7794021G
7794022G
7794020H
7794021H
7794022H
11657794022H
11657794021H
11657794020H
11657794020G
11657794021G
11657794022G
11657794022
11657794020
11657794021
7794020
7794021
7794022
11652287495
7794021K10
7787627G
11657794144
7794144E03
11657794144E03
11657787627G
7794144
77876271
116577876271
7794140E03
11657794140E03
7794140D
11657794140D
7794140C
11657794140C
7787626H
7787627H
7787628H
7787626D
11657787626D
11657794140
7794140
11657787628
7787626F
7787626G
11657787627
11657787626
11657793093
7787628
7794144
7794144000
7794140000
11652414329
77876261


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

230HP, 250HP

There are no reviews yet.

Be the first to review “M47TuD20 BMW 320D E46 Hybrid Turbo Upgrade BMW 318D M47D20”
