MQB IS20 Hybrid Turbo Upgrade Audi A4 B8, A5, Q5, Seat Exeo, VW Golf VII GTI
1849,80 € – 2249,18 €
In Stock
Do you want to get absolutely the most out of your engine? Muchboost has a solution for you! Muchboost IS20 2.0TFSI Hybrid Upgraded Turbocharger with a Custom Compressor Billet Wheel 6+6 and Enlarged High-Flow 8 blade Turbine Wheel (depending on the option). It is based on an original IHI turbocharger, which means that installation is […]
Do you want to get absolutely the most out of your engine? Muchboost has a solution for you!

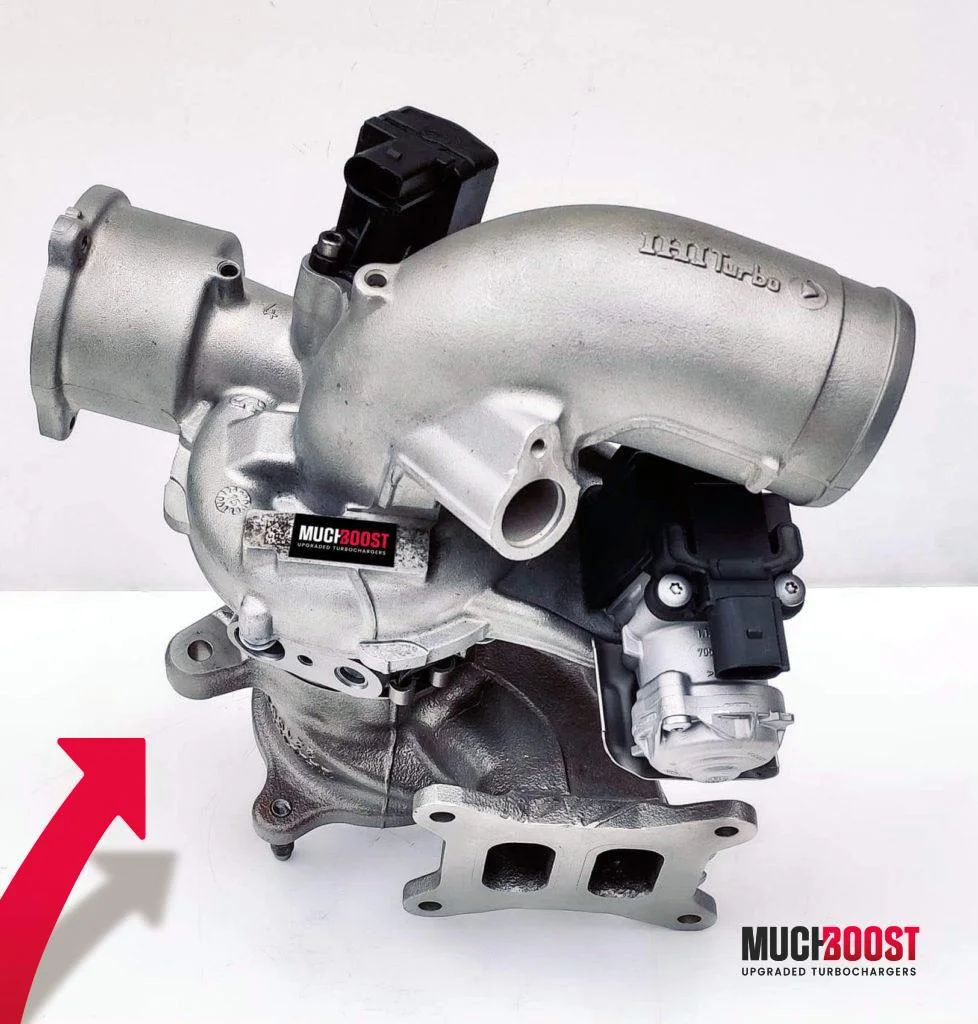

Muchboost IS20 2.0TFSI Hybrid Upgraded Turbocharger with a Custom Compressor Billet Wheel 6+6 and Enlarged High-Flow 8 blade Turbine Wheel (depending on the option). It is based on an original IHI turbocharger, which means that installation is 100% P&P. The turbocharger is meant to work with Audi A4 B8, Audi A5, Audi Q5, Seat Exeo, VW Golf VII GTI with the 2.0TFSI engines.
The turbo delivers great power characteristics and has something to offer for anyone that’s interested in gaining more power from their daily driver or trying to get maximum performance from their fun weekend car. You don’t have to worry about being taken over anymore.
We have developed 2 modification options that allow you to reach anywhere from 370HP to 420HP.
MuchBoost IS20 370
Upgraded turbocharger with an estimated ~370HP at the crank. List of modifications:
- Precisely machined seal plates and compressor housing,
- More efficient and larger Billet Compressor Wheel 6+6 blades,
- Upgraded journal bearing system that allows the turbo to hold more boost,
- IS38 Turbine Wheel to help reduce backpressure,
- Genuine IHI IS20 compressor housing,
- Genuine IHI IS20 exhaust manifold,
- Genuine IHI IS20 bearing housing,
- Original actuator and diverter valve,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Muchboost IS20 420
Upgraded Turbocharger with an estimated potential of ~420HP at the crank. Modifications compared to the 370 option are the same except:
- even larger Billet Compressor Wheel,
- Enlarged Turbine Wheel
Other Significant Modifications
To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.
You might also consider
A set of gaskets is included with every option you choose!
Engines
CWZ, CHH, CHHA, CDNC, CHHB, CXDA, CXCB, CNTC
Cars
Audi A4 2.0TFSI (B8) 211HP
Audi A4 B8 1.8TFSI 170HP
Audi A4 B9 1.8TFSI 150-190HP
Audi A5 2.0TFSI 211HP
Audi A5 1.8TFSI 150-190HP
Audi A6 C7 1.8/2.0TFSI 190-252HP
Audi A7 2.0TFSI 190-252HP
Audi Q5 2.0TFSI 211HP
Audi Q7 2.0TFSI 252HP
Seat Exeo 2.0TFSI 211HP
Porsche Macan 2.0 turbo 252HP
VW Golf VII GTI 230HP
OEM numbers
06K145874L
06H145702Q
06l145722N
Factory numbers
06K 145 722G
06K 145 702Q
06K 145 702R
06K 145 702T
06K 145 722G
06K 145 614D
06H 145 710C
06H145702Q
06L145654G
06L145654A
06L145701A
06L145701E
06L145701D
06L145701C
06L145701B
06L145701J
06L145701H
06L145701G
06L145701F
06L145654F
06L145654E
06L145654D
06L145654C
06L145654CX
06L145654FX
06L145654EX
06L145654AX
06L145654DX
06L145654GX
06L145654DX
06L145654CV
06L145701HV
06L145701JV
06L145701KV
06L145701LV
06L145701CX
06L145701JX
06L145701KX
06L145701LX
06L145701EX
06L145701FX
06L145701GX
06L145701HX
06L145701AX
06L145701DX
06L145701CX
F41CEGSR030B
9VA08
06L145722T
06L 145 722T
06L-145-722T
06L145722D
06L145722M
These cars could also use this turbo:
http://muchboost.com/product/mqb-is-38-hybrid-turbo-upgrade-vw-golf-vii-r-seat-leon-cupra-audi-s3-8v/
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
POWER RANGE | 370HP, 420HP |
---|
