GTD1756VRK Z19DTH Hybrid Turbo Upgrade 1.9CDTI Opel Astra, Fiat Croma, Stilo, SAAB 9-3
1799,00 € – 1899,00 €
In Stock

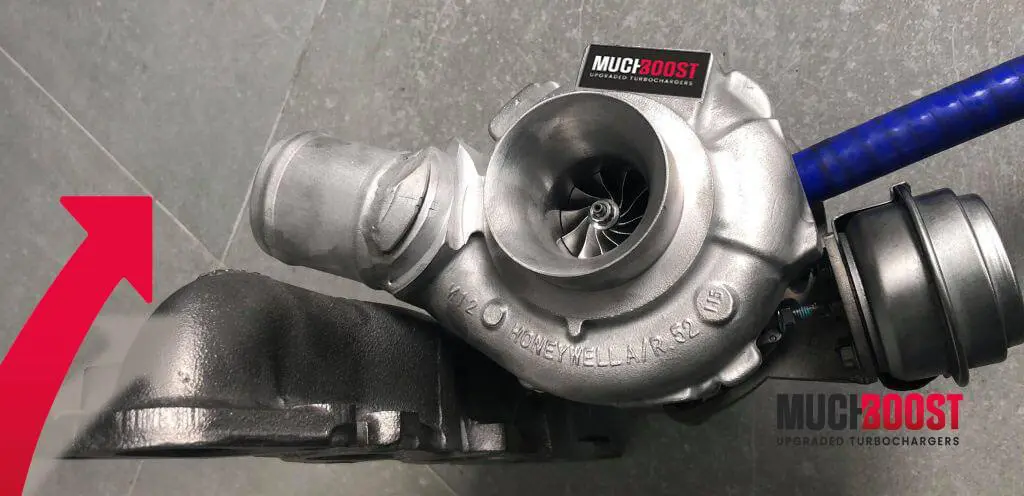

MuchBoost GTD1756VRK Upgraded Turbocharger with a Custom Billet Compressor Wheel GEN I (240HP) or 250HP (250HP). It is based on an original GTD1752VRK Turbocharger from a BMW B47D20 engine. The turbocharger is professionally adapted to work with Opel Astra, Signum, Vectra, Zafira, Fiat Croma, Stilo, and Saab 9-3 with the Z19D 100-150HP engines. The turbo […]
MuchBoost GTD1756VRK Upgraded Turbocharger with a Custom Billet Compressor Wheel GEN I (240HP) or 250HP (250HP). It is based on an original GTD1752VRK Turbocharger from a BMW B47D20 engine. The turbocharger is professionally adapted to work with Opel Astra, Signum, Vectra, Zafira, Fiat Croma, Stilo, and Saab 9-3 with the Z19D 100-150HP engines.
The turbo delivers up to 250% power (150 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
Main Features
- Fast spool, comparable to a stock ARL PD150 turbocharger
- Low manifold pressures at high RPM
- High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
- GTD17VRK series compressor housing.
- GTD17VRK series bearing housing.
- GTD17VRK series exhaust housing.
- The manifold comes from a Garrett turbocharger.
- Ceramic Garrett Ball Bearings.
- GTD17VRK series 9 blades Turbine Wheel.
- Enlarged 56mm compressor wheel GEN I or GEN II.
- The turbo is cooled just by oil (no complication with water cooling fittings).
- The EGR is deleted.
- Garrett 4th generation of VNT (Variable Nozzle Turbine).
- The VNT actuator adaptation.
- Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines.
*All the parts are genuine, made by Garrett.
Mounting tips:
Steps to be performed during assembly:
- The Installation of a larger DP (you will receive the V-band flange with the turbocharger). You can modify the factory DP using our flange, but that will be a limitation. A new downpipe with a larger diameter is strongly recommended.
- New stainless or silicone Inlet + Outlet pipes.
Our custom oil line return will be sent with the turbo. The oil line supply can stay stock (a new line is recommended).
Other significant modifications
To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.
Compressor Wheel |
Top Boost |
Top HP |
---|---|---|
Billet Wheel GEN I |
29PSI |
240HP |
Billet Wheel GEN II |
30PSI |
250HP |

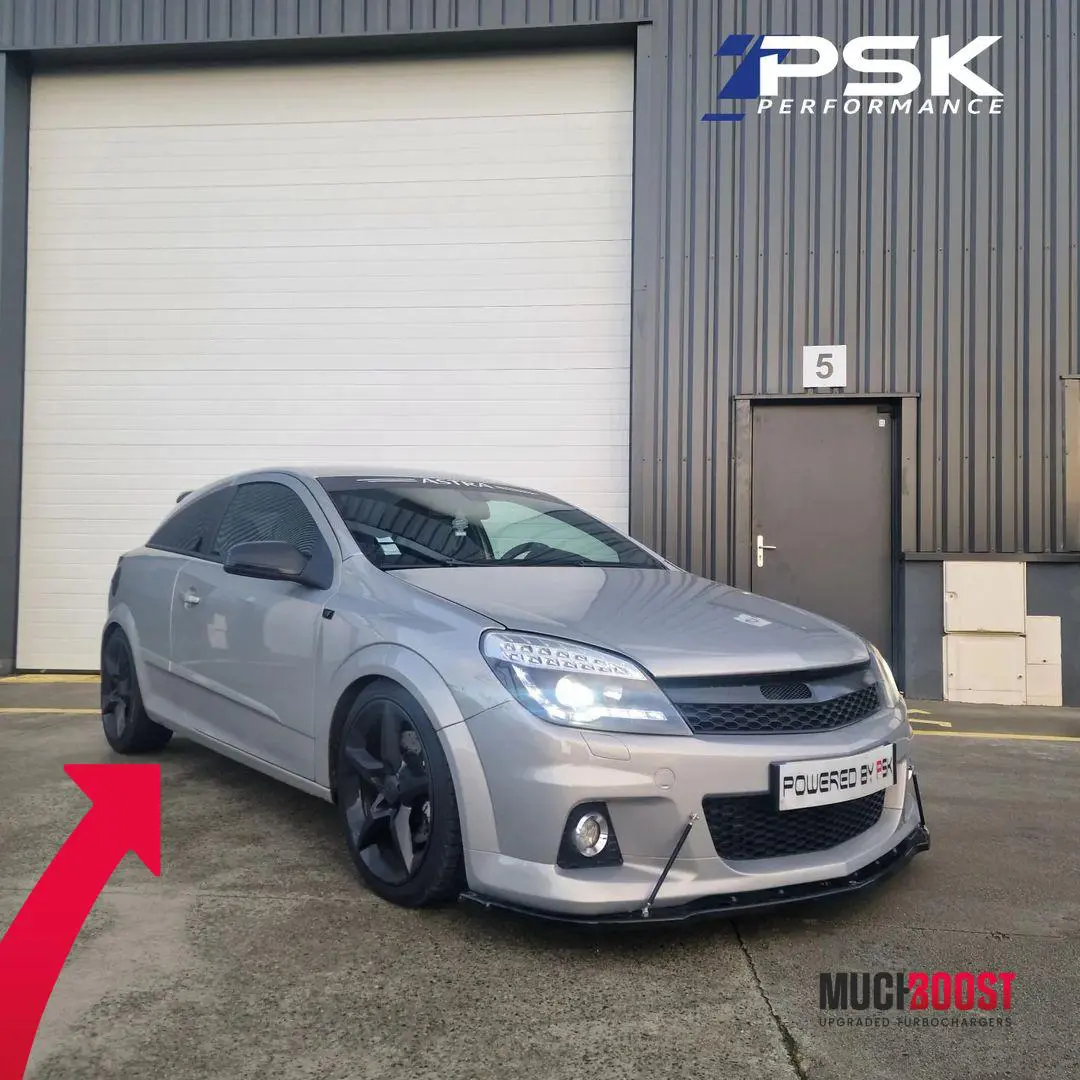

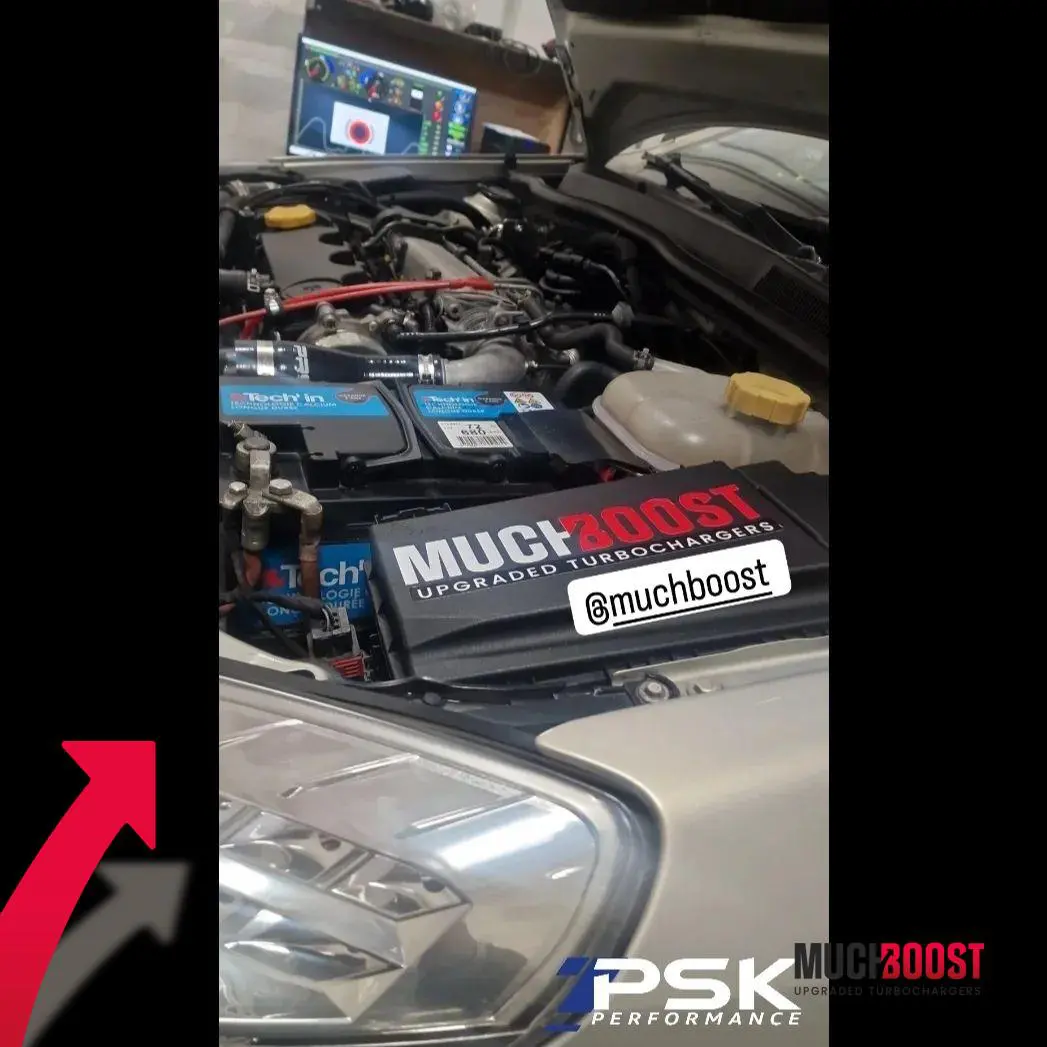

Example project
One of our clients managed to produce 216 HP and 427 Nm at the crank. The car was also equipped with:
- Upgraded Intercooler,
- Complete exhaust system.
Please see the dyno graph below.
A set of gaskets is included with every option you choose!
Cars
Opel Astra H 1.9 CDTI 120HP
Opel Astra H 1.9 CDTI 150HP
Opel Signum 1.9 CDTI 120HP
Opel Signum 1.9 CDTI 150HP
Opel Vectra C 1.9 CDTI 100HP
Opel Vectra C 1.9 CDTI 120HP
Opel Vectra C 1.9 CDTI 150HP
Opel Zafira B 1.9 CDTI 120HP
Opel Zafira B 1.9 CDTI 100HP
Opel Zafira B 1.9 CDTI 150HP
Fiat Croma II 1.9 JTD 150HP
Fiat Croma II 1.9 JTD 120HP
Fiat Stilo 1.9 JTD 120HP
Saab 9-3 II 1.9 TiD 150HP
Factory numbers
767835-5003S
767835-9003S
755042-5003S
755042-9003S
755042-5002S
755373-0001
752814-0001
740080-0002
773720-5001S
766340-5001S
755046-0003
755046-0002
755046-0001
740067-0002
755046-9002S
Engines
OEM number
5860031
93192073
55193105
55205179
55195787
55196858
93183681
860074
860129
860074
849348
860549
849537
5860015
55205356
55196766
55196859
93169106
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
COMPRESSOR WHEEL | GEN I, GEN II |
---|
