  • CUTA 1.4TDI Hybrid Turbo Upgrade Seat Ibiza V, Skoda Fabia III, Rapid, VW Polo MK6
+
Add to Wishlist
Add to Wishlist

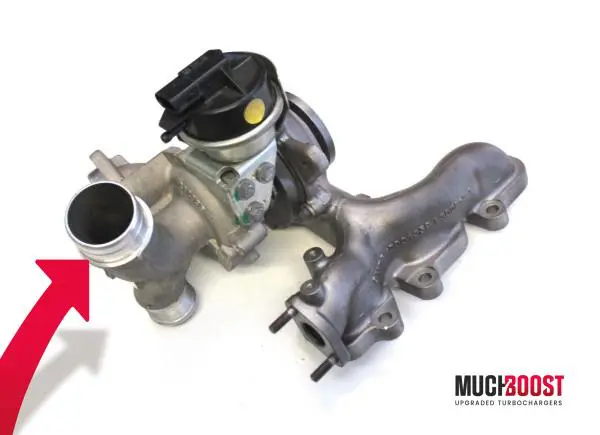

MuchBoost CUTA 1.4TDI Upgraded Turbocharger with a Custom Billet Compressor Wheel and a Clipped/Enlarged Turbine Wheel. It is based on an original Mahle turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with Seat Ibiza V, Skoda Fabia III, RTapid, and Volkswagen Polo MK6 with the CUTA 1.4TDI 105HP engines.

The turbo delivers up to 161% power (65 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 150HP to 170HP.

MuchBoost CUTA 1.4TDI 150

Upgraded turbocharger with an estimated potential of ~150HP at the crank. The list of modifications:

  • Precisely machined seal plates and compressor housing,
  • Genuine Mahle compressor housing,
  • Genuine Mahle bearing housing,
  • Genuine Mahle exhaust manifold,
  • Upgraded journal bearing system that allows the turbo to hold more boost,
  • Original actuator,
  • More efficient and larger Billet Compressor,
  • Clipped Turbine Wheel,
  • Dynamically balanced,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost CUTA 1.4TDI 170

Upgraded turbocharger with an estimated potential of ~170HP at the crank. Modifications compared to the 150 option are the same except:

  • Bigger Compressor Wheel,
  • Larger Turbine Wheel,
  • Machined exhaust housing.
Other significant modifications

The turbo is meant to work with ~150-170HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

You might also consider

1.4 TDI CUSA Hybrid Turbo Upgrade Audi A1 8X, Seat Ibiza IV, Toledo IV, Skoda Fabia III, Rapid II, Volkswagen Polo V


A set of gaskets is included with every option you choose!


Cars
Seat Ibiza V 1.4TDI – 105HP
Skoda Fabia III 1.4TDI – 105HP
Skoda Rapid 1.4TDI – 105HP
Volkswagen Polo MK6 1.4TDI – 105HP


Factory numbers

BM-030TC11006000
BM030TC11006000
030TC11006000
BM65A

Engines

CUTA


OEM number

54309400112
04B253019RV
04B253019R
04B253019H
04B253019HV
04B253019HX
04B253019RX


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

150HP, 170HP
