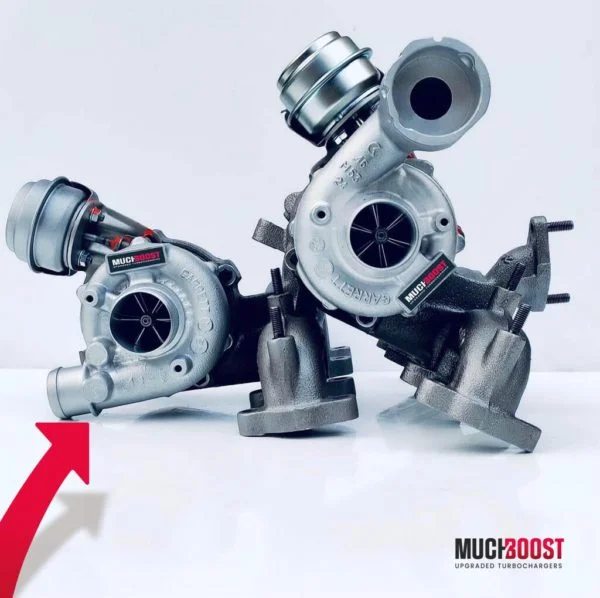

MuchBoost GT1756V Upgraded Turbocharger with a Custom Billet Compressor or an Enlarged Billet Wheel. It is based on a genuine Garrett turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with 1.9 & 2.0 TDI engines.

It fits the majority of transverse and longitudinal engines with the engine codes mentioned at the bottom of this page.

The turbo delivers up to 230HP which means it could be perfect for a faster daily driver, to gain some additional power.

Main Features
  • The potential 220HP-230HP,
  • Fast spool thanks to Billet Compressor Wheel,
  • Enlarged PD150 GT17 Turbine Wheel.
Details on the construction of the turbo:
  • Genuine Garrett compressor housing,
  • Genuine Garrett bearing housing,
  • Precisely machined exhaust housing.
  • Upgraded Journal bearing system that allows holding more boost,
  • Garret 2nd generation of VNT (Variable Nozzle Turbine),
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with ~220-230HP at 36-38PSI of boost. In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Compressor WheelTop BoostTop HP
Cast 56mm wheel27PSI/1.9bar220HP
Billet 56mm 6+6 blades Wheel28PSI/2.0bar230HP
Engine Codes

BKD, AZV, BKP, ECE, PDE, BSY, ALH, ASV, ASZ, BLT, BPX, AHF, ATD, AVK, AUY, AJM, BJB, BKC, BXE, BXF, BRU, AVF, AWX, BPW, BGW, BLB, BRE, BRF, BVF, BVG, BLB, etc.

If you don’t see your engine here, don’t hesitate to contact us.

Example project

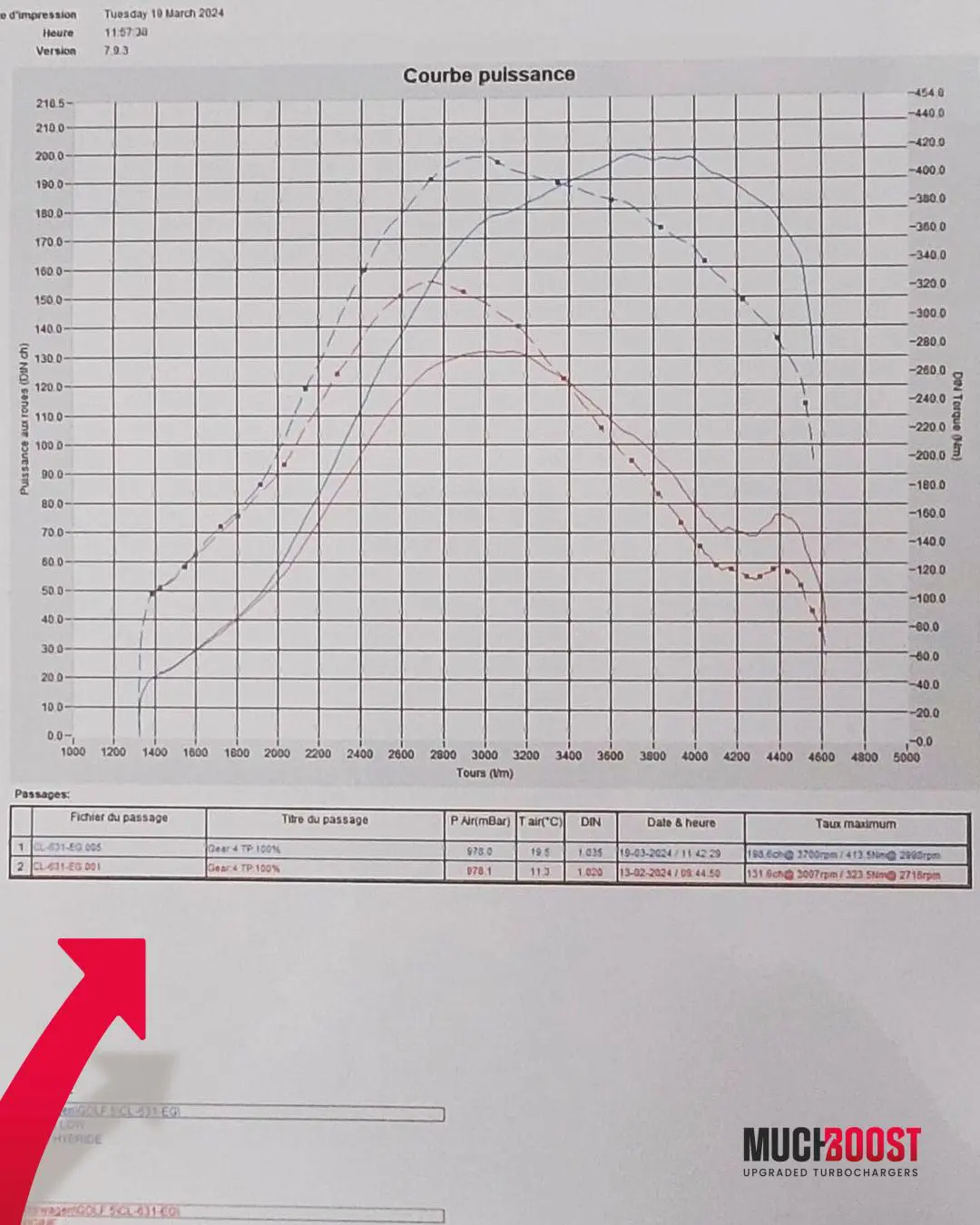

One of our clients managed to make 198HP and 413Nm of torque with this turbo. Other than a tune, the car was stock. Please see the dyno graph below.


A set of gaskets is included with every option you choose!

Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

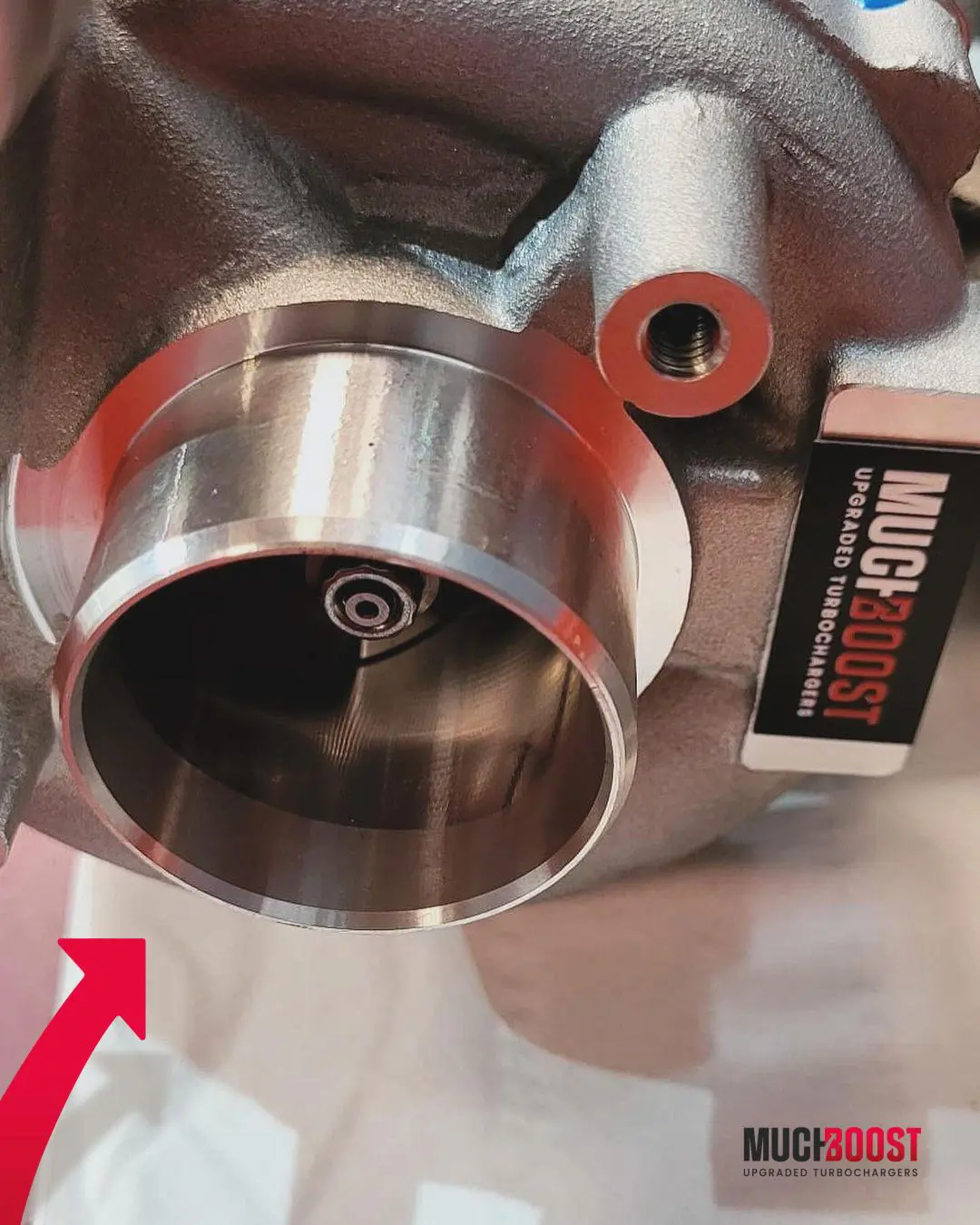

56mm COMPRESSOR WHEEL

CAST, BILLET 6+6 BLADES
