  • CRTE GTD2060VZ 3.0TDI V6 Hybrid Turbo Upgraded Audi Q7, A6, A7, CRTD, CRTF
+
Add to Wishlist
Add to Wishlist

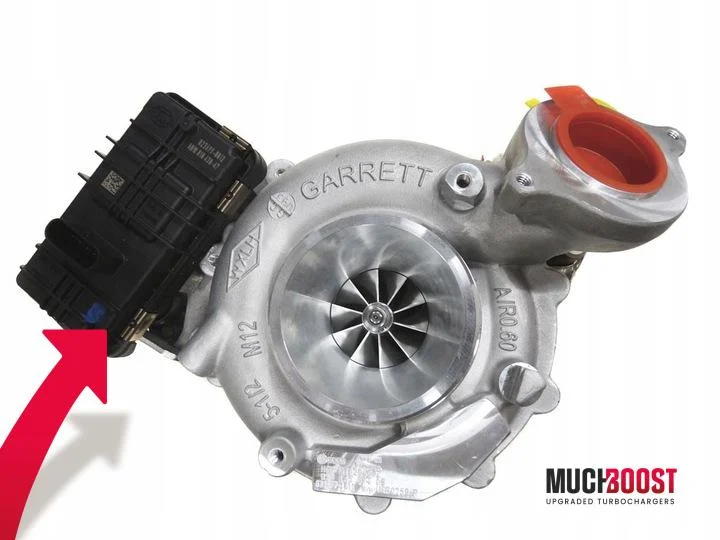

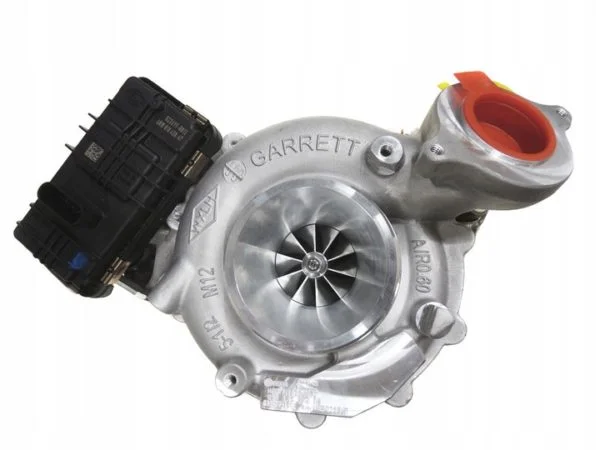

MuchBoost 3.0TDI CRTE, CRTD, CRTF Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original Garrett GTD2060VZ Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A6, A8, Q7, and VW Amarok with the 3.0TDI CRTE, CRTD, CRTF 211-272HP engines.

The turbo delivers up to 189% power (189 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

MuchBoost 3.0TDI CRTE/CRTD/CRTF 370

Upgraded turbocharger with an estimated potential ~370HP at the crank. The list of modifications:

  • Fast spool thanks to Enlarged Custom 6+6 Blades Billet Compressor Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
  • Genuine Garrett GTD20VZ compressor housing,
  • Genuine Garrett GTD20VZ exhaust housing,
  • Genuine Garrett GTD20VZ bearing housing,
  • Precisely machined compressor housing and seal plate,
  • Upgraded Journal bearing system that allows holding more boost,
  • Genuine Hella VNT actuator,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost 3.0TDI CRTE/CRTD/CRTF 400

Upgraded turbocharger with an estimated potential ~400HP at the crank. Modifications compared to the 370 option are the same except:

  • Enlarged Billet Compressor Wheel 11+0 blades,
  • Enlarged High Flow  blades Turbine Wheel,
  • Precisely machined turbine and exhaust housings.
Other significant modifications

The turbo is meant to work with ~370-400HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example project

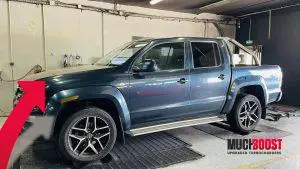

One of our clients managed to produce 425HP and 912Nm of torque. A custom ECU tune was done, also a TCU remap by Vasatas.lt performance. The car was also equipped with:

  • BMC AIR FILTERS air filter,
  • EGR and AdBlue delete,
  • FAP removal,
  • Upgraded downpipe made by Hks Competition 974.

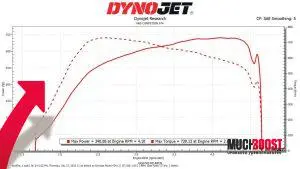

Dyno graph below.


A set of gaskets is included with every option you choose!


Cars
Audi Q7 3.0TDI 4M – 268HP,
Audi A6 3.0TDI C8- 211/218/272HP,
Audi A7 3.0TDI C8 – 211/218/272HP,
VW Amarok 3.0TDI – 255HP


Factory numbers

059145873FA
059 145 873 FA
059145873BP
059145873CH
059145873CL
059145873DB
059 145 873 BP
059 145 873 CH
059 145 873 CL
059 145 873 DB

Engines

3.0TDI
CRTE, CRTD, CRTF


OEM number

888580-0001
888580-5001s
888580-1
839077-1011
839077-0011
839077-11
839077-5011S
839077-0009
839077-9
839077-5009S
839077-0008
839077-8
839077-5008S
839077-0002
839077-2
839077-5002S


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

370HP, 400HP
