2.0 BlueHDi/2.0 TDCi DW10FD Hybrid Turbo Upgrade Citroen C4 II, C5 III, DS 4, DS 5, DS 7, Ford Focus III, Galaxy III, Peugeot 308 II, 508
1228,77 € – 1351,77 €
In Stock

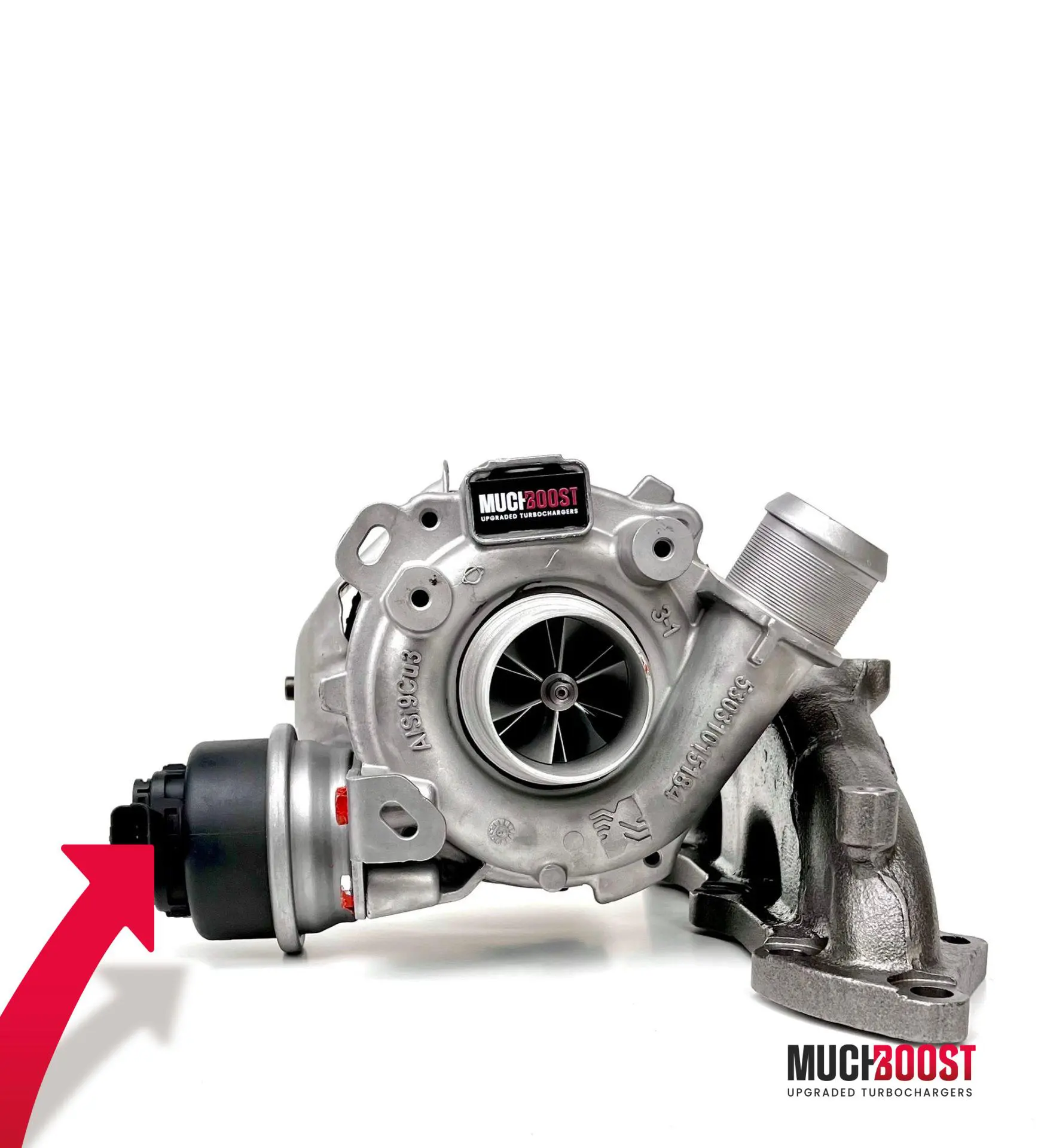

MuchBoost 2.0TDCi/2.0D Upgraded Turbocharger with a Custom Billet Compressor Wheel and Clipped/Larger Turbine Wheel. It is based on an original BorgWarner Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Citroen C4, C5, Jumpy, Spacetourer, DS 4, DS 5, DS 7, Ford C-Max, Focus, Galaxy, Kuga, Mondeo, S-Max, Peugeot 308, 508, 3008, […]
MuchBoost 2.0TDCi/2.0D Upgraded Turbocharger with a Custom Billet Compressor Wheel and Clipped/Larger Turbine Wheel. It is based on an original BorgWarner Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Citroen C4, C5, Jumpy, Spacetourer, DS 4, DS 5, DS 7, Ford C-Max, Focus, Galaxy, Kuga, Mondeo, S-Max, Peugeot 308, 508, 3008, 5008, Expert, and Traveller with the 2.0BlueHdi/TDCi – 120-180HP engines.
The turbo delivers up to 237% power (165 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
We have developed 2 modification options that allow you to reach anywhere from 230HP to 250HP.
MuchBoost 2.0 BlueHDi/TDCi 250
Upgraded turbocharger with an estimated ~250HP at the crank. List of modifications:
- Upgraded journal bearings system that allows the turbo to hold more boost,

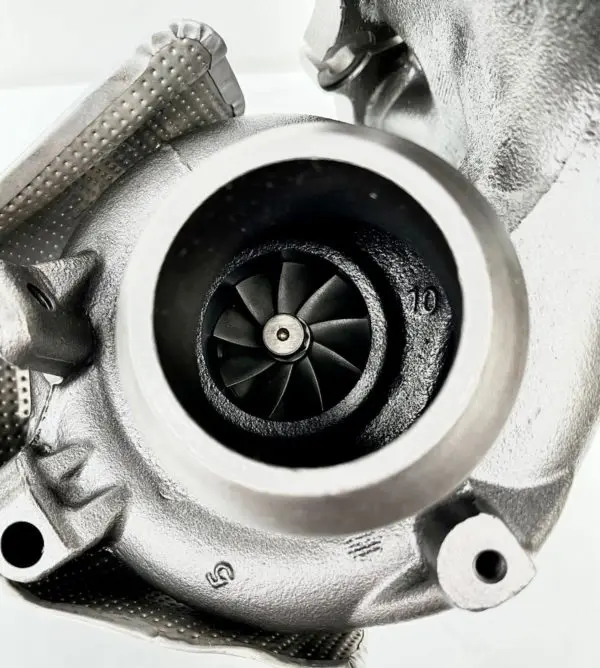

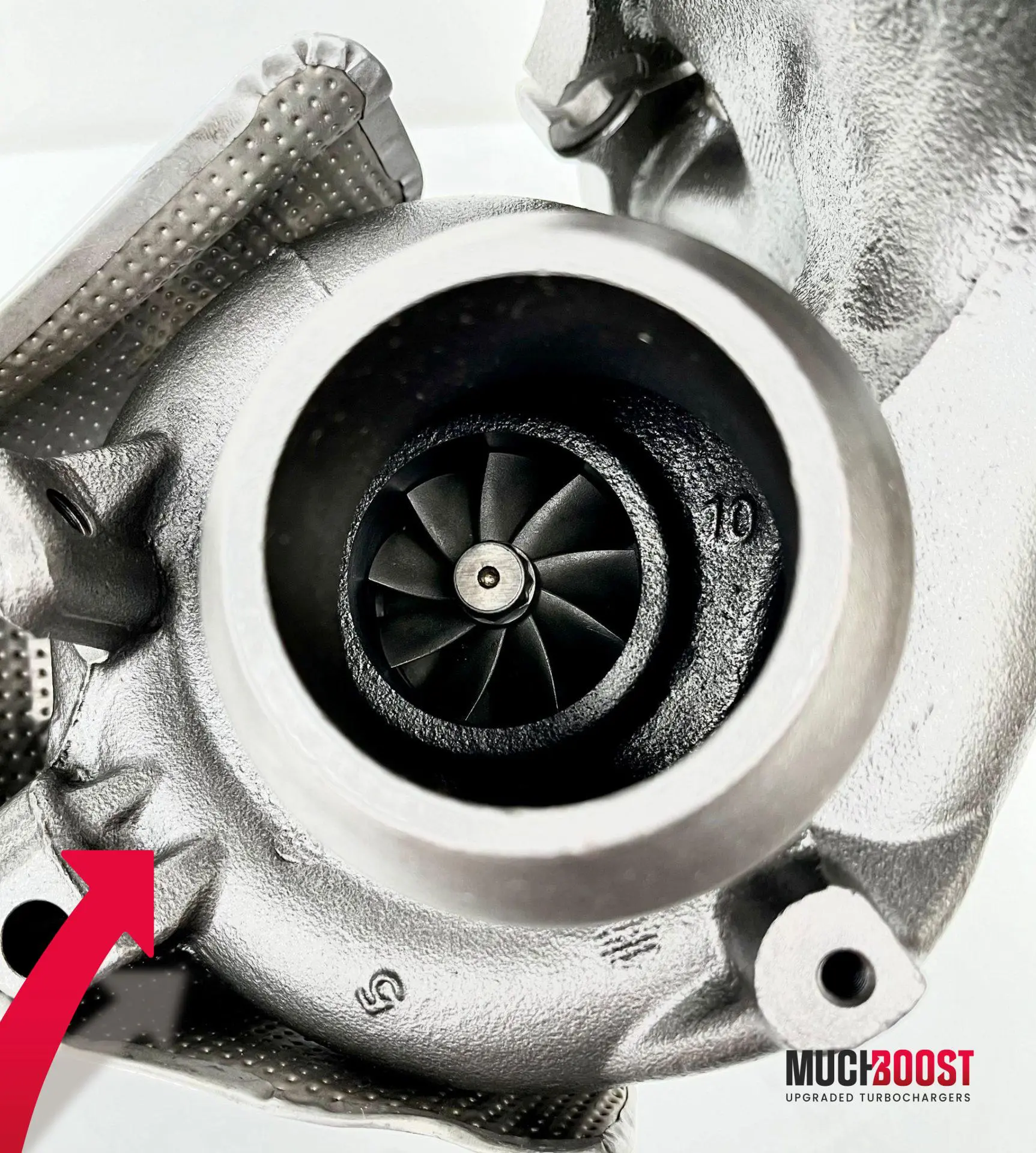

- More efficient and larger Billet Compressor Wheel,
- Clipped and Lightened Turbine Wheel,
- Genuine BorgWarner compressor housing,
- Genuine BorgWarner bearing housing,
- Genuine BorgWarner exhaust manifold,
- Original actuator,
- Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
- Dynamically balanced,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost 2.0 BlueHDi/TDCi 285
Upgraded turbocharger with an estimated potential of 285HP at the crank. Modifications compared to the 250 option are the same except:
- Bigger Compressor Billet Wheel,
- Bigger High-Flow Turbine Wheel.
- Larger turbo Inlet diameter.
Please note that the 285 HP option is no longer 100% Plug&Play. The outer inlet diameter is 2 inches, this means that you will need to get a 2-inch inlet pipe.
Other significant modifications
In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
Example project
One of our clients managed to produce 285HP and 461Nm of torque with our turbo. The car was also equipped with:
- Upgraded cooler,
- Direct air intake,
- 60mm full exhaust system.
Please take a look at the dyno graph below.
A set of gaskets is included with every option you choose!
Cars
Citroen C4 Picasso II 2.0 BlueHDi – 135/150HP
Citroen C5 III 2.0 BlueHDi – 150/180HP
Citroen Jumpy III 2.0 BlueHDi – 120/150/180HP
Citroen Spacetourer I 2.0 BlueHDi – 120/150/180HP
DS 4/DS 4 Crossback 2.0BlueHDI – 150/180HP
DS5 2.0 BlueHDi – 135/150/180HP
DS7 Crossback 2.0 BlueHDi – 180HP
Ford C-Max I 2.0TDCi – 136HP
Ford Grand C-Max II 2.0TDCi – 136HP
Ford Focus/Focus ST III 2.0TDCi – 150/185HP
Ford Galaxy III 2.0TDCi – 120/150/180HP
Ford Kuga II 2.0TDCi – 140/163HP
Ford Mondeo V 2.0TDCi – 150/180HP
Ford S-Max II 2.0TDCi – 120/150/180HP
Peugeot 308 II 2.0 BlueHDi – 150/180HP
Peugeot 508 I 2.0 BlueHDi – 150/160/180HP
Peugeot 3008 II 2.0 BlueHDi – 136/150/180HP
Peugeot 5008 I/II 2.o BlueHDi – 136/150/180HP
Peugeot Expert III 2.0 BlueHDi – 120/150/180HP
Peugeot Traveller I 2.0 BlueHDi – 150/180HP
Factory numbers
53039500137
53039700265
53039700394
53039880265
53039880394
53039900265
53039980265
5303 970 0265
5303 970 0394
5303 988 0265
5303 988 0394
5303 990 0265
5303 998 0265
5303-970-0265
5303-970-0394
5303-988-0265
5303-988-0394
5303-990-0265
5303-998-0265
Engines
T7CA,
T7CC,
T7CD,
T7CE,
T7CF,
T7CI,
T7CJ,
T7CK,
T7CL,
T7CN,
T7CP,
T7CQ,
T7DA,
T7DB,
T7MA,
T7MB,
T8CG,
T8CH,
T8CI,
T8CJ,
T8DE,
T8MA,
T8MB,
UFCA,
UFCB,
XRMA,
XRMB,
DW10FC,
DW10FD,
DW10FE,
DW10FCC
OEM number
1871356
2104859
3553008
95526029
9800923580
9840533580
1611284680
9800923580
9804265280
9807873180
9804265280L
9804265280 L
DS7Q6K682EA
DS7Q-6K682-EA
RMDS7Q6K682EA
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
POWER RANGE | 250HP, 285HP |
---|
