  • WLAA 2.5/3.0 TDCI/MRZ-CD Hybrid Turbo Upgrade Ford Ranger II, Mazda BT-50 I
+
Add to Wishlist
Add to Wishlist
SKU:
T389

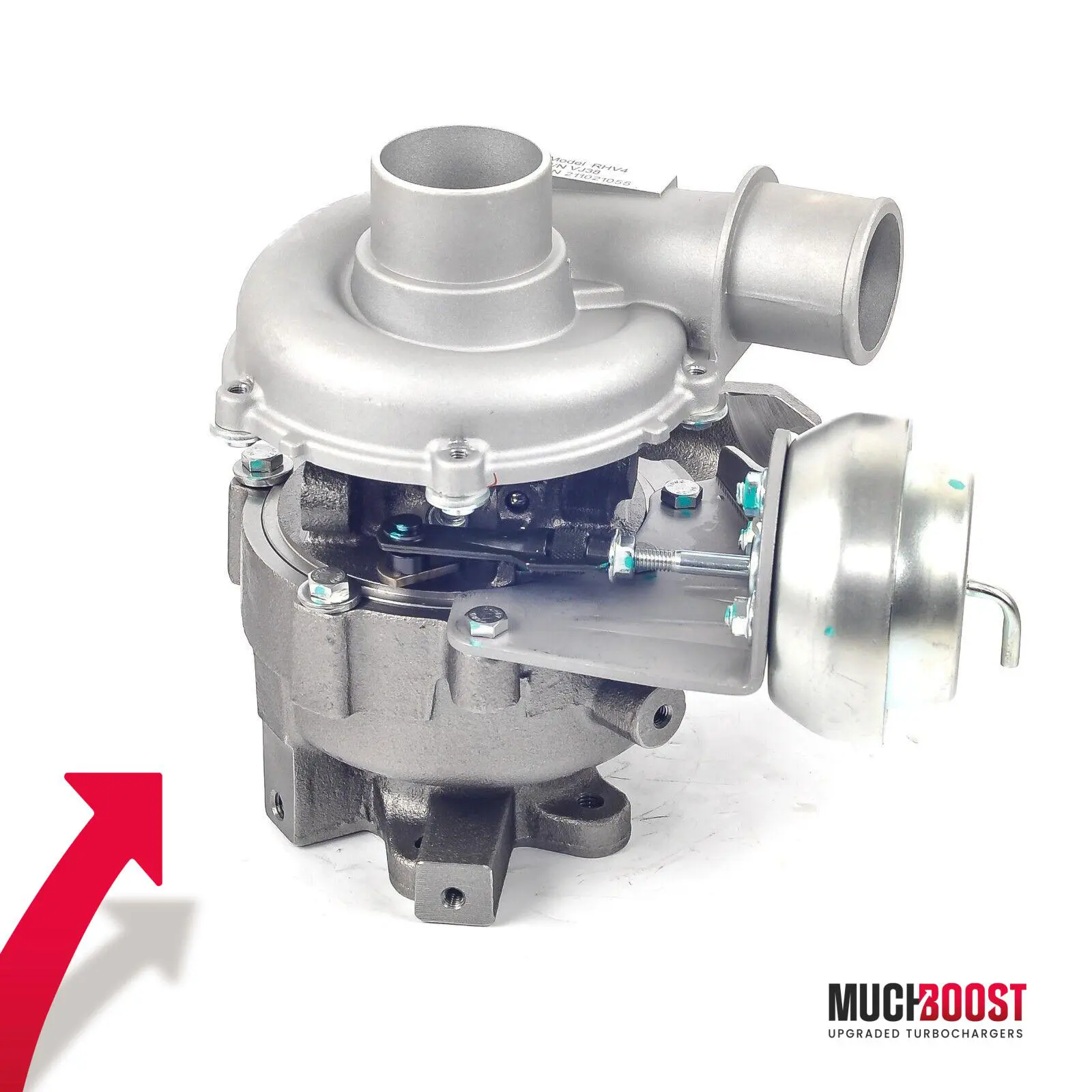

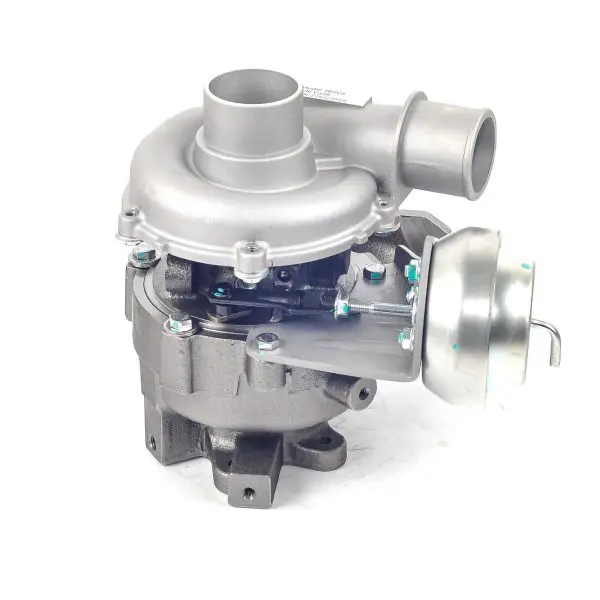

MuchBoost WLAA 2.5/3,0 TDCI Upgraded Turbocharger with a Custom Billet Compressor Wheel and a Clipped Turbine Wheel. It is based on an original IHI Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Ford Ranger II and Mazda BT-50 with the 2.5/3.0 TDCI/MRZ-CD 143-156HP engines.

The turbo delivers up to 141% power (67 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

Main Features
  • The potential ~250HP,
  • Fast spool thanks to Custom Billet Compressor Wheel,
  • Clipped Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds,
Details on the construction of the turbo:
  • Genuine IHI compressor housing,
  • Genuine IHI exhaust manifold,
  • Genuine IHI bearing housing,
  • Original IHI actuator,
  • Precisely machined seal plate & compressor housings,
  • Upgraded Journal bearing system that allows holding more boost,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with ~250HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with the turbo!


Cars
Ford Ranger II 2.5 TDCI – 143HP
Ford Ranger II 3.0 TDCI – 156HP
Mazda BT-50 I 2.5 MRZ-CD – 143HP
Mazda BT-50 I 3.0 MRZ-CD – 156HP


Factory numbers

VJ38
VAD20011
VAD20021
VBD20011
VBD20021
VCD20011
VCD20021
VDD20011
VDD20021
VED20011
VED20021
VFD20011
VFD20021
VGD20011
VGD20021
VHD20011
VHD20021
VID20011
VID20021
VJD20011

Engines

WLAA


OEM number

WE01
1355080
4573957
4945478
3M359G438AA
3M359G438AB
3M359G438AC
6M349G438AB
3M35-9G438-AA
3M35-9G438-AB
3M35-9G438-AC
6M34-9G438-AB
WE0113700D
WE0113700F


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
