N22 Honda Hybrid Turbo Upgrade Honda Accord VIII, Civic IX 2.2 i-DTEC
1149,00 € – 1349,00 €
In Stock

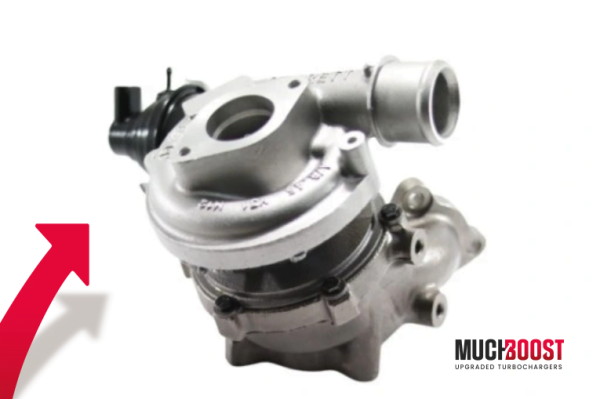

MuchBoost N22 Upgraded Turbocharger with a Custom Billet Compressor Wheel and Clipped/Larger Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Honda Accord and Civic with the N22 – 150HP engines. The turbo delivers up to 160% power (90 extra HP) over the […]
MuchBoost N22 Upgraded Turbocharger with a Custom Billet Compressor Wheel and Clipped/Larger Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Honda Accord and Civic with the N22 – 150HP engines.
The turbo delivers up to 160% power (90 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
We have developed 2 modification options that allow you to reach anywhere from 200HP to 220HP.
MuchBoost N22 220
Upgraded turbocharger with an estimated ~220HP at the crank. List of modifications:
- Upgraded journal bearings system that allows the turbo to hold more boost,
- More efficient and larger Billet Compressor Wheel,
- Clipped and Lightened Turbine Wheel,
- Genuine Garrett compressor housing,
- Genuine Garrett bearing housing,
- Genuine Garrett exhaust manifold,
- Original actuator,
- Dynamically balanced,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost N22 240
Upgraded turbocharger with an estimated potential of 240HP at the crank. Modifications compared to the 220 option are the same except:
- Bigger Compressor Billet Wheel,
- Bigger High-Flow Turbine Wheel.
Other significant modifications
In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
Example project

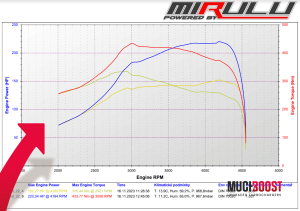

One of our clients managed to produce 220HP and 433Nm of torque with our 220HP turbo. The car was also upgraded with a solid aluminum Moshimoto intercooler. Dyno graph below.
You might also be interested in
A set of gaskets is included with every option you choose!
Cars
Honda Civic IX – 150HP
Factory numbers
782217-5002S
782217-5001S
782217-0002
782217-0001
Engines
N22
OEM number
18900-RL0-G01
18900RL0G020M2
18900RL0G014M2
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
- The warranty is 12 months without the limit of mileage.
- We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
POWER RANGE | 220HP, 240HP |
---|
