  • GTB2060VK Big Turbo 1.9TDI Upgrade vacuum converted with a welded 1.9/2.0 TDI Manifold
+
Add to Wishlist
Add to Wishlist

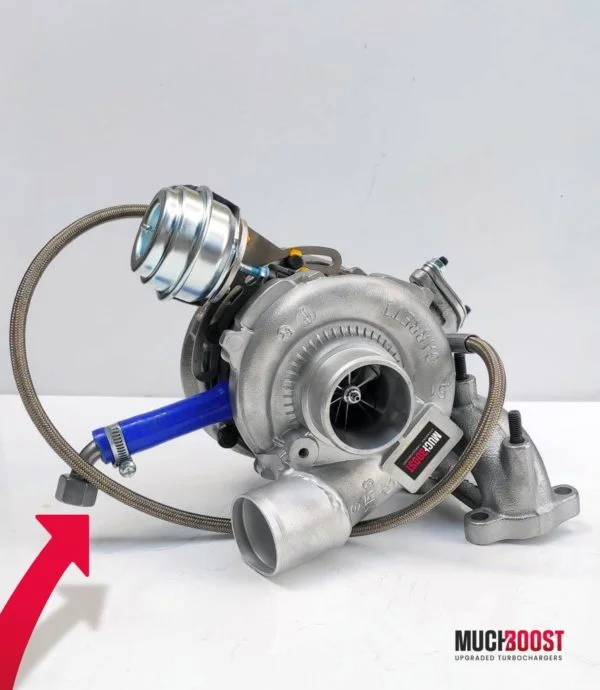

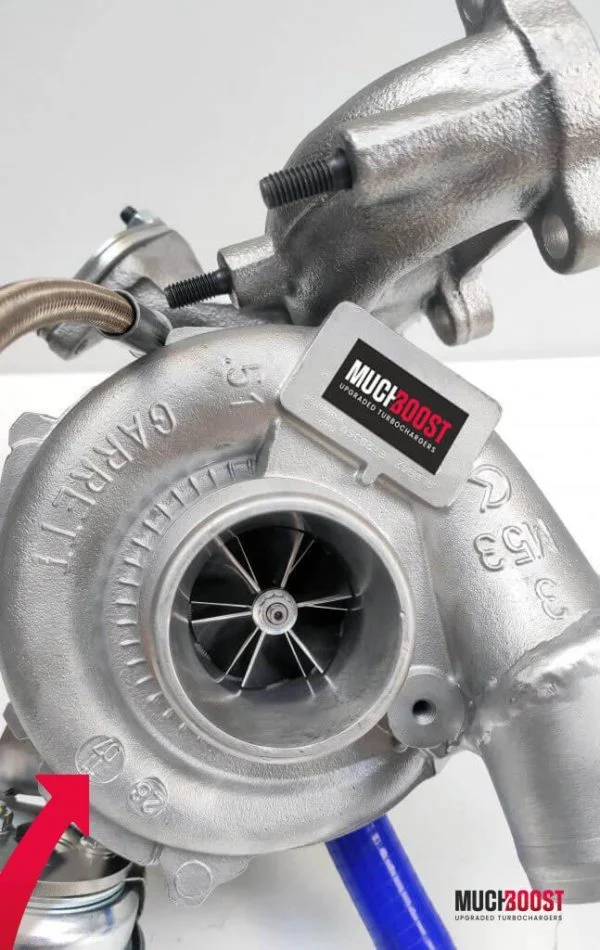

MuchBoost GTB2060VK turbocharger professionally adapted to 1.9TDI, or 2.0TDI transverse and longitudinal VE, PD, and Common Rail engines (all the engine codes are mentioned at the bottom of this page.) The turbo is equipped with a Custom Billet Compressor Wheel GEN I 6+6 blades or GEN I 10+0 blades. The turbo is based on a genuine GTB2056VK from a Mercedes 3.0CDI V6 OM642 engine.

There are both more and less powerful with later, sooner spool, respectively. GTB2056VK turbo has lower peak power but faster spool. The GTB2060VK is right in the middle. The GTB2260VK  produces higher peak power numbers with a later spool.

Main Features
  • The potential ~260HP~280HP,
  • Fast spool thanks to Billet Compressor Wheel 6+6 or 10+0 Blades,
  • Low manifold pressures at high RPM,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • GTB20VK series compressor housing.
  • GTB20VK series bearing housing.
  • GTB20VK series exhaust housing.
  • Precisely machined seal plate and compressor housing.
  • The manifold comes from KKK or Garrett turbochargers (it depends on your stock turbo).
  • 60mm High Flow Compressor Wheel 6+6 blades GEN I or 10+0 blades GEN I.
  • GTB20VK 9 blades turbine wheel.
  • The turbo is cooled by oil only.
  • Upgraded Journal bearing system that allows holding more boost.
  • The EGR is deleted.
  • Garrett 3rd generation of VNT (Variable Nozzle Turbine).
  • The VNT actuator adaptation – standard vacuum or electronic (it depends on your stock turbo).
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Mounting tips:

Steps to be performed during assembly:

  • The Installation of a larger DP (you will receive the flange with the turbocharger),
  • The Installation of Inlet&Outlet pipes (we recommend stainless steel).
Other significant modifications

The turbo is meant to work with ~260HP~280HP at 34PSI36PSI of boost. In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Compressor Wheel Top Boost Top HP
Cast 60mm 34PSI 260HP
GEN I 60mm Billet 10+0 blades 35PSI 270HP
GEN I 60mm Billet 6+6 blades 36PSI 280HP

The main difference between the wheel options:

  • 6+6 Blades – Better top range power, later spool,
  • 10+0 Blades – Faster spool.
You might also consider
Engine Codes

BKD, AZV, BKP, ECE, PDE, BSY, ALH, ASV, ASZ, ARL, BLT, BPX, AHF, ARL, ATD, AVK, AUY, AJM, AVB, AJM, AHH, ATJ, AFN, AWX, AFV, BGW, BLB, BPW, CBEA, CJAA, CFFB, CBAB, CBDA, CBDB, CBDC, CFHC, CBAA, BMN, BMR, BUY, BUZ, CBBB, CRLB, CRBC, CRBB, CUNA, CUPA, CKF, CKFC, CRMB, CUUA, CUUB, CFGB, CFFA, CLLA, CFGC, CFJB, CKRU, BRE, BRF, BVF, BVG, BLB, etc.


A set of gaskets and an oil return line are included with every option you choose!

Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.





COMPRESSOR WHEEL

CAST, BILLET 6+6 GEN I, BILLET 10+0 GEN I

ACTUATOR

STANDARD, ELECTRONIC

DP FLANGE

3 BOLT, V-BAND 2,75", V-BAND 3,00"
