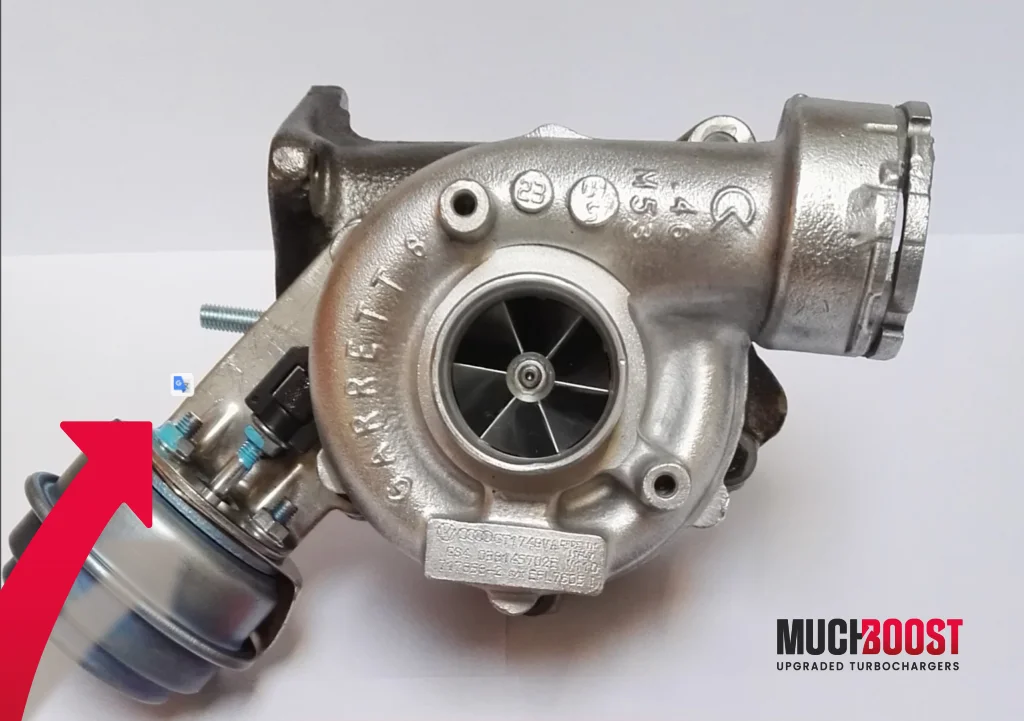

MuchBoost GT1752V Upgraded Turbocharger with an Enlarged KTS Billet Compressor Wheel and an Enlarged ARL PD150 Turbine Wheel. It is based on a genuine Garrett turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with Audi A4, A6, Skoda Superb, VW Passat with the 1.9/2.0TDI 130-140HP engines.

The turbo delivers up to 161% of stock power (80HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.

Main Features
  • The potential 210HP,

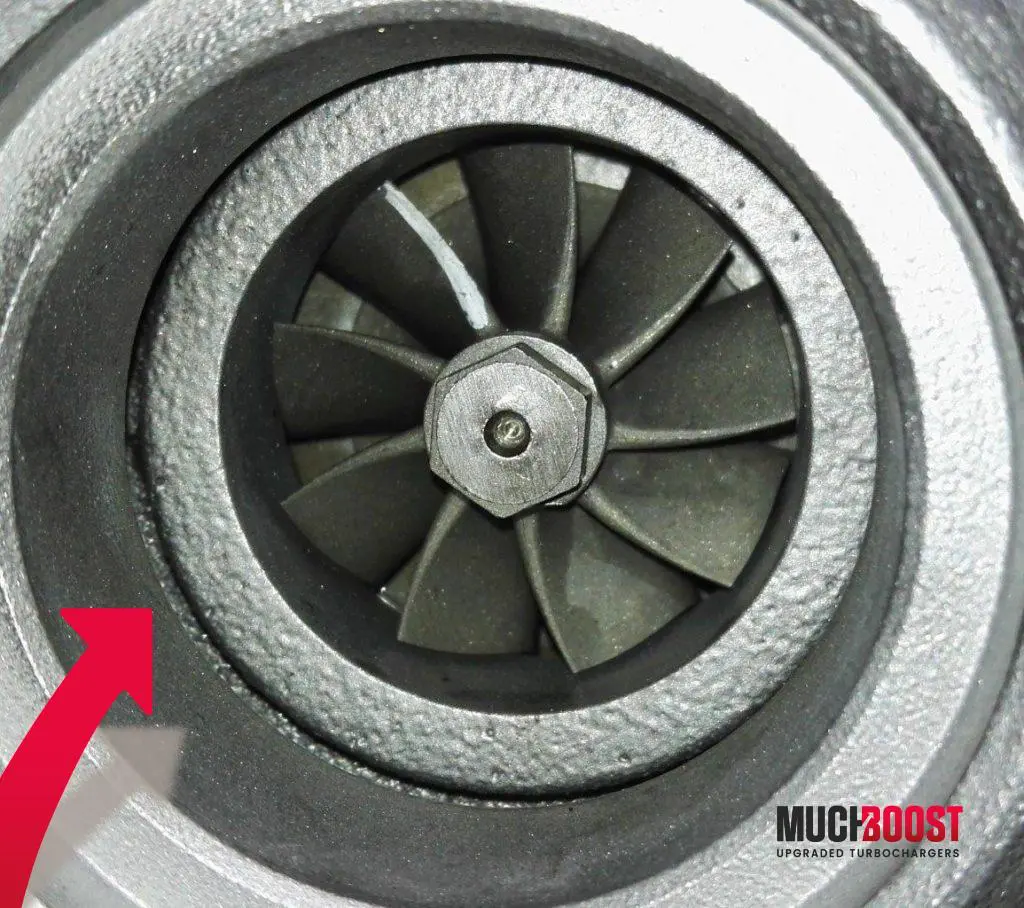

  • Fast spool thanks to enlarged Billet KTS Compressor Wheel,
  • Enlarged ARL PD150 Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:

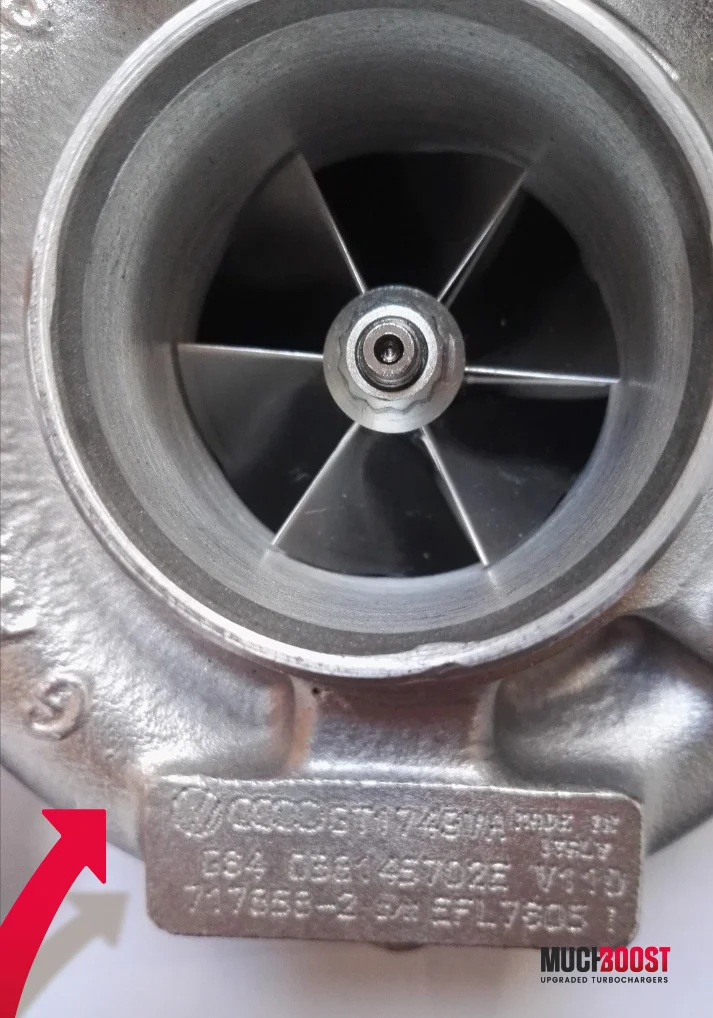

  • Modified Genuine compressor housing,
  • Precisely machined exhaust housing,
  • Genuine exhaust manifold,
  • Genuine bearing housing,
  • Upgraded Journal bearing system that allows holding more boost,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with ~210HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with the turbo!


Cars
Audi A4 1.9 TDI AFV / AWX 130HP
Audi A6 1.9 TDI AFV / AWX 130HP
Audi A4 2.0 TDI BPW 140HP
Skoda Superb I 1.9 TDI AFV / AWX 130HP
VW Passat B5 1.9 TDI AFV / AWX 130HP


Factory numbers
712077-0001
712077-1
712077-5001S
716215-0001
716215-1
716215-5001S
717858-0001
717858-0002
717858-0003
717858-0004
717858-0005
717858-0006
717858-0007
717858-0008
717858-0009
717858-1
717858-2
717858-3
717858-4
717858-5
717858-5001S
717858-5002S
717858-5003S
717858-5004S
717858-5005S
717858-5006S
717858-5007S
717858-5008S
717858-5009S
717858-6
717858-7
717858-8
717858-9
717858-9009S
Engines

AFV, AWX, BPW, BGW, BLB


OEM number
038145702E
038145702GV
038145702GX
038145702G
038145702J
038145702JV
038145702JX
038145702
038145702N
038145702NV
038145702NX
038145702EX
038145702EV
038145702X
038145702V


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
