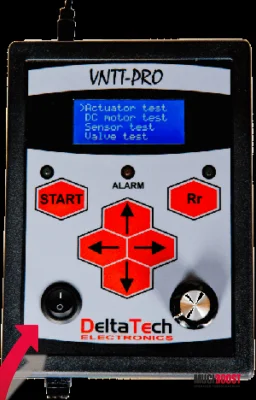

Diagnostic tester VNTT-Pro v4 for calibration / adjustment electronic controls.

The device is essential if you are going to repair the turbocharger with mounted electronic actuators.

What a tester VNTT-PRO is used for?

In addition to checking for correct operation of electronic controllers, VNTT-PRO tester can perform check of a variable geometry position sensors. Such sensors are used in turbines whose variable geometry is managed using the pneumatic valve. They provide information about the current opening vanes variable geometry.

With VNTT-PRO it is possible to perform the following tests:

  • test of electronic controllers of turbochargers with wastegate
  • test of electronic actuators of turbochargers with variable geometry (VTG, VNT)
  • test of dc motors from turbocharger actuators
  • test of wastegate position sensors or variable geometry position sensors
  • test of solenoid valves controlling turbocharging pressure, used in pneumatic systems



Tester VNTT-PRO can also be helpful in the process of adjusting the range of variable geometry.

What type of position sensors can be checked using VNTT-PRO?

You are in good hands, all leading manufacturers are included. The tester can check potentiometric sensors and inductive sensors (Hall made by:

1. Honeywell

Most popular cars with mounted Honeywell actuators:

– Audi A3,
– Golf VI,
– VW Passat,
– VW Polo 1.6TDI / 105km,
– Octavia II 2.0TDI 170HP

2. BorgWarner

Most popular cars with mounted BorgWarner actuators:
– Audi A3 2.0TDI 140HP,
– Audi A4 2.0TDI 170HP,
– Alfa Romeo MiTo 1.3 MultiJet

3. Mellet

Most popular cars with mounted Mellet actuators:
– Citroen C4, C5 II 2.0hdi 136HP engine,
– Peugeot 307, 308, 407, 607 with engine 136HP 2.0hdi

Which actuators are supported by VNTT-PRO?

VNTT PRO Tester supports actuators produced by manufacturers such as Hella, Siemens, Mitsubishi, Sonceboz, DENSO, MAHLE. They constitute a significant part of the actuators currently being used in the automotive industry.

1. HELLA Actuators

VNTT Actuator Tester supports drivers that accept control signals of type PWM and CAN, as well as the drivers that do not have their own DC motor control. These are the actuators of the following numbers:

HELLA actuators – 6NW008091, 6NW008412, 6NW009206, 6NW009228, 6NW009420, 6NW009483, 6NW009543, 6NW009550, 6NW009660, 6NW010099-01, 6NW010099-02, 6NW010099-03, 6NW010099-04, 6NW010099-05, 6NW010099-07, 6NW010099-08, 6NW010099-10, 6NW010099-16, 6NW010099-17, 6NW010099-18, 6NW010099-21, 6NW010099-24

HELLA actuators – 6NW010430-00, 6NW010430-01, 6NW010430-02, 6NW010430-03, 6NW010430-04, 6NW010430-09, 6NW010430-12, 6NW010430-17, 6NW010430-18, 6NW010430-19, 6NW010430-22, 6NW010430-25, 6NW010430-26, 6NW010430-27, 6NW010430-28, 6NW010430-29, 6NW010430-30, 6NW010430-35, 6NW010430-38, 6NW010430-39, 6NW010430-42, 6NW010430-43, 6NW010430-71, 6NW012619-22, 6NW012619-24, 6NW011132-34, 6NW015105-06, 6NW011132-02, 6NW011132-04, 6NW011132-05, 5900210-7104, 5900911-9140, 1000M-000168-087

Hella actuators – 6NW 010 430-64, 6NW 011 934-00, 6NW 011 934-02, 6NW 011 934-03, 6NW 011 132-09, 6NW 011 132-10, 6NW 011 132-22, 6NW 011 132-38, 6NW 011 132-39, 6NW 011 132-23, 1000M-000168-044, 1000M.000168-627,

SIEMENS actuators – used in VW/Audi, Mercedes, BMW cars.

MITSUBISHI actuators – used in turbochargers: 49335-002xx, 49335-004xx, 49135-056xx, 49135-057xx, 49135-058xx, 49490-93501

MITSUBISHI actuators: 1165 247 0360, 1165 268 1209, 1165 762 4535, 1165 763 0462, 1165 763 4486, 1165 763 4487, 1165 763 5804, 1165 763 6784, 1165 764 2469, 1165 863 1700, 1165 863 5804, 1165 864 3129, 1165 867 9021, 1165 948 8206, 1800 940 1722, 1855 970 0024, 1855 970 0030, 1855 970 0041, 1855 970 0043, 2470360, 2681209, 49378-02070, 49477-02010, 49477-02011, 49477-02012, 49477-02013, 49477-02020, 49477-02021, 49477-02022, 49477-02023, 49477-02024, 49477-02025, 49477-02026, 49477-02027, 49477-02028, 49477-02029, 49477-02030, 49477-02031, 49477-02032, 49477-02060, 49477-02061, 49477-02062, 49477-02063, 49477-02070, 49477-02071, 49477-02072, 49477-02104, 49477-02105, 49477-02106, 49477-02107, 49477-02108, 49477-02109, 49477-02120, 49477-02121, 49477-02122, 49477-02124, 49477-02125, 49477-02126, 7624535, 7630462, 7634486, 7634487, 7635804, 7636784, 7642469, 793486, 832626-0004, 832626-5004S, 840069-0003, 840069-0004, 840069-0005, 840069-0006, 840069-0014, 840069-0015, 840069-5014S, 840069-5015S, 841901-0017, 841902-0018, 8631700, 8635804, 8643129, 9488206, 144118020RA, 144118020RD, 858864-0004, 858864-0008, 858864-5004S, 858864-5008S

SONCEBOZ actuators – used in turbochargers: 5304970006x, 53049700073, 5304970011x, 5439970006x, 5439970011x, 5304988006x, 53049880073, 5304988011x, 5439988006x, 5439988011x

DENSO actuators – used in turbochargers: 780709-0003, 780708-0002, 17201-30100, 17201-30101, 17201-30110, 17201-30160

MAHLE actuators – used in turbochargers: 04E145713, 04E145721, 04K145702, 06K145701, 06K145702, 06K145722, 06K145874, 9V204, 9VA04, 9VA05, 9VA049, IS20, 0PB145701, 0PB145702, 1855970005x

HITACHI actuators – used in turbochargers: 53049700062, 53049880062

CONTINENTAL actuators – used in turbochargers: 49477-01012, 49477-01104, 49477-01202, 49477-01203, 49477-01204, 1000 970 0210, 1000 970 0268, 1000 970 0284, 1000 970 0324,

MAGNETI MARELLI actuators – used in turbochargers: 05E145701E, 05L253019P, 078087-0004, 847009-0006, 847009-5006S, 838417-0002, 838417-0003, 838417-5002S, 838417-5003S, 850226-0004, 850226-5004S, 850840-0007, 850840-5007S, 856943-0006, SH18-13700-B, 845275-0001, 845275-0002, 845275-5001S, 845275-5002S, 845780-0003, 46340583, 860517-0002, 860517-5002S

KAMTEC actuators – used in turbochargers: 28231-04500, 28231-2GTD0, 50124-01022, 839827-0001, 839827-0003, 839827-0005, 839827-0007, 839827-0008, 839827-0009, 860103-0005, 870248-0002, 870248-5002S, 887157-0001, 9825982080, 9836081180, 46340583, 860517-0002, 860517-5002S, 860103-0005, 870248-0002, 870248-5002S, 887157-0001, 9825982080, 9836081180

BOSCH actuators: 1857 970 0001, 50033989, K2GE-9G438-BC, K2GE-9G438-BD



How long and which car manufacturers are using controllers in turbochargers?

The process started in 2003. Turbochargers with actuators are widely used in car manufacturers such as Audi, VW, Mercedes, BMW, Ford, Jaguar, Jeep Chrysler, Nissan, Citroen, Chevrolet and others.

What can I check the tester VNTT-PRO?

Tester VNTT-PRO allows you to check:

  1. traffic flow control lever,
  2. resistance movement of the lever,
  3. the range of motion of the lever,
  4. mechanical components and on electronics controller,
  5. DC motor controllers used in turbochargers to change the position of the lever,
  6. correct settings scope of variable geometry,
  7. the proper operation of the position sensor variable geometry,
  8. the proper operation of the controller’s internal temperature sensor (only some drivers Hella)
  9. vacuum regulator valve turbo boost
  10. For drivers made by Hella and Siemens, the tester also allows the identification of the driver or the brand of car it is used in.

According to the assurances of manufacturers of turbochargers, the controller is an integral part of the turbine and as such can not be repaired or exchanged, only the entire turbine. With the tester it is possible to determine, sometimes very prosaic cause of the malfunction  and to attempt to repair.

Who is VNTT-PRO tester for?

Tester VNTT-PRO can be successfully used by the companies involved in the regeneration of turbochargers and in showrooms offering a wide range of repairs in order to diagnose the fault of the turbocharger.

Has the Tester original connectors for drivers?

The tester has connectors for original drivers from Hella, Siemens, Mitsubishi, Mitsubishi (BMW), Sonceboz and MAHLE.

For drivers DENSO and Mitsubishi (Ford / PSA), the connector allowing the driver to be plugged is a universal one.

What kind of power requires a tester?

Tester VNTT-PRO tolerate voltages within a range of 12 to 15V. The voltage source should have a minimum current efficiency of 4A.

Supplied with the tester stabilized power supply is designed to power the tester.

Is it possible to update online?

Yes. Simply plug the tester to the USB port of any PC or laptop that has access to the Internet and run the updater (CD included). Details of the update are provided in the device manual.

What is included in the package?



  1. VNTT-PRO tester
  2. set of cables to support all the actuators listed above
  3. geometry position sensor connection cable for VW/Audi (type 1)
  4. geometry position sensor connection cable for VW/Audi (type 2)
  5. geometry position sensor connection cable for Opel, Fiat, Alfa Romeo
  6. geometry position sensor connection cable for Citroen, Peugeot.
  7. geometry position sensor connection cable for Ford
  8. universal connection cable for DC motors and boost control solenoid valves
  9. DC power supply
  10. USB cable for firmware update
  11. User Manual – link for download



Shipping courier with insurance free of charge, only payment by bank transfer. The waiting time to 3 days.

We are able to offer each tester’s DeltaTech electronics at competitive prices.
If you need more information or the manual please do not hesitate to contact us!
