  • D4204T 2.0D Hybrid Bi-Turbo Upgrade Volvo S60 II, S80 II, S90 II, V40 II, V60 II, V70 II, V90 II, XC40, XC60, XC70 II, XC90 II
+
Add to Wishlist
Add to Wishlist

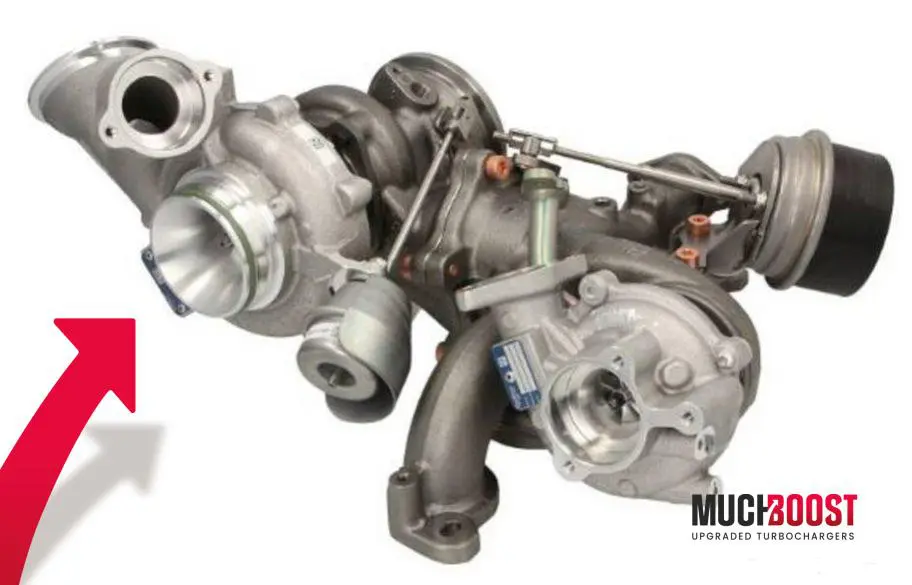

MuchBoost D4204T BiTurbo Upgraded Turbochargers with a Custom Billet Compressor Wheel 6+6 Blades, and Clipped and Lightned/Enlarged High-Flow 9 Blades Turbine Wheel. They are based on original BorgWarner turbochargers, which means that the installation is 100%P&P. The turbocharger is meant to work with Volvo S60 II, S80 II, S90 II, V40 II, V60 II, V70 III, V90 II, XC40 I, XC60 I/II, XC70 II, and XC90 with an D4204T Bi-Turbo engine.

The turbo delivers up to 233% power (200 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 300HP to 350HP.



MuchBoostD4204T Bi-Turbo 300

Upgraded turbocharger with an estimated ~300HP at the crank. List of modifications:

Small Turbo:

  • The dimensions are the same,
  • Turbo is fully refurbished

Big Turbo:

  • Precisely machined seal plates and compressor housing,
  • Genuine BorgWarner compressor housing,
  • Genuine BorgWarner bearing housing,
  • Genuine BorgWarner exhaust manifold,
  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • Genuine BorgWarner actuator
  • More efficient and larger Billet Compressor Wheel 6+6 Blades,
  • Clipped and Lightened genuine Turbine Wheel,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost D4204T Bi-Turbo 350

Upgraded turbocharger with an estimated potential of ~350HP at the crank. Modifications compared to the 300 option are the same except:

  • Bigger Compressor Billet Wheel,
  • Larger High-Flow 9 blades Turbine Wheel,
  • Precisely machined exhaust housing.
Other Significant Modifications

To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.


A set of gaskets is included with every option you choose!


Cars

Volvo S60 II D4 – 190HP
Volvo S60 II D5 – 225HP
Volvo S80 II D4 – 190HP
Volvo S90 D4 – 190HP
Volvo S90 D5 – 235HP
Volvo V40 II D4 – 190HP
Volvo V60 I D4 – 163-190HP
Volvo V60 I D5 – 225HP
Volvo V60 II D4 – 190HP
Volvo V70 III – 163-181HP
Volvo V90 D4 – 190HP
Volvo V90 D5 – 235HP
Volvo XC40 D4 – 190HP
Volvo XC60 I D4 – 190HP
Volvo XC60 II D5 – 235HP
Volvo XC60 II D3 – 150HP
Volvo XC70 II D4 – 163-181HP
Volvo XC90 II D4 – 190HP
Volvo XC90 II D5 – 225/235HP


Factory numbers

10009700091
10009700118
10009700228
10009700354
10009880091
10009880228
10009980228
16359700004
16359700015
18509700002
18509700002
1000 970 0091
1000 970 0118
1000 970 0228
1000 970 0354
1000 988 0091
1000 988 0228
1000 998 0228
1635 970 0004
1635 970 0015
1850 970 0002
1850 970 0002
1000-970-0091
1000-970-0118
1000-970-0228
1000-970-0354
1000-988-0091
1000-988-0228
1000-998-0228
1635-970-0004
1635-970-0015
1850-970-0002
1850-970-0002
10009700111
10009700150
10009700162
10009700178
10009700218
10009700331
10009880111
10009880150
10009880162
10009880178
10009880218
10009880331
16389700015
16389700021
16389700022
16389700041
18539700022
18539700041
18539700071
18539880022
18539880041
18539880071
1000 970 0111
1000 970 0150
1000 970 0162
1000 970 0178
1000 970 0218
1000 970 0331
1000 988 0111
1000 988 0150
1000 988 0162
1000 988 0178
1000 988 0218
1000 988 0331
1638 970 0015
1638 970 0021
1638 970 0022
1638 970 0041
1853 970 0022
1853 970 0041
1853 970 0071
1853 988 0022
1853 988 0041
1853 988 0071
1000-970-0111
1000-970-0150
1000-970-0162
1000-970-0178
1000-970-0218
1000-970-0331
1000-988-0111
1000-988-0150
1000-988-0162
1000-988-0178
1000-988-0218
1000-988-0331
1638-970-0015
1638-970-0021
1638-970-0022
1638-970-0041
1853-970-0022
1853-970-0041
1853-970-0071
1853-988-0022
1853-988-0041
1853-988-0071

Engines

D4204T4, D4204T5, D4204T12, D4204T14, D4204 T4, D4204 T5, D4204 T12, D4204 T14, D 4204 T6, D 4204 T11, D 4204 T23


OEM number

31293600
31361654
31361654
31361655
31361655
31397999
31441451
31459962
36010048
36010079
36010303
36050833
36050834
32240493
31293653
31431983
31441451
31459963
31492976
36003120
36010079
36010080
36050835
36050836
50689818



Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
