CKR 2.0TDI Hybrid Turbo Upgrade Volkswagen Passat B7, Seat Ibiza V
1298,88 €
In Stock

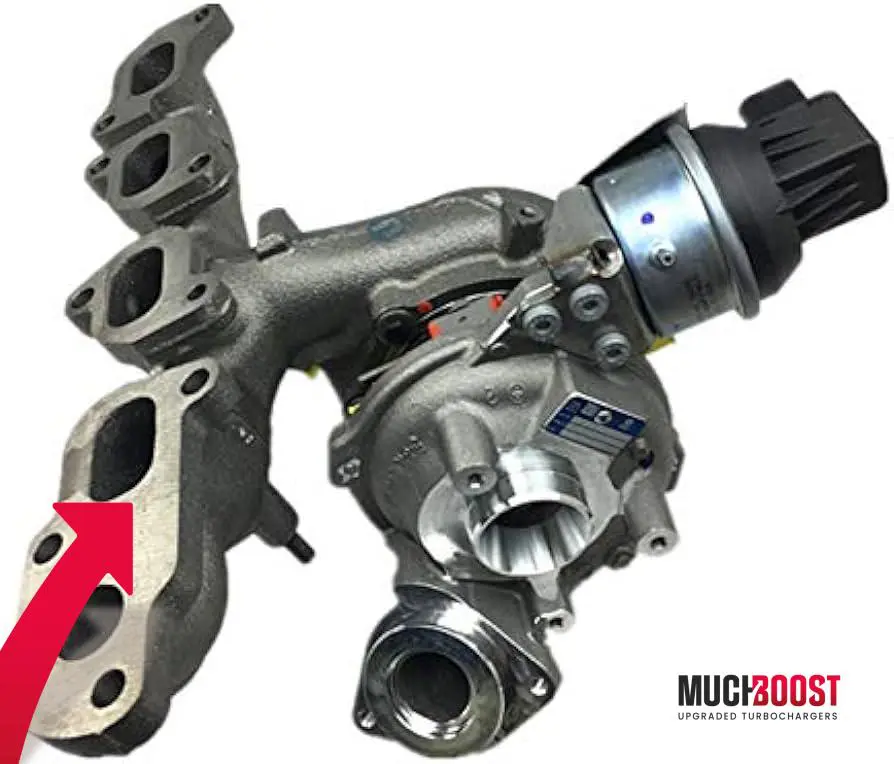

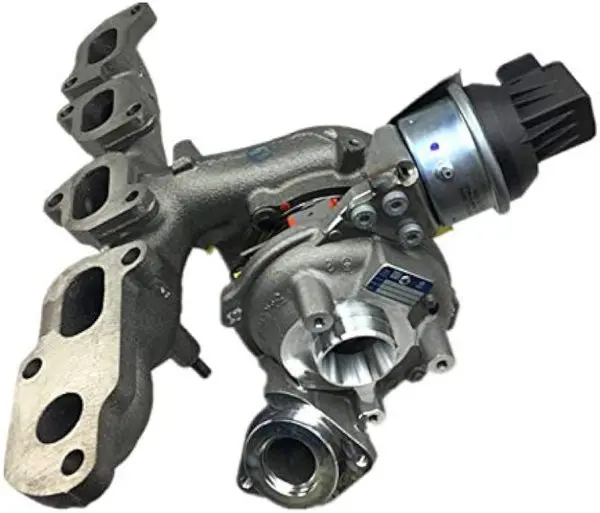

MuchBoost 2.0TDI CKR Upgraded Turbocharger with a Custom Billet Compressor Wheel. It is based on an original BorgWarner Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with VAG vehicles with the 2.0TDI CKR 136-140HP engines. The turbo delivers up to 161% power (84 extra HP) over the factory specs. It […]
MuchBoost 2.0TDI CKR Upgraded Turbocharger with a Custom Billet Compressor Wheel. It is based on an original BorgWarner Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with VAG vehicles with the 2.0TDI CKR 136-140HP engines.
The turbo delivers up to 161% power (84 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
Main Features
- The potential ~220HP,
- Fast spool thanks to Custom Billet Compressor Wheel.
Details on the construction of the turbo:
- Genuine BorgWarner compressor housing,
- Genuine BorgWarner exhaust manifold,
- Genuine BorgWarner bearing housing,
- Original BorgWarner actuator,
- Upgraded Journal bearing system that allows holding more boost,
- Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications
In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
A set of gaskets is included with the turbo!
Cars
VW Passat B7 2.0TDI – 136-140HP
Factory numbers
54409700005,
54409880020,
54409700020,
54409880035,
54409700035,
BV40E-0005,
54409700027,
54409900005,
54409900020,
54409900027,
54409900035,
54409800035,
54409800005,
BV40E-0020,
BV40E-0035,
BV40-0035,
54409800027,
54409800020,
54409880027
Engines
CKR, CKRA, CKRU
OEM number
03L253056E,
03L253056EV,
03L253056EX,
03L253056Q,
03L253056QV,
03L253056QX,
03L253010,
03L253056M,
03L253056MV,
03L253056MX,
03L253010JX,
03L253010JV,
54409880005,
54409700005,
54409880020,
54409700020,
54409880035,
54409700035,
54409800027,
54409800020,
54409880027,
54409900005,
54409900020,
54409900027,
54409900035,
54409800035,
54409800005,
54409700027
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
- The warranty is 12 months without the limit of mileage.
- We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
