  • 3.0 TDV6 Hybrid Turbo Upgrade Land Rover Discovery, Jaguar XF IV,
+
Add to Wishlist
Add to Wishlist

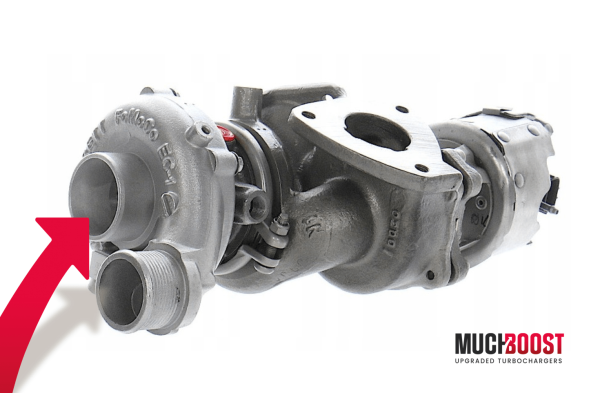

MuchBoost 3.0 TdV6 Upgraded Turbocharger with a Custom Billet Compressor Wheel and Clipped/Larger Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Land Rover Discovery IV and Jaguar XF with the 3.0 TDV6 211-275HP engines.

The turbo delivers up to 184% power (179 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 350HP to 390HP.

MuchBoost 3.0 TDV6 350

Upgraded turbocharger with an estimated ~350HP at the crank. List of modifications:

  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • More efficient and larger Billet Compressor Wheel,
  • Clipped and Lightened Turbine Wheel,
  • Genuine Garrett compressor housing,
  • Genuine Garrett bearing housing,
  • Genuine Garrett exhaust manifold,
  • Original Hella actuator,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost 3.0 TDV6 390

Upgraded turbocharger with an estimated potential of 390HP at the crank. Modifications compared to the 350 option are the same except:

  • Bigger Compressor Billet Wheel,
  • Bigger Turbine Wheel.
Other significant modifications

In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with every option you choose!


Cars
Land Rover Discovery IV – 211-245HP
Jaguar XF 3.0 D – 275HP


Factory numbers

778401-5012S
778401-5011S
778401-5010S
778401-5008S
778401-5006S
778401-0008
778401-0006
778401-0005
778400-5005S
778400-5004S
778400-5003S
778400-0005
778400-0004
778400-0003
778402-5010S
778402-5008S
778402-5006S
778402-5005S
778402-5004S

Engines

3.0 TDV6


OEM number

LR063777
LR056370
LR038620
LR032370
LR029236
LR021254
LR013205
LR056369
LR029915
LR013202
AX2Q6K682CB
AX2Q6K682CA
AX2Q6K682BH
AX2Q6K682BF
AX2Q6K682BE
AX2Q6K682BD
AX2Q6K682BC


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

350HP, 390HP
