  • 2.0TDI CR CFHC, CFHD Hybrid Turbo Upgrade Audi A1, Seat Altea, Seat Ibiza, Octavia, VW Passat, Scirocco, Touran
+
Add to Wishlist
Add to Wishlist

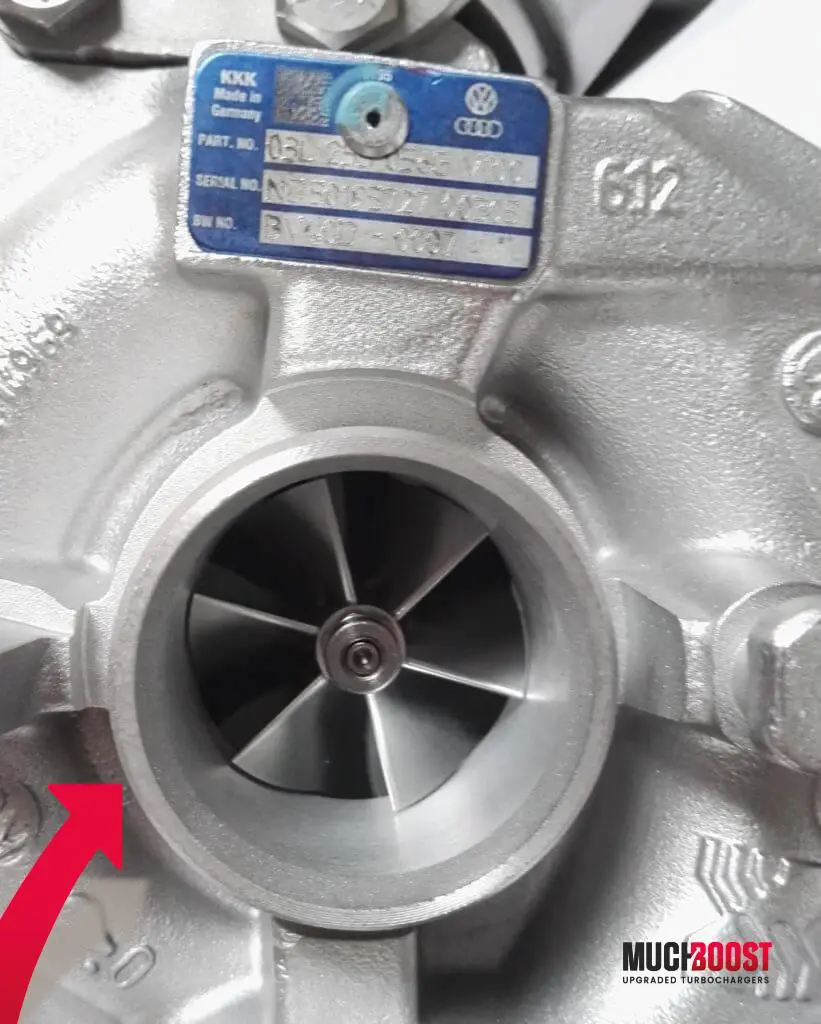

MuchBoost 2.0TDI CR Upgraded Turbocharger with a Custom Billet Compressor Wheel 6+6 Blades. It is based on an original KKK Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with VAG vehicles with the 2.0TDI CR 140HP engines.

The turbo delivers up to 157% power (80 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

Main Features
  • The potential ~220HP,
  • Fast spool thanks to Custom Billet Compressor Wheel 6+6 Blades,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • Machined KKK seal plate,
  • Genuine KKK compressor housing,
  • Genuine KKK exhaust manifold,
  • Genuine KKK bearing housing,
  • Original KKK actuator,
  • Upgraded Journal bearing system that allows holding more boost,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example Project

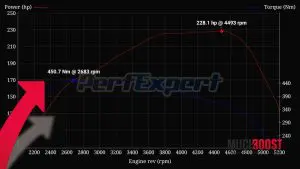

One of our clients managed to produce 228HP and 450Nm of torque with this turbo. Please see the dyno graph below:


A set of gaskets is included with the turbo!


Cars
A1 2.0 TDI 143HP
Seat Altea 2.0TDI 140HP
Seat Ibiza IV 2.0TDI 140HP
Skoda Octavia II 2.0 TDI 140HP
Volkswagen Touran 2.0 TDI 140HP
Volkswagen Passat B7 2.0 TDI 140HP
Volkswagen Scirocco 2.0 TDI 140HP


Factory numbers

5440 988 0037
5440 970 0037
5440 988 0022
5440 970 0022
5440 988 0003
5440 970 0003
5440 988 0008
5440 970 0008
5440 988 0036
5440 970 0036
5440 988 0021
5440 970 0021
5440 988 0007
5440 970 0007
5440 988 0002
5440 970 0002

Engines

CFHC, CFHD


OEM number

03L253010H
03L253010HX
03L253010HV
03L253056S
03L253056F
03L253019R
03L253010G
03L253010GX
03L253010GV
03L253056T
03L253056G
03L253019P


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
