  • EA111 1.4TSI Hybrid Turbo Upgrade VW Golf VI CAXA, CNVA
+
Add to Wishlist
Add to Wishlist

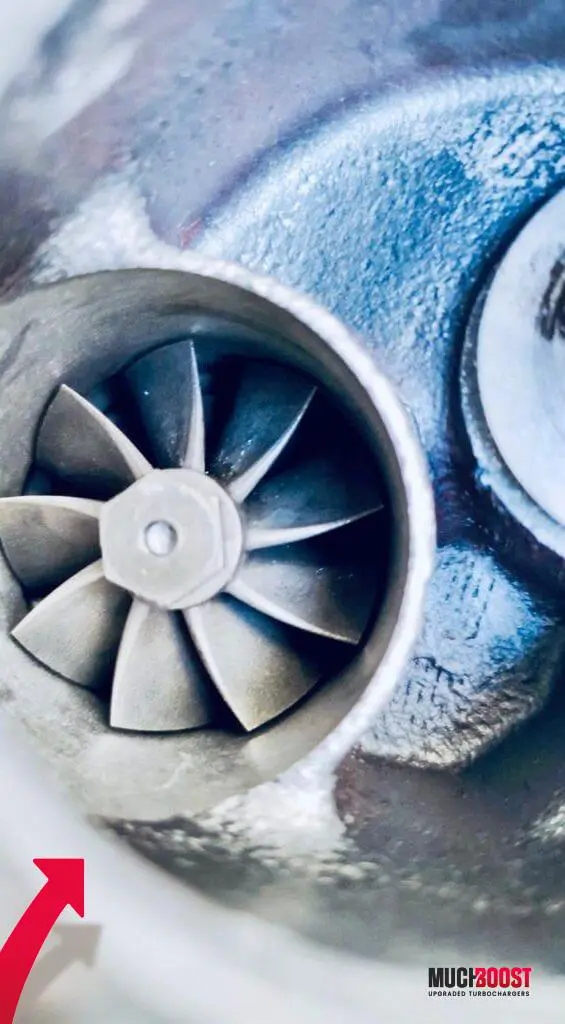

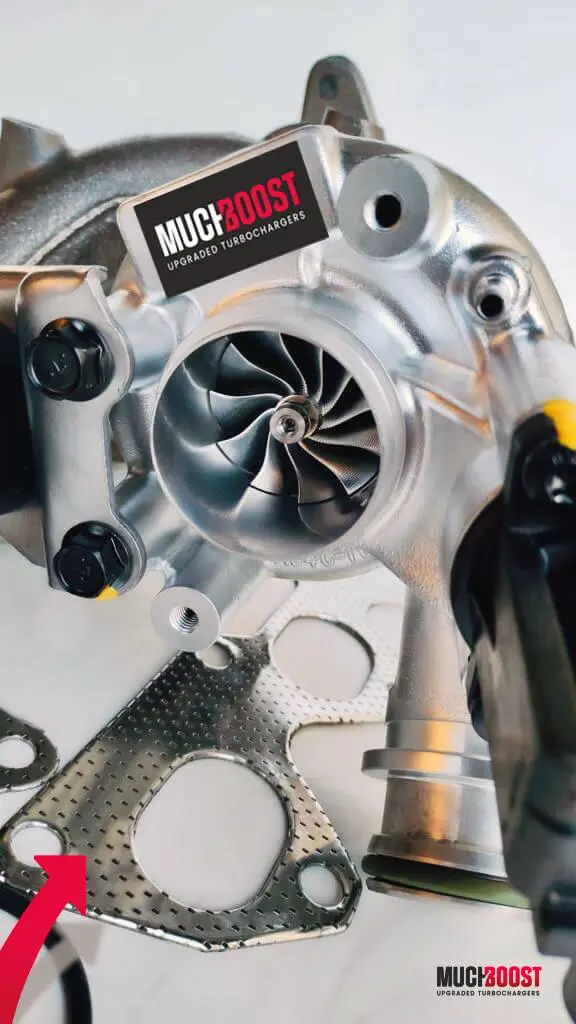

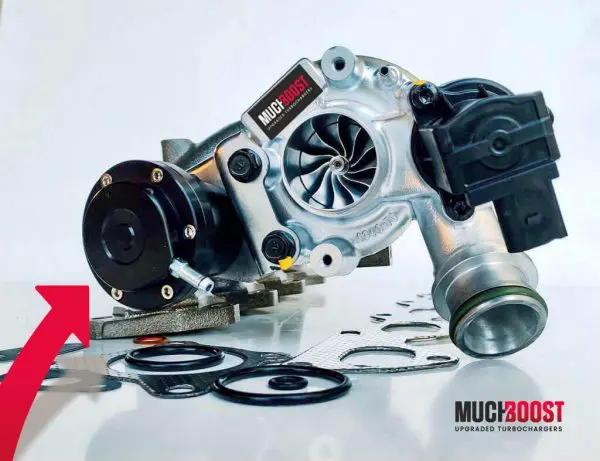

MuchBoost EA111 Upgraded Turbocharger with a Custom Billet Compressor Wheel and a Clipped and Lightened Turbine Wheel. It is based on an original Mitsubishi Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A3 8P, VW Golf VI, Seat Leon, Skoda Octavia, and others with the EA111 122HP engines.

The turbo delivers up to 204% power (128 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 3 modification options that allow you to reach anywhere from 210HP to 250HP.

MuchBoost EA111 210

Upgraded turbocharger with an estimated ~210HP at the crank. List of modifications:

  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • Reinforced actuator
  • More efficient and larger Billet Compressor Wheel,
  • Genuine Clipped and Lightened Turbine Wheel,
  • Genuine Mitsubishi compressor housing,
  • Genuine Mitsubishi bearing housing,
  • Genuine Mitsubishi exhaust manifold,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost EA111 230

Upgraded turbocharger with an estimated potential of ~230HP at the crank. Modifications compared to the 210 option are the same except:

  • Bigger Compressor Billet Wheel,
  • Bigger Turbine Wheel,
  • Precisely machined exhaust housing.
MuchBoost EA111 250

Upgraded turbocharger with an estimated potential of ~250HP at the crank. Modifications compared to the 230 option are the same except:

  • Bigger Compressor Billet Wheel,
  • High-Flow 9 Blades Turbine Wheel.
Other significant modifications

The turbo is meant to work with ~220-250HP In order to reach that level of power, you need to adjust your fuel, exhaust, intake, and cooling systems as well. For this turbo to work correctly you will also need to get an EBC (external boost controller) installed.

Example project

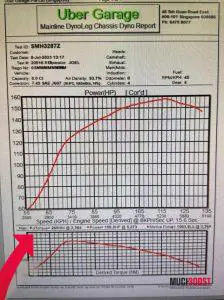

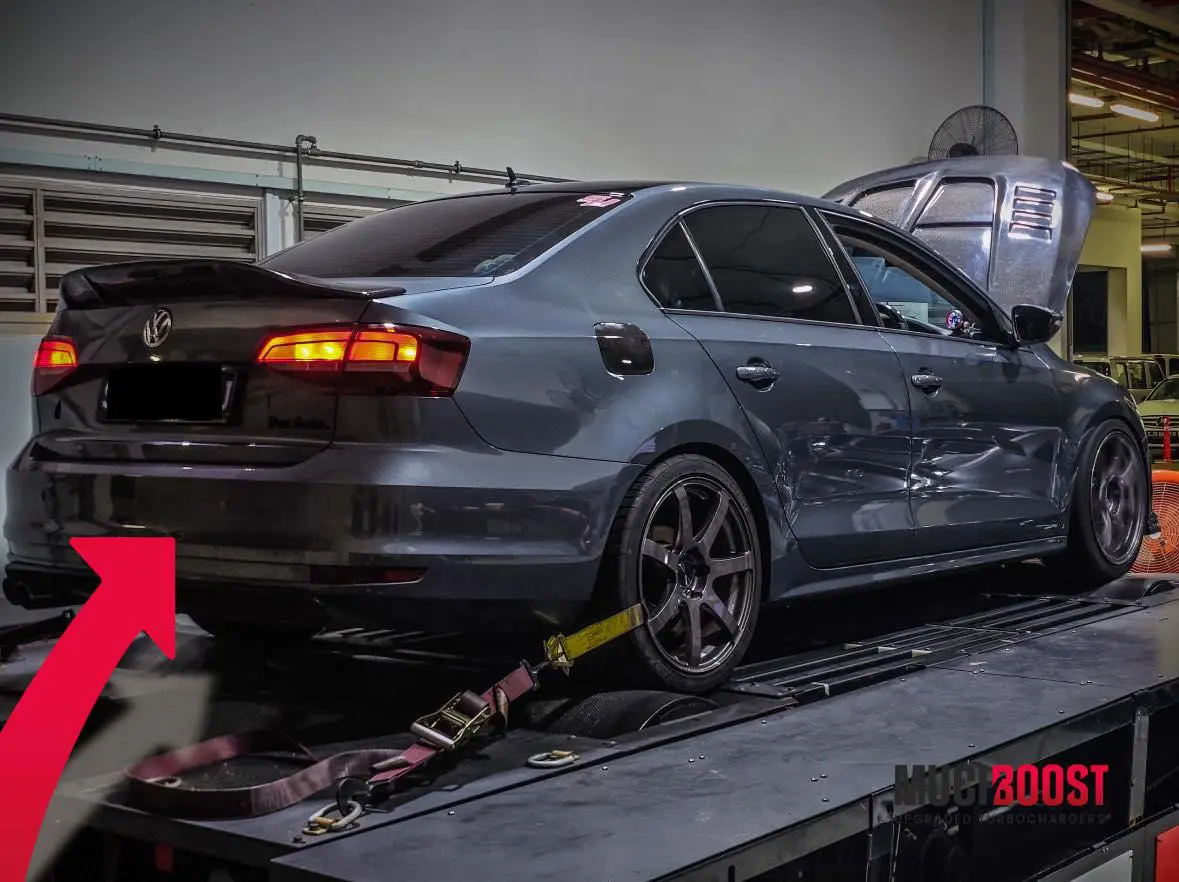

A great example of our turbo at work is a VW Jetta with 204HP and 328Nm of torque. Dyno graph below.

Another example with our turbo managed to achieve 158HP and 260Nm of torque at the wheels. Dyno graph below:

Again, one of our clients, with the 210 HP option, managed to produce 164 HP at the wheels and 260 Nm of torque. The car was also equipped with:

  • AVP Motorsport More-BHP ECU 3_95Ron
  • AVP Motorsport More-BHP TCU 3
  • MST Air Intake
  • Catless Downpipes
  • WMI

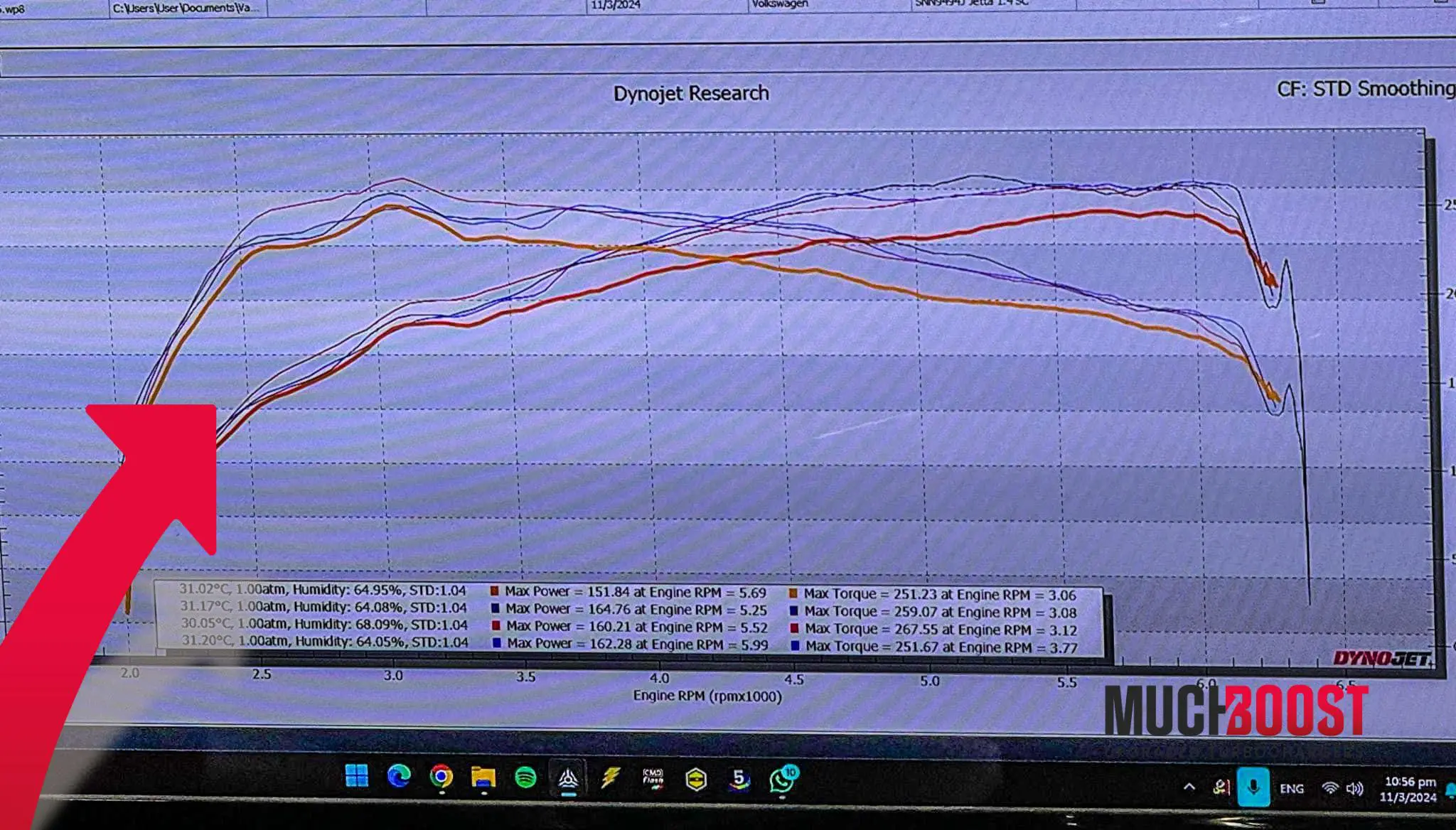

Please see the dyno graph below.

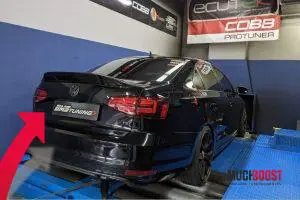

Another great project from one of our clients, that we would like to showcase, produced 271HP and 304Nm of torque @1.6Bar on 98 RON fuel. In addition to the 250HP Hybrid Turbo option, the car was also equipped with:

  • WMI,
  • RTS water-to-air cooler,
  • Upgraded RTS fuel pumps (HPFP/LPFP),
  • Intake,
  • Upgraded exhaust system,
  • Downpipe.

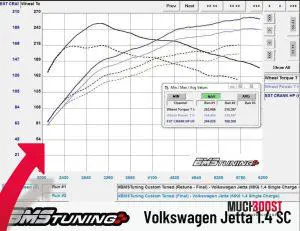

Please take  a look at the dyno graph below:


A set of gaskets is included with every option you choose!


Cars
Audi A1 1.4 TSI (8X) 122HP
Audi A3 1.4 TSI (8P/PA) 122HP
Seat Altea 1.4 TSI 122HP
Seat Leon 1.4 TSI 122HP
Skoda Octavia II 1.4 TSI 122HP
Volkswagen Golf V 1.4 TSI 122HP
Volkswagen Golf VI 1.4 TSI 122HP
Volkswagen Jetta V 1.4 TSI 122HP
Volkswagen Jetta VI 1.4 TSI 122HP
Volkswagen Passat B6 1.4 TSI 122HP
Volkswagen Scirocco 1.4 TSI 122HP
Volkswagen Tiguan 1.4 TSI 122HP
Volkswagen Touran 1.4 TSI 122HP


Factory numbers

49373-01005
49373-01004
49373-01003
49373-01002
49373-01001
49T73-01005

Engines

CAXA, CNVA


OEM number

03C145702L
03C145702C
03C145702A
03C145701R
03C145701N
03C145701J


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

210HP, 230HP, 250HP
