  • 2.5TFSI CEPA/CEPB Hybrid Turbo Upgrade Audi RS3 8PA/8V, Audi RSQ3 8U, Audi TTRS 8J
+
Add to Wishlist
Add to Wishlist

MuchBoost 2.5 TFSI CEPA Upgraded Turbocharger with a Custom 6+6 blades Billet Compressor Wheel and an Enlarged KKK K24 or 9 blade Turbine Wheel. It is based on an original KKK turbocharger. The turbocharger is meant to work with Audi RS3 8PA, 8V, TTRS 8J, RSQ3 8U equipped with the 2.5TFSI CEPA/CEPB/CZGB 340-367HP engine.

The turbo delivers up to 161% (210HP extra) over the factory specs. It is a great choice for someone looking for a more sporty feel and more power. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

The turbo delivers up to 550HP which means it could be perfect for a faster daily driver, to gain some additional power.

Main features
  • The potential 550HP,
  • Low manifold pressures at high RPM,
  • High air-fuel ratio including high peak torque achieved at low engine speeds,
  • Upgraded journal bearings system that allows the turbo to hold more boost.
Details on the construction of the turbo:

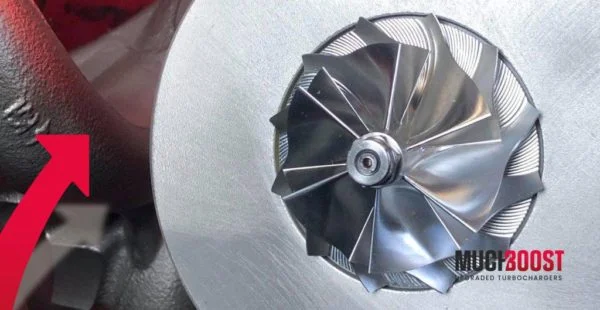

  • Custom Billet Compressor Wheel 6+6 Blades,
  • Enlarged Turbine Wheel KKK K24 or 9 Blades one,

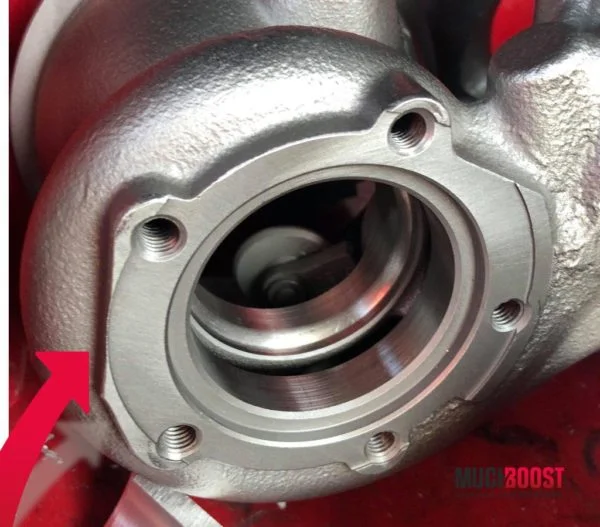

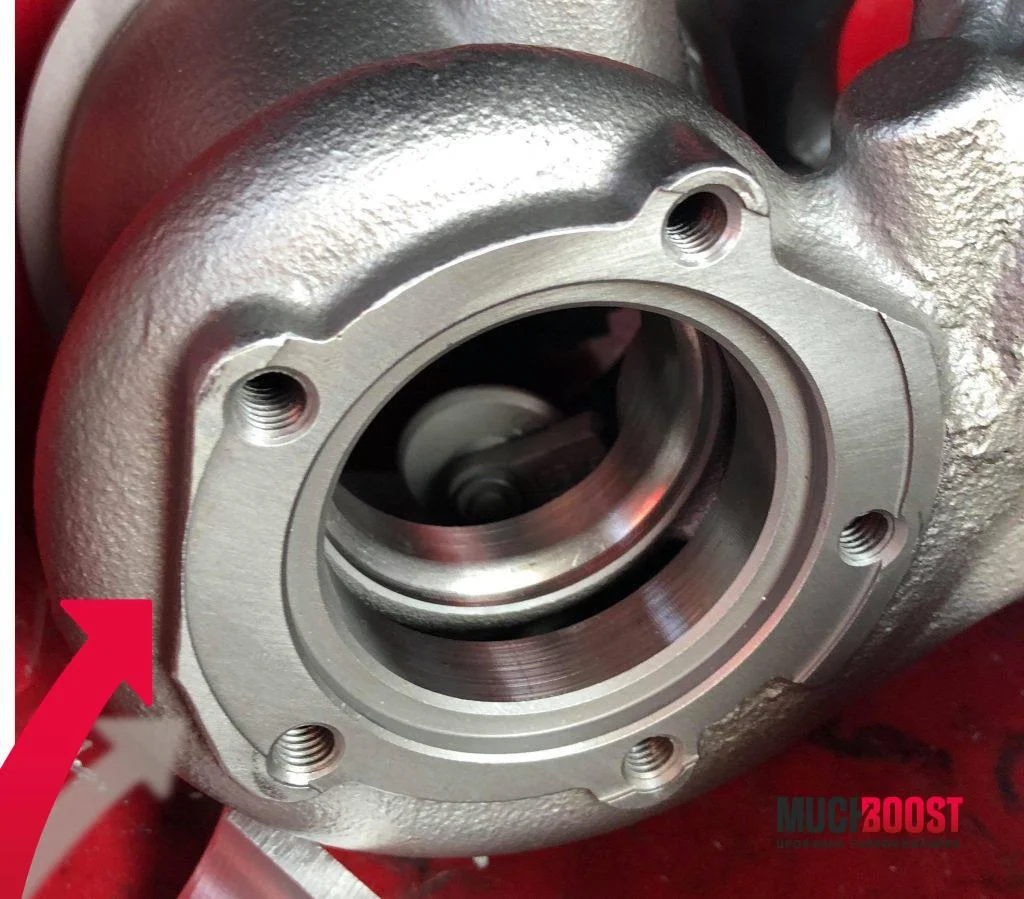

  • Precisely machined exhaust housing,
  • Genuine Modified KKK compressor housing,
  • Genuine KKK bearing housing,
  • Genuine KKK exhaust manifold,
  • Reinforced actuator,
  • Enlarged Billet Compressor Wheel,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.

9 Blades Turbine Wheel provides a better spool, while the K24 Wheel allows for better top-end performance.

Other Significant Modifications

To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.

The one thing required to fit this turbo is a modification of The Inlet Pipe.

Example project:

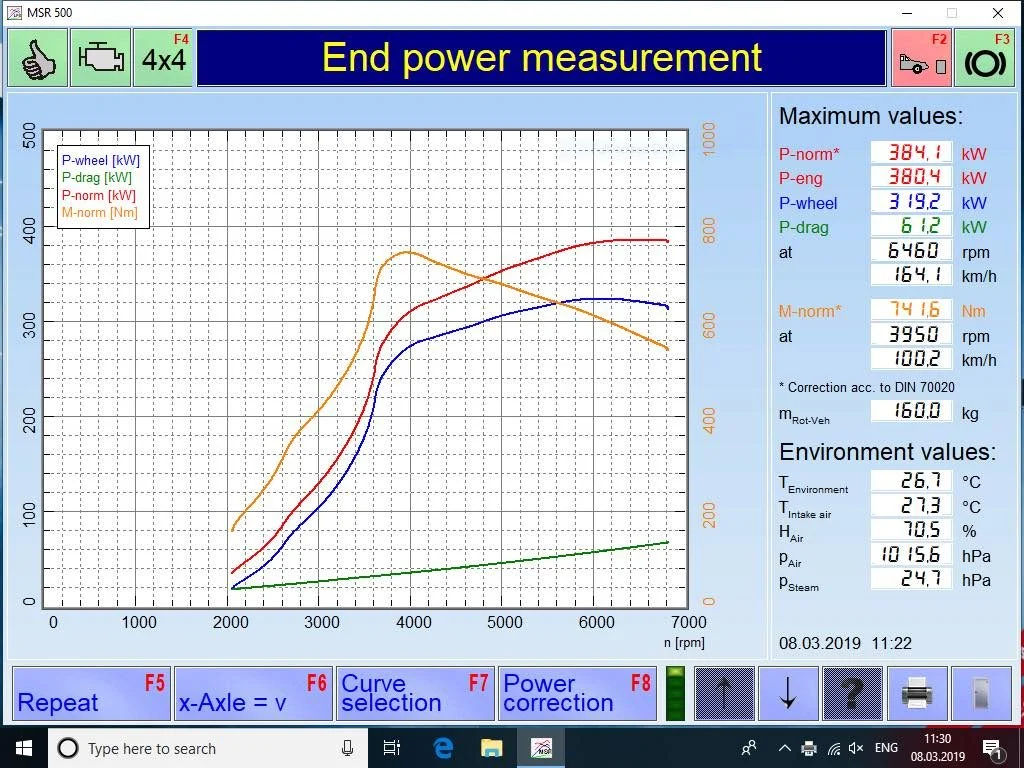

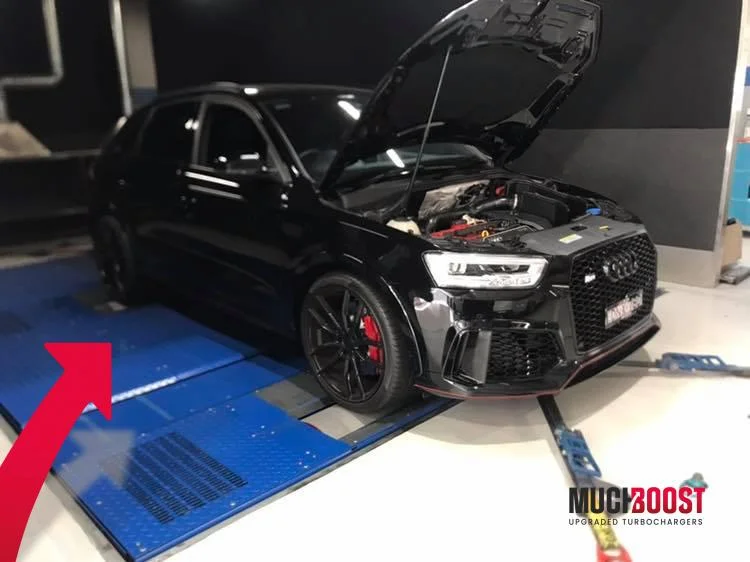

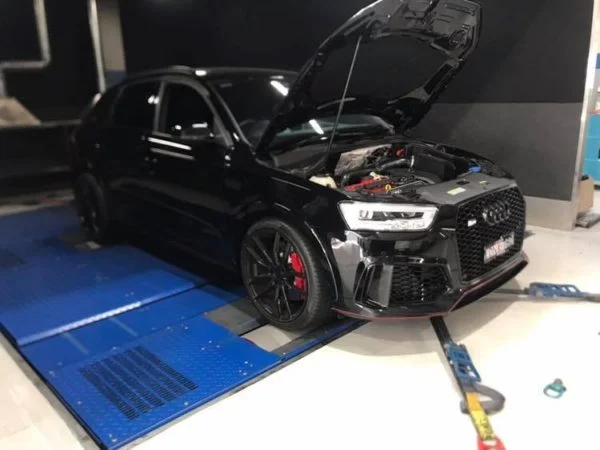

One of our clients managed to produce 427HP at the wheels and 740Nm with our turbo. Dyno graph below:



You might also consider

2.5 TFSI De-Cat Downpipe Audi RS3 8P TTRS 8J Audi RSQ3 8U


A set of gaskets is included with every option you choose!


Cars

Audi RS3 8PA, 2,5TFSI 340HP
Audi RS3 8V, 2,5TFSI 367HP
Audi RSQ3 8U, 2,5TFSI 340HP
Audi RSQ3 8U, 2,5TFSI 367HP
Audi TT RS 8J, 2,5TFSI 340HP
Audi TT RS 8J, 2,5TFSI 360HP


Engines

CEPA R5, CEPB R5, CZGB

Factory numbers

1855 988 0000
1855 970 0000


OEM numbers

07K145701B
07K145701A
07K145701C


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
  1. The warranty is 12 months without the limit of mileage.
  2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
  3. Every parcel is fully insured.
  4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
  5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
  6. During placing your order, please provide information as follows:
  • the engine code,
  • the car model,
  • the stock power,
  • the VIN number

These details are helpful to make the turbo correctly.


* Just upgrade option means that we will modify your turbochargers once you sent them to us. The turbo can’t be cracked and must be genuine.

Complete turbo option is for those who want to buy a fully built turbo set ready to install in the car.

TURBINE WHEEL

KKK K24, 9BLADES
