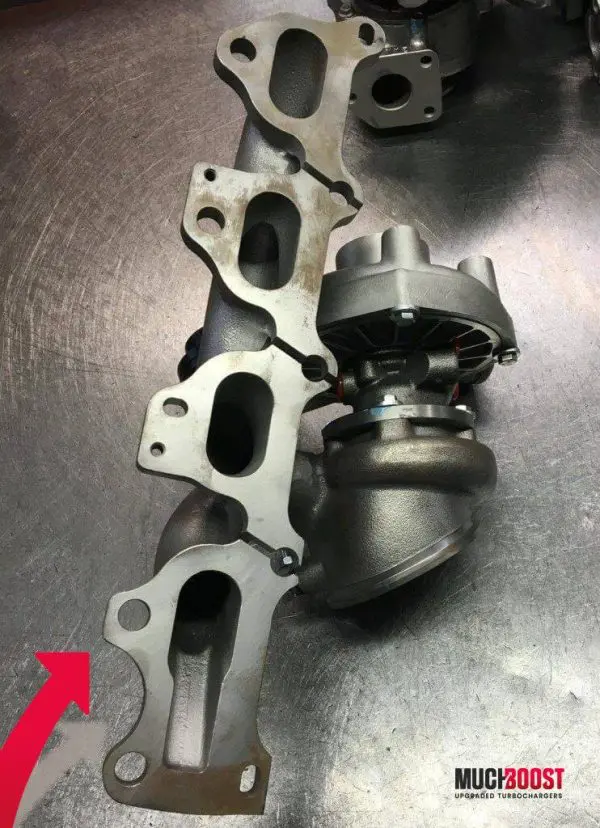

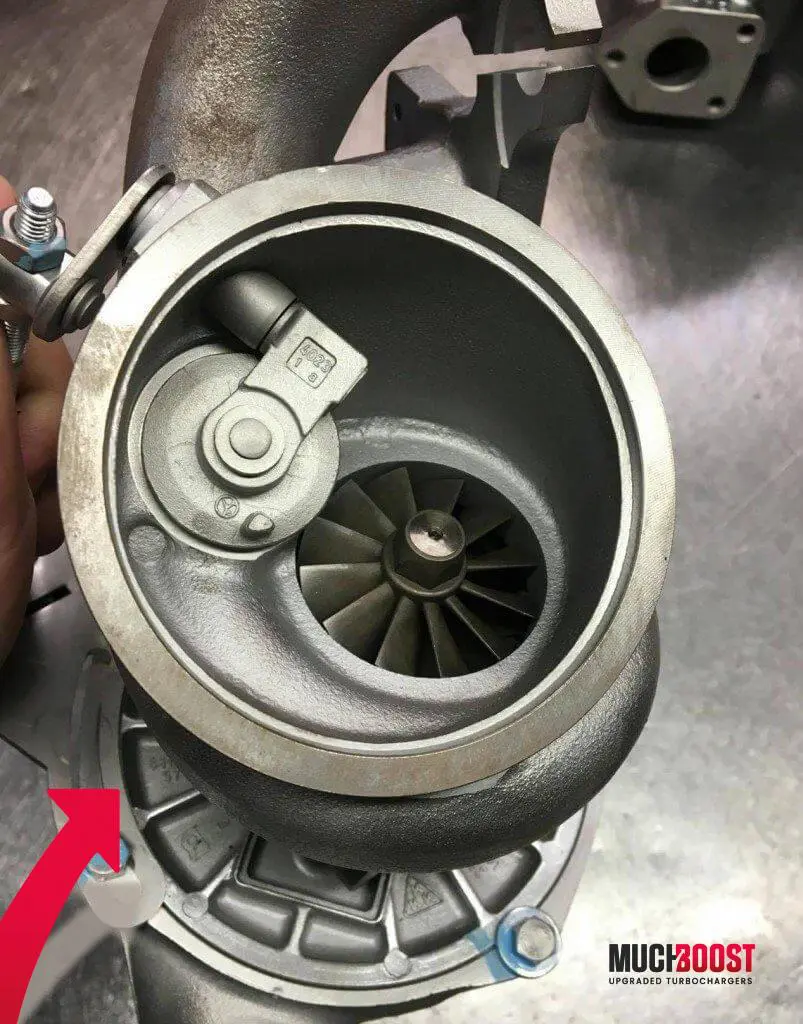

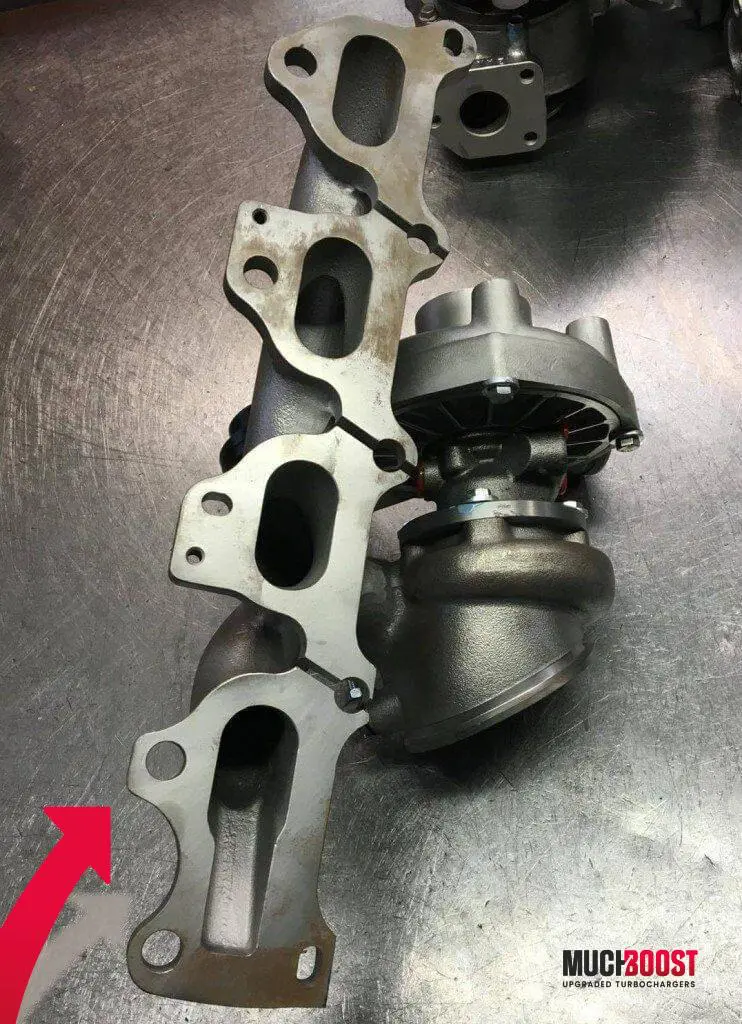

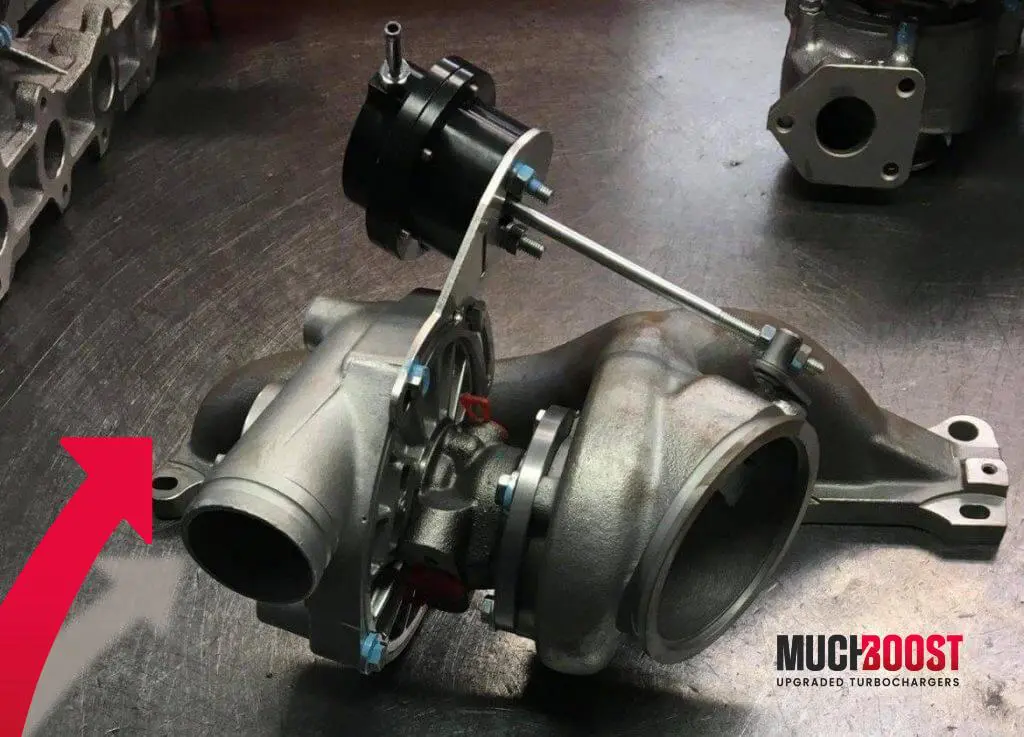

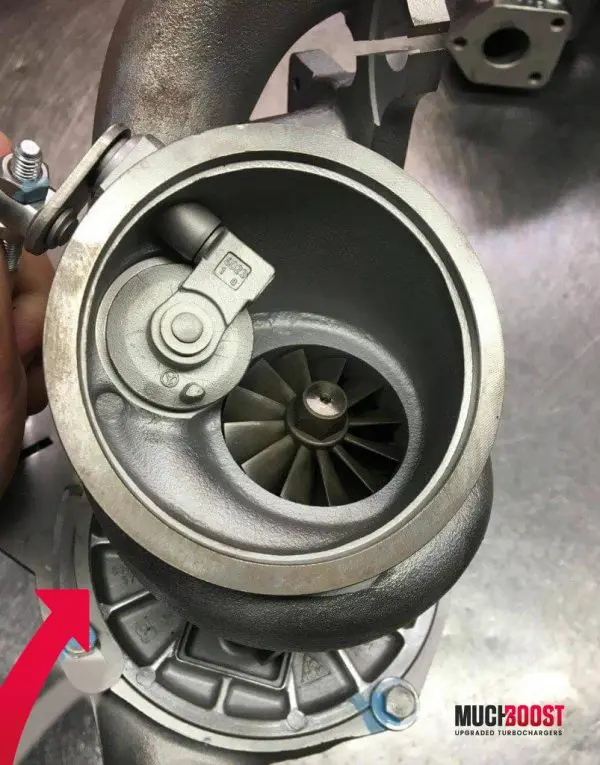

  • Z20LER Hybrid Turbo Upgrade 2.0T K04/K16 Opel Astra OPC, Zafira OPC

MuchBoost GT1752V Upgraded Turbocharger with an Enlarged Billet Compressor Wheel. It is based on a genuine Garrett turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with Mitsubishi Carisma, Space Star, Nissan Primera, Renault Espace, Laguna, Megane, Scenic, Volvo V40, S40 with the F9Q 115-120HP engines.

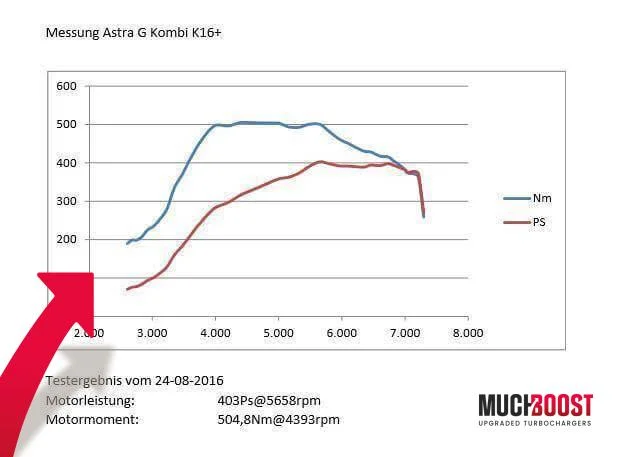

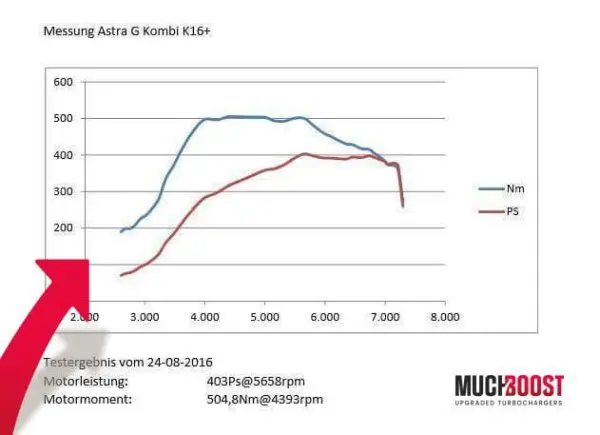

The turbo delivers up to 166% of stock power (160HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.

Main Features
  • The potential +400HP,

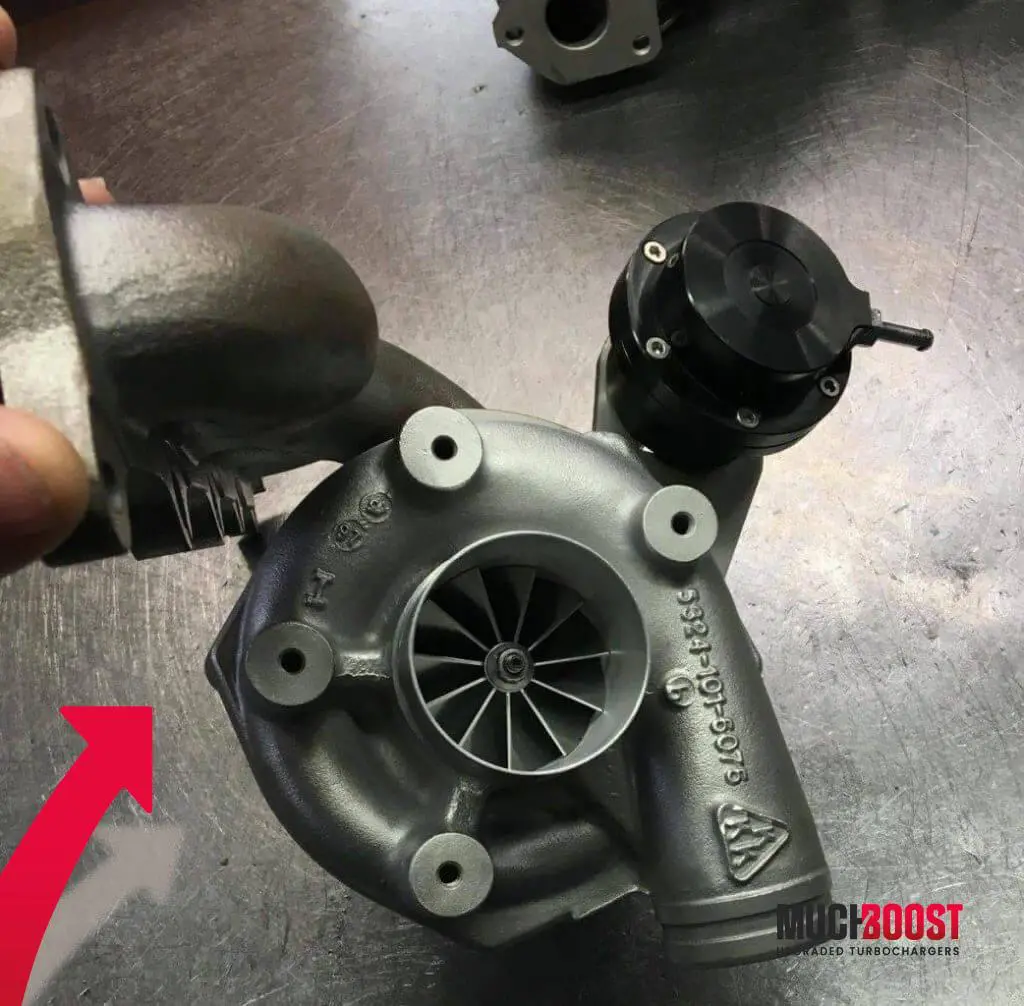

  • Fast spool thanks to Modified K24 Billet Compressor Wheel,
  • Enlarged K16 Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • Modified Genuine compressor housing,
  • Precisely machined exhaust housing,
  • Genuine exhaust manifold,
  • Genuine K16 bearing housing,
  • Upgraded Journal bearing system that allows holding more boost,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with +400HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with the turbo!


Cars
Opel Astra H 2.0 Turbo OPC
Opel Astra H 2.0 Turbo
Opel Astra G 2.0 Turbo
Opel Speedster
Opel Zafira A 2.0 Turbo OPC
Opel Zafira B 2.0 Turbo OPC
Opel Zafira B 2.0 Turbo


Factory numbers
5304 988 0024
5304 970 0024
5304 988 0048
5304 970 0048
5304 988 0049
5304 970 0049
530 4710 0516
Engines

Z20LEH, Z20LER, Z20LEL


OEM number
5860018
55559850
860283
93169524
5849028
55559850
55557699
5849040
55559848
849147
90423508


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
