RNC 2P25 Hybrid Turbo Upgrade Ford Focus II ST, Volvo C30 T5
1249,80 € – 1649,80 €
In Stock

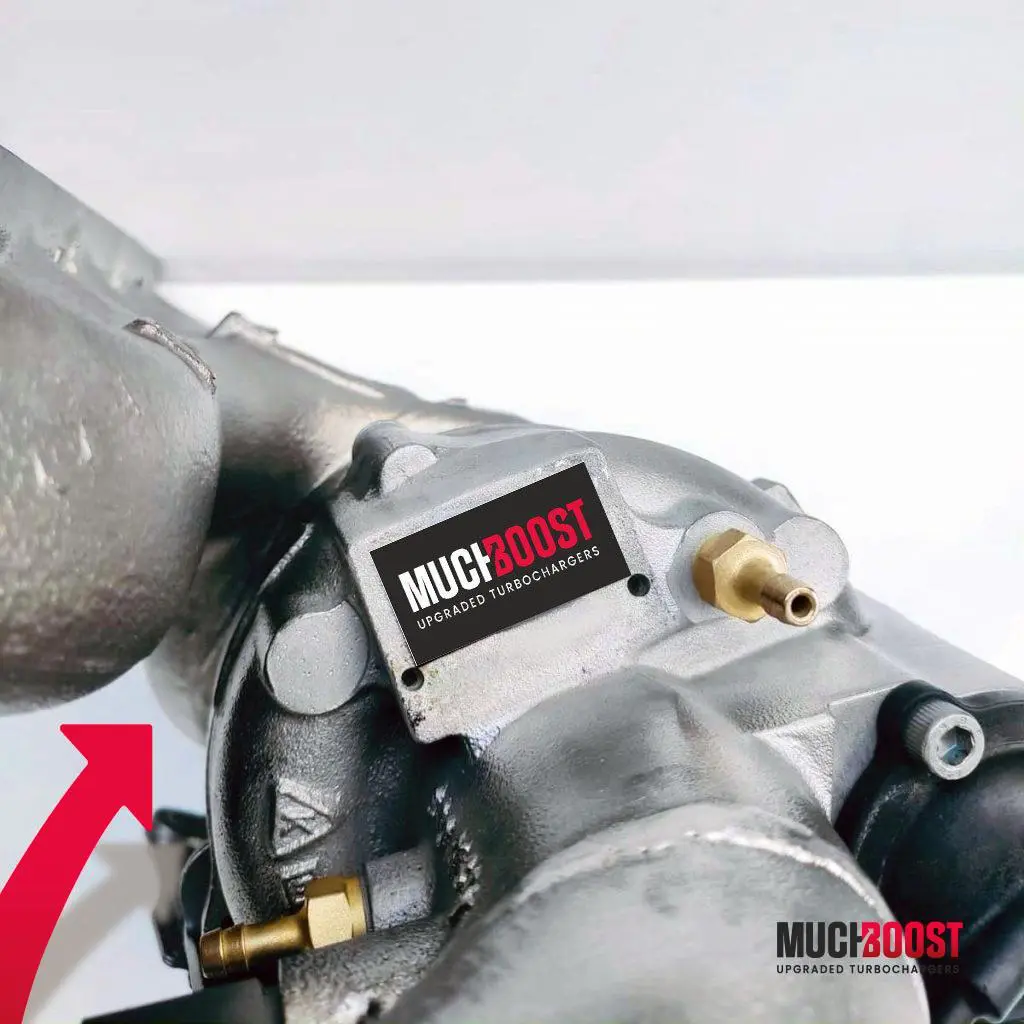

MuchBoost RNC 2P25 Upgraded Turbocharger with a Custom Billet Compressor Wheel 6+6 Blades and a High-Flow 9 Blades Turbine Wheel. It is based on an original KKK K04 Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Ford Focus, Kuga, Mondeo, S-Max, Volvo C30, C70, S40, V50 with the RNC […]
MuchBoost RNC 2P25 Upgraded Turbocharger with a Custom Billet Compressor Wheel 6+6 Blades and a High-Flow 9 Blades Turbine Wheel. It is based on an original KKK K04 Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Ford Focus, Kuga, Mondeo, S-Max, Volvo C30, C70, S40, V50 with the RNC 2P25 200-225HP engines.
The turbo delivers up to 190% power (180 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
Main Features
- The potential 380HP,
- Fast spool thanks to Custom Billet Compressor Wheel,

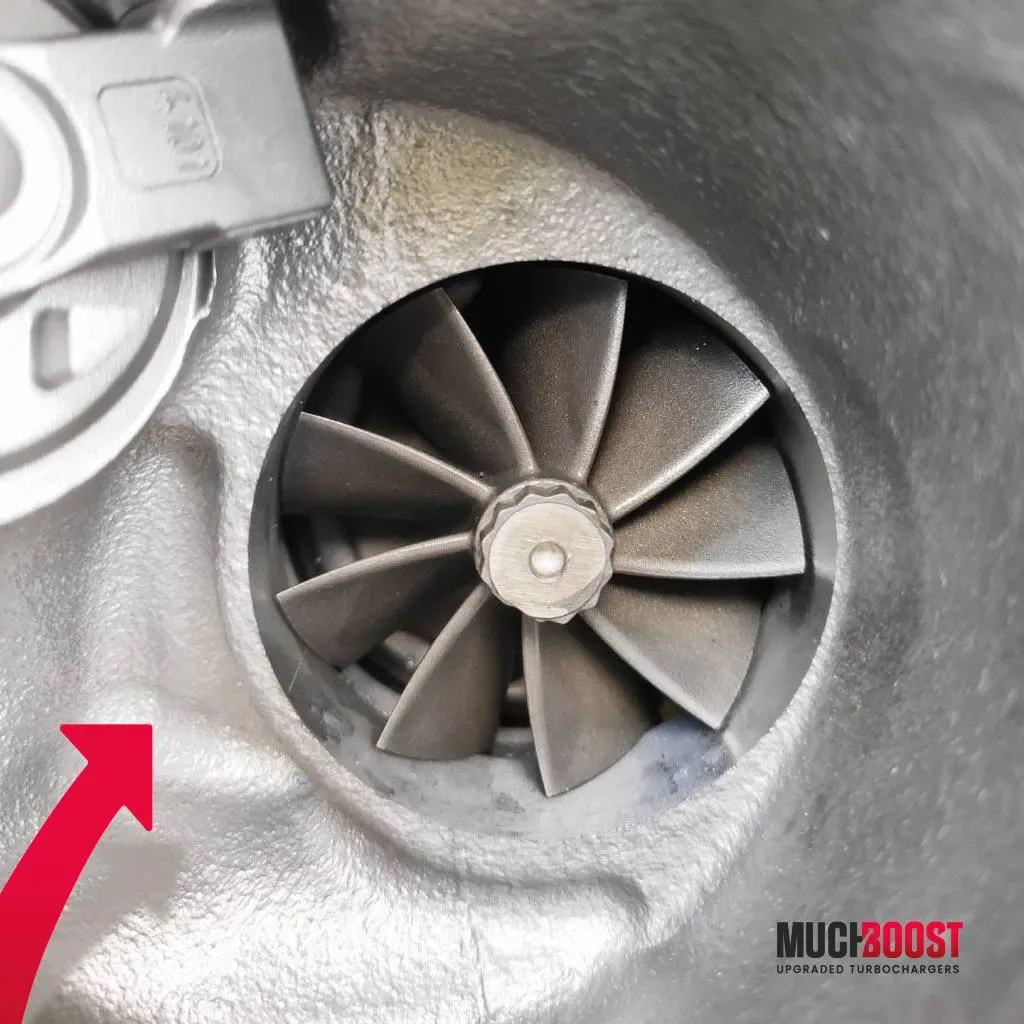

- High-Flow 9 Blades Turbine Wheel,
- High air-fuel ratio including high peak torque achieved at low engine speeds,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Details on the construction of the turbo:
- Genuine KKK compressor housing,
- Genuine KKK exhaust manifold,
- Genuine KKK bearing housing,
- Reinforced actuator,
- Upgraded Journal bearing system that allows holding more boost.
Other significant modifications
The turbo is meant to work with ~380HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
Example project

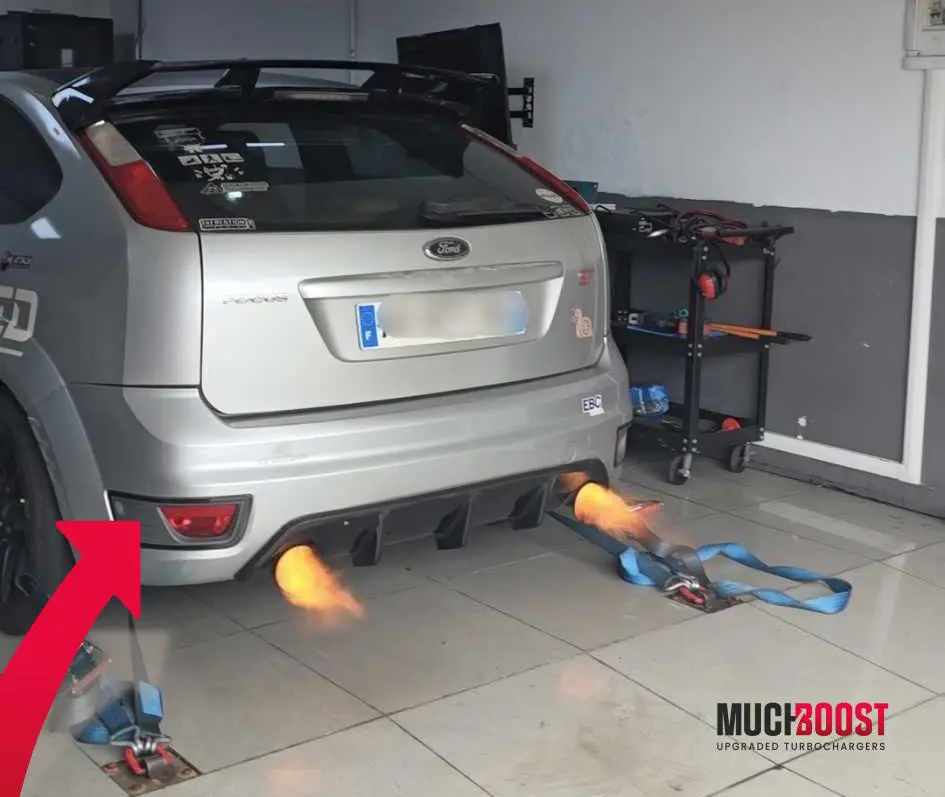

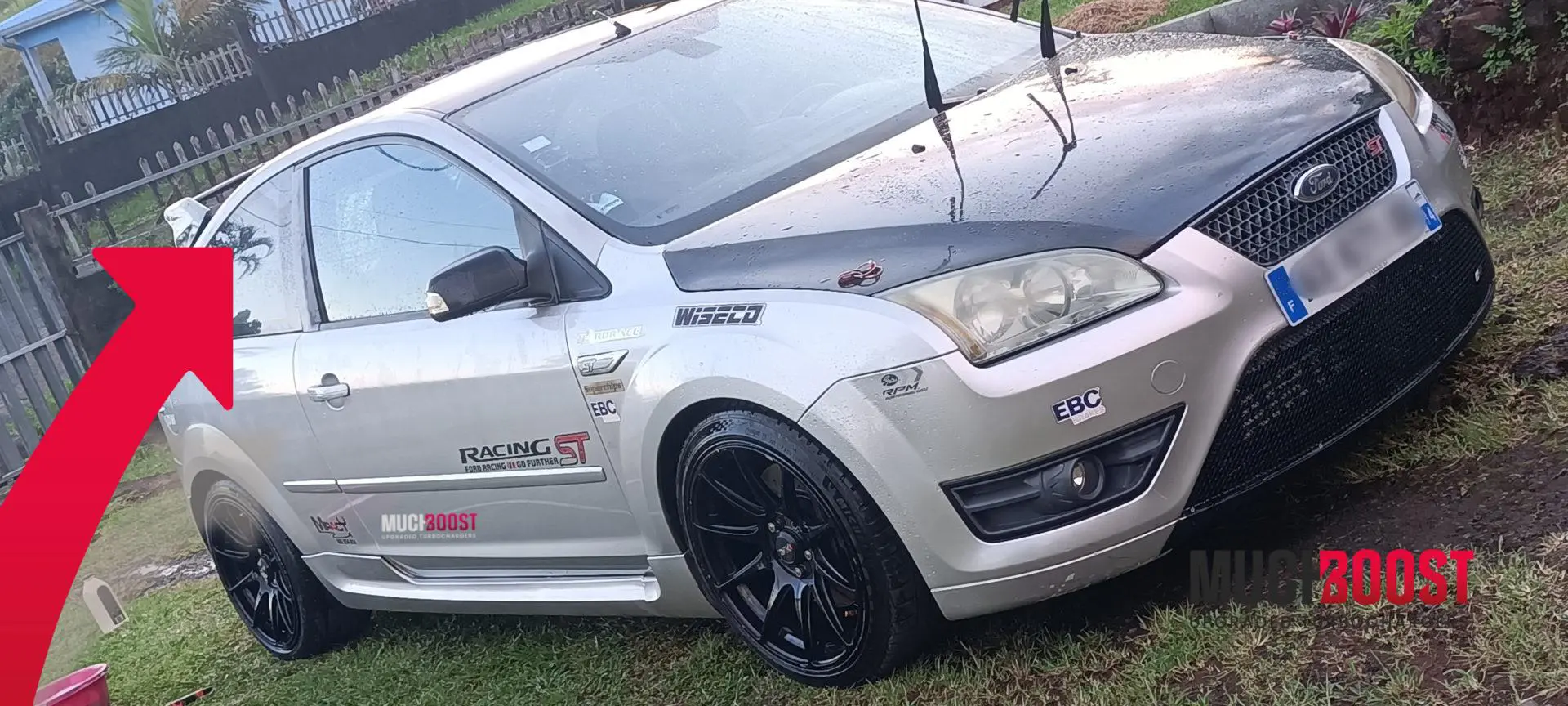

One of our clients managed to produce 497 HP and 582 Nm of torque at the crank at 1.7 Bar. The car was also equipped with:
- forged pistons and rods
- athena wrc head gasket + ARP bolts
- cylinder block mods
- autospecialist intake manifold
- upgraded intake filter
- 1000cc bosch injectors
- newman stage 2 cams
- 340 l/h fuel pump
- full 3″ exhaust
- focus RS OEM clutch
- focus RS muchboost hybrid turbo
- upgraded intercooler
- upgraded coolant radiator
- oil catch can
- snow performance water/methanol injection

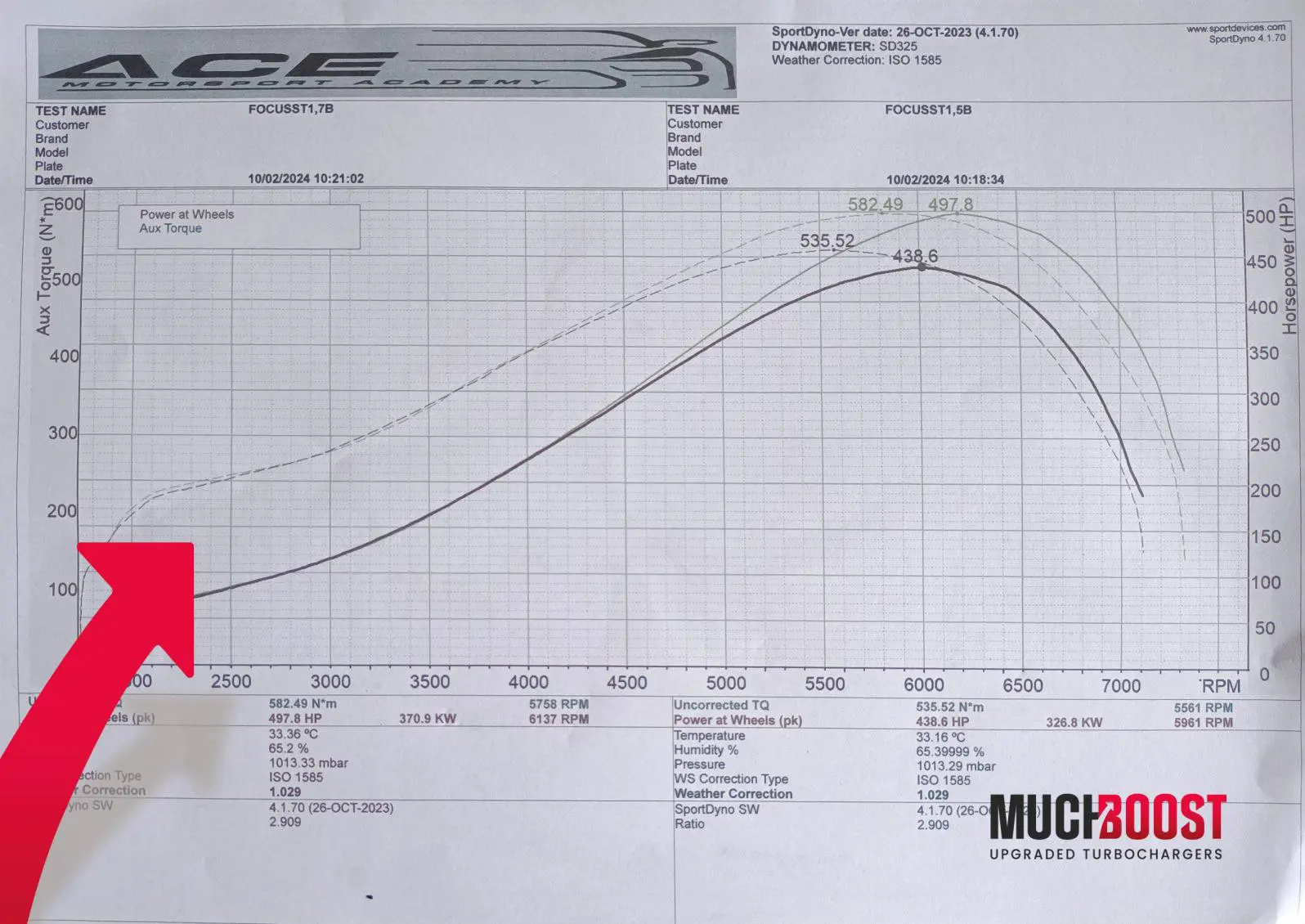

Please see the dyno graph below.
A set of gaskets is included with every option you choose!
Cars
Ford Kuga I 2.5 T 200HP
Ford Mondeo IV 2.5T 220HP
Ford S-Max 2.5 T 220HP
Volvo C30 2.5 T5 220HP
Volvo c30 2.5 T5 223HP
Volvo C70 II 2.5 T5 220HP
Volvo S40 II 2.5 T5 220HP
Volvo V50 2.5 T5 220HP
Factory numbers
5304 9700033
53049980033
53049700033
Engines
RNC 2P25-LT,
HYDB
OEM number
6G9N6K682AA
30650569
30650975
30757112
1388501
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
* Just upgrade option means that we will modify your turbochargers once you sent them to us. The turbo can’t be cracked and must be genuine.
Complete turbo option is for those who want to buy a fully built turbo ready to install in the car.
PRODUCT TYPE* | JUST UPGRADE, COMPLETE TURBO |
---|
