  • OM642 Hybrid Turbo Upgrade 3.0CDI Mercedes C-Class, E-Class, G-Class, M-Class, R-Class, 350/320/280CDI Jeep Cherokee
+
Add to Wishlist
Add to Wishlist

MuchBoost OM642 Upgraded Turbochargers with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. They are based on original Garrett turbochargers, which means that the installation is 100%P&P. The turbocharger is meant to work with Mercedes Benz 3.0CDI, Jeep Cherokee, and Chrysler with an OM642 190-230HP engine.

The turbo delivers up to 210% power (210 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 350HP to 400HP.

MuchBoost OM642 350

Upgraded turbocharger with an estimated ~350HP at the crank. List of modifications:

  • Precisely machined seal plates and compressor housing,
  • Genuine Garrett  compressor housing,
  • Genuine Garrett bearing housing,
  • Genuine Garrett exhaust manifold,
  • Original Hella actuator
  • More efficient and larger Billet Compressor Wheel GEN II,
  • Enlarged genuine Turbine Wheel,
  • Dynamically balanced,
  • Precisely machined exhaust housing,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost OM642 400

Upgraded turbocharger with an estimated potential of ~400HP at the crank. Modifications compared to the 350 option are the same except:

  • Billet Compressor Wheel,
  • Larger High-Flow 9 blades Turbine Wheel.
Other Significant Modifications

To fully utilize the potential of this hybrid turbo, we recommend upgrading i.a. fuel, exhaust, cooling systems, and the clutch. Individual ECU remapping is the foundation.

Example project

One of our clients managed to produce 400/432HP (with WMI) and 889Nm of torque with the turbo. The car, E280CDI W211, was also equipped with:

  • Mishimoto Automotive intercooler 300mm x 650mm,
  • Bigger custom stainless steel Inlet & Outlet pipes,
  • Bigger injectors from 350cdi,
  • Green Filter USA sports filter,
  • Full straight custom stainless steel exhaust system 3,00′,
  • Snow Performance WMI.

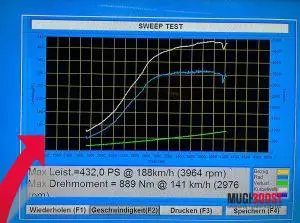

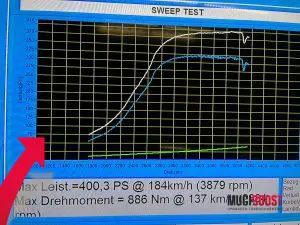

Dyno graphs below:


A set of gaskets is included with every option you choose!


Cars

Chrysler 300C 3.0 CRD I 225HP
Dodge Sprinter 3.0 225HP
Jeep Grand Cherokee 3.0 CRD III 225Hp
Merc C-Class 320 CDI w203 225HP
Merc E-Class 300 CDI W212 230HP
Merc E-Class 350 CDI W212 230Hp
Merc E-Class 320 CDI W211 225HP
Merc E-Class 280 CDI W211 190HP
Merc G-Class 280 CDI W461 190HP
Merc G-Class 320 CDI W461 225HP
Merc GL-Class 350CDI X154 211HP
Merc M-Class 320 CDI W164 225HP
Merc M-Class 280 CDI W164 190HP
Merc R-Class 320CDI W251 225HP
Merc R-Class 280 CDI W251 190HP
Merc Sprinter 219/319/519 NCV3 190HP
Merc Viano 3.0 CDI W639 204HP
Merc Viano 3.0 CDI W639 225HP
Merc Vito 122 CDI W639 225HP
Merc Vito 120 CDI W639 204HP


Factory numbers

765155-5008S
765155-9007W
765155-5007S
765155-5004S
765155-0004
757608-0001
743507-0009
777318-5002W
777318-9002W
777318-5002S
777318-5001S
781743-5003S
781743-5001S
764809-0004
764809-0002

Engines

OM642, OM642 Euro 4, OM642 DE 30 LA


OEM number

68037207AA
68019589AA
A6420901480
A6420900280
A6420901180
6420900780
68037207AA
68019589AA
05179566AB
A6420905980
A642090598080
A6420901480
A6420900280
6420901480
6420900280
6420905980
68004663AA
A6420905880
A6420908680
A6420901680
A6420908880
6420905880
6420905880
6420901680
6420908880
A642090868080
A642090578080
A6420905780



Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

350HP, 400HP
