  • N57N Hybrid Turbo Upgrade GTB2056VZK 3.0d BMW 330d F30, 430d F32, 530d F11
+
Add to Wishlist
Add to Wishlist

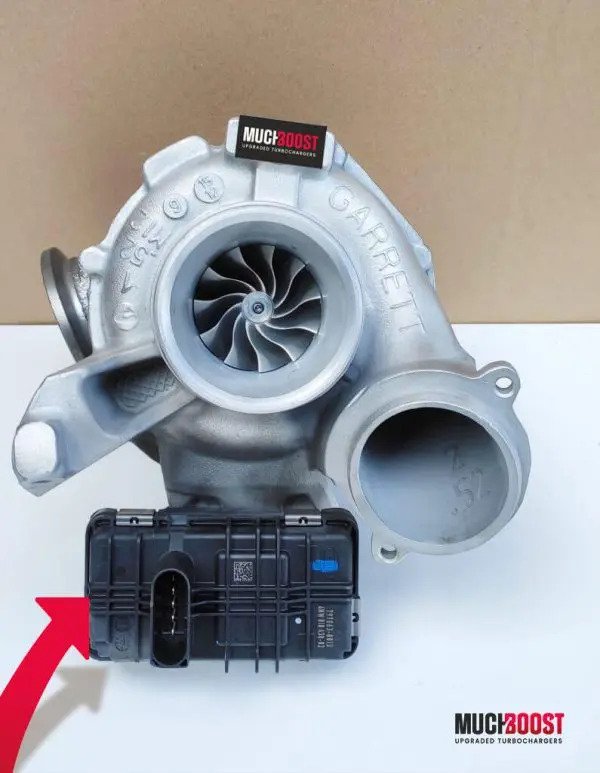

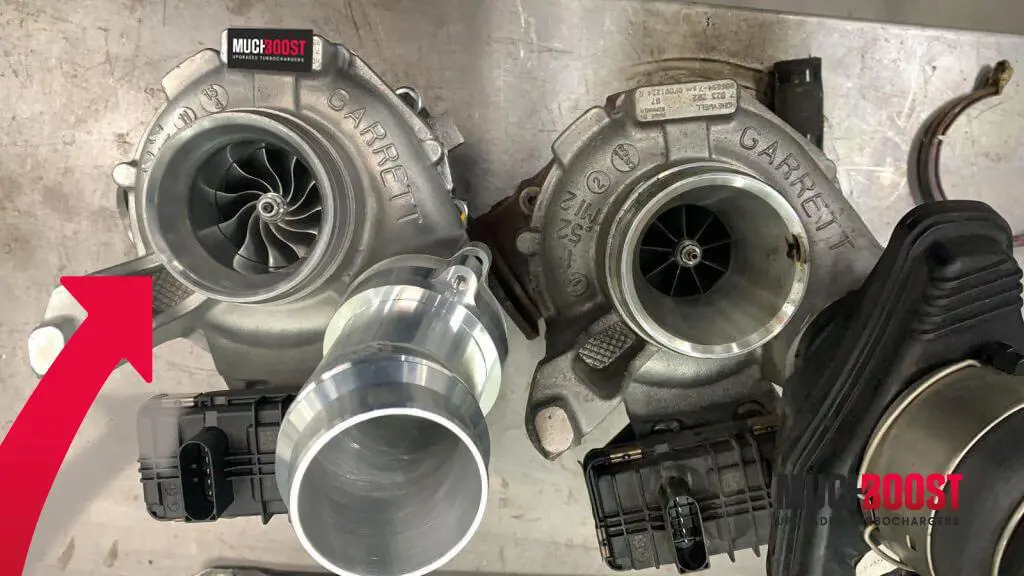

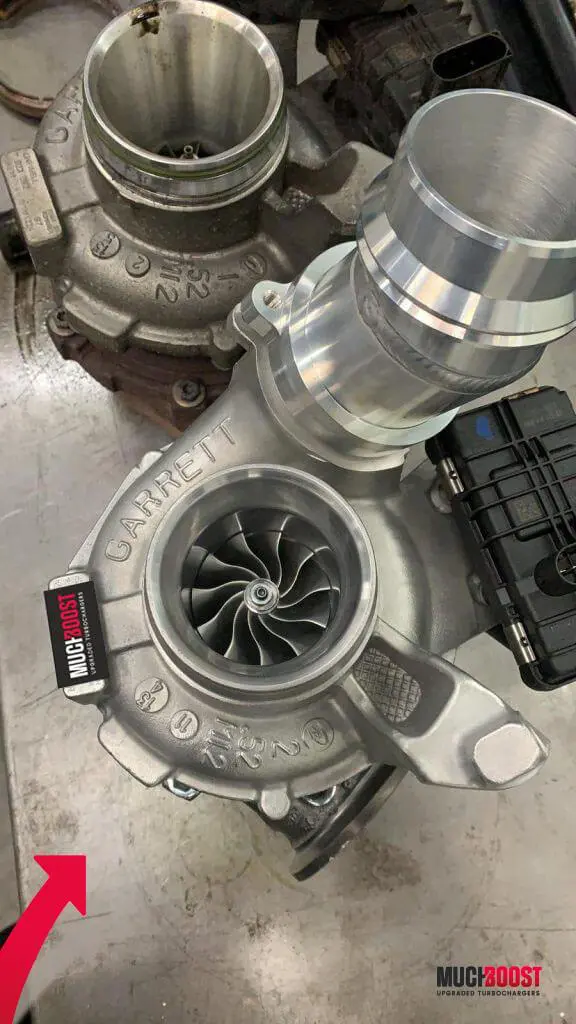

MuchBoost N57N Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original GTB2056VZK Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with BMW 330d F30, 430d F32, 530d F11, X5 30dx F15 with the N57N 258HP engine.

The turbo delivers up to 155% power (142 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from +350HP to +400HP.

MuchBoost N57N +350

Upgraded turbocharger with an estimated +350HP at the crank. List of modifications:

  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • Genuine Hella electronic actuator
  • More efficient and larger Billet Compressor Wheel 9+0 Blades GEN II,
  • Bigger GTB22VZK Turbine Wheel.
  • Genuine Garrett compressor housing,
  • Genuine Garrett bearing housing,
  • Genuine Garrett exhaust manifold,
  • Dynamically balanced,
  • Precisely machined compressor housing, exhaust housing and seal plate,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost N57N +400

Upgraded turbocharger with an estimated potential of +400HP at the crank. Modifications compared to the +350 option are the same except:

  • Bigger Compressor Billet Wheel 11+0 Blades GEN I,
  • Enlarged High-Flow 9 Blades Turbine Wheel.
Other significant modifications

The turbo is meant to work with+350-400HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example Projects

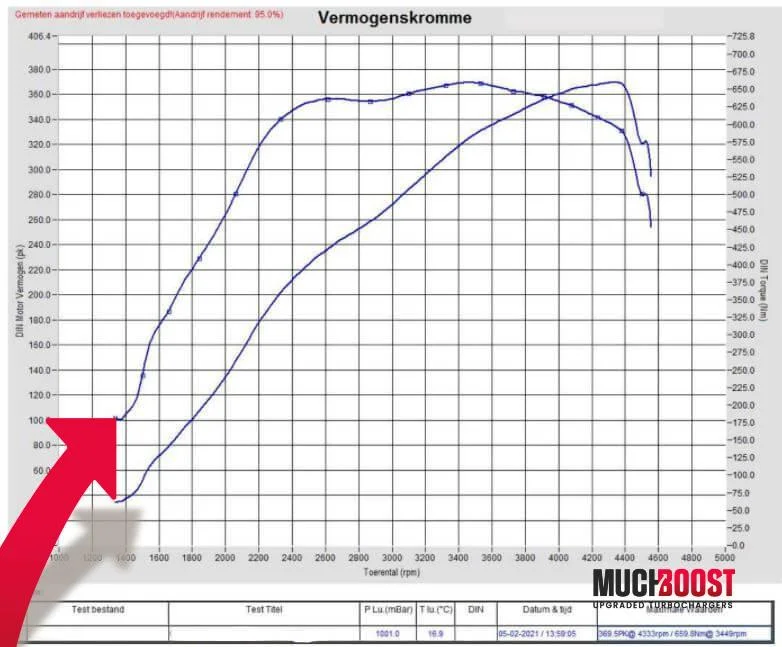

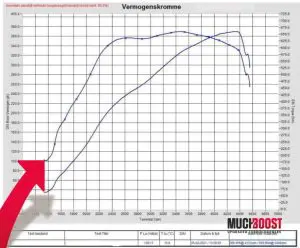

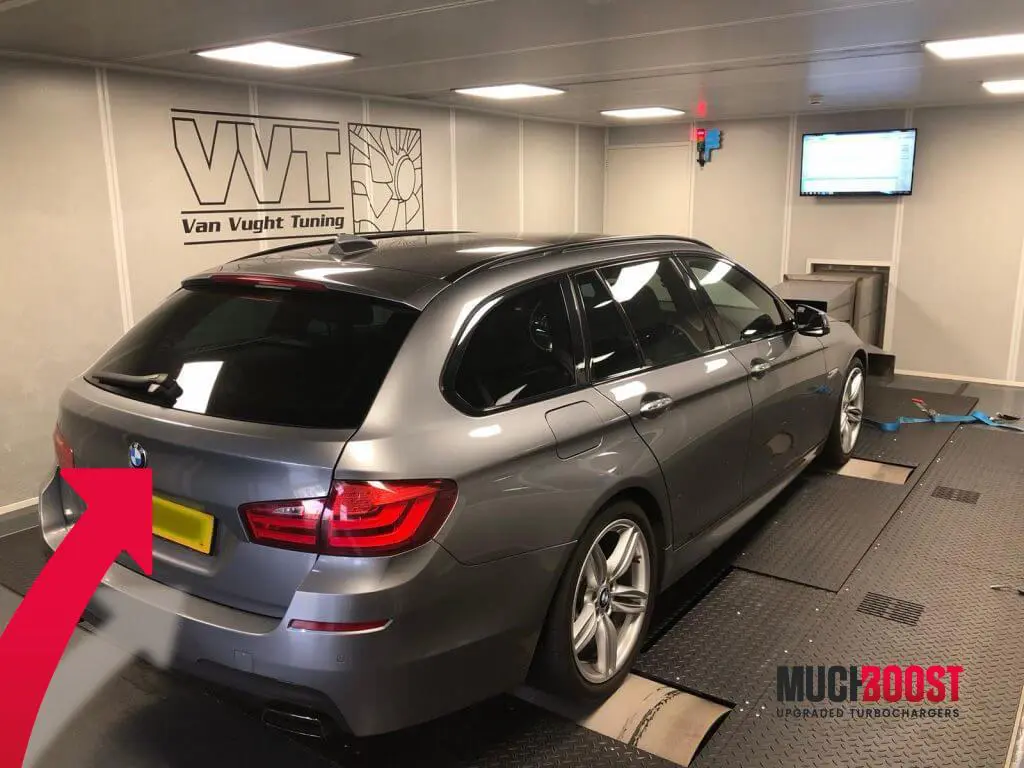

A BMW 530d F11 with our turbocharger managed to produce 384HP and 659Nm of torque with a stock DPF. Below is the list of modifications and also a dyno graph:

  • MuchBoost N57N Hybrid Turbocharger,
  • Wagner Intercooler,
  • VVT custom remap.


A set of gaskets is included with every option you choose!


Cars
BMW 330 d (F30 / F31 / F34) 258HP
BMW 430 d (F32 / F33 / F36) 258HP
BMW 530 d (F07 / F10 / F11) 258HP
BMW 730 d (F01 / F02) 258HP
BMW X3 30 dx (F25) 258HP
BMW X4 30 dx (F26) 258HP
BMW X5 25 dx (F15) 258HP
BMW X5 30 dx (F15) 258HP


Factory numbers

806094-5007S
806094-5006S
806094-5003S
806094-0007
806094-0006
806094-0003

Engines

N57N


OEM number

11657823270


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

+350HP, +400HP
