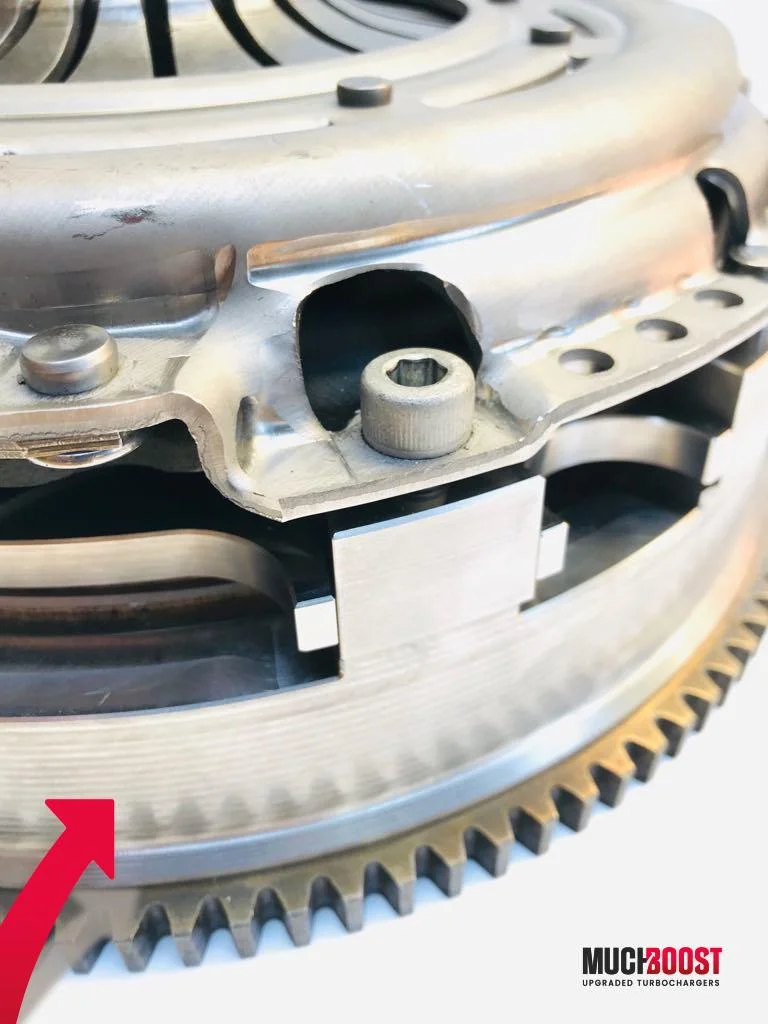

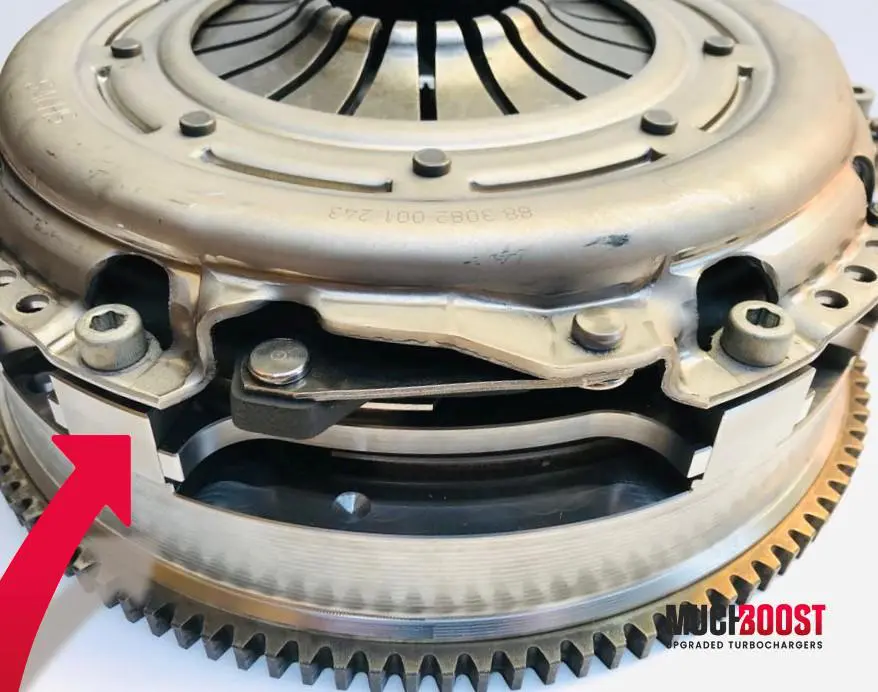

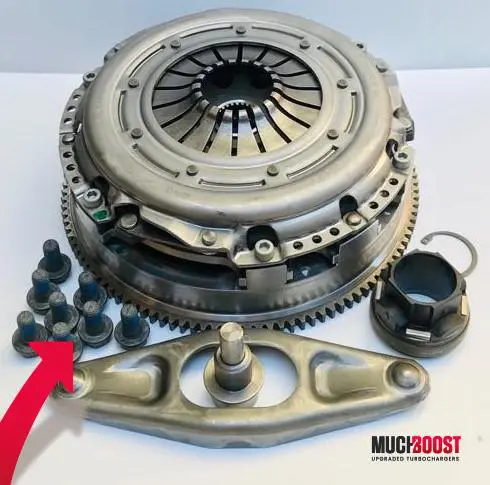

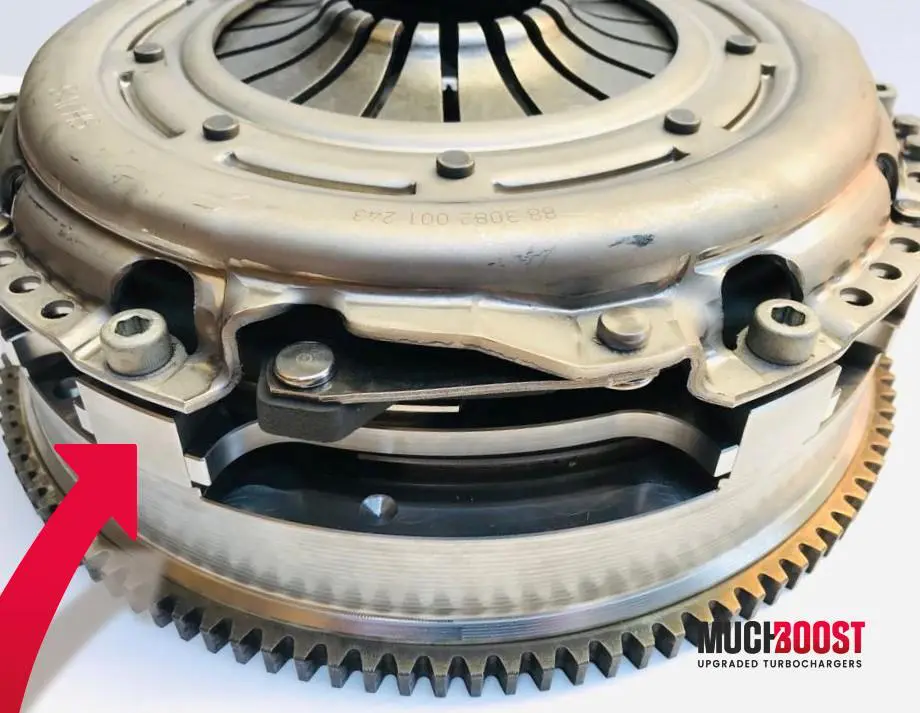

1500Nm N54, N55 Upgraded Clutch for BMW M2, 335i, 135i, Z4
1694,66 € – 2255,00 €
In Stock
MuchBoost Twin-Disc clutch is offered in three versions capable of withstanding from 800Nm up to 1500Nm of torque in the racing condition. This setup is dedicated for high-powered N54 and N55 engines; please have a look at the table below to find out which version would work for you, don’t hesitate to get in touch […]
MuchBoost Twin-Disc clutch is offered in three versions capable of withstanding from 800Nm up to 1500Nm of torque in the racing condition. This setup is dedicated for high-powered N54 and N55 engines; please have a look at the table below to find out which version would work for you, don’t hesitate to get in touch if in doubt. The Stage 1 clutch works as smoothly as an OEM clutch set but can operate at a much higher torque level. Our clutch provides a lighter rotating assembly, higher RPM capability, and greater clamp load levels but most importantly it’s much stronger.
| Mount type | Engine | Models |
|---|---|---|
| Flywheel mounted on 8 bolts | N54B30 | BMW 135i, 335i, Z4 |
| Flywheel mounted on 6 bolts | N54B30A, N55B30 | 135i, M135i, M2, M235i, 335i, X3 35i, 435i, X4 35i, X4 M40i, 535i, X5 35i, X5 35iX, 640i, X6 35iX, x6 35i. |
Important to note about this clutch
– It’s suitable for up to 1500Nm of torque in racing conditions!
– 100% CNC precision machining and alignment assure an excellent fit.
– Professionally balanced flywheel and spacer.
– Custom 240 mm clutch twin-discs (stainless steel base) using LUK’s Kevlar or Ceramic friction pads.

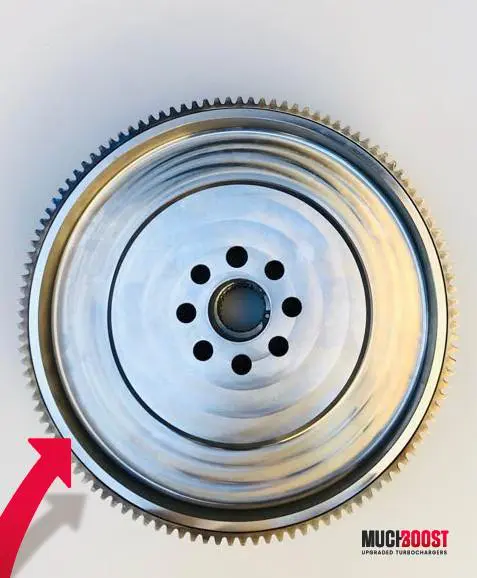

– Monoblock single mass twin clutch disc flywheel (approx. 7kg).
– Sachs Performance pressure plate (as option) with a non-SAC mechanism pressure plate.
– Heat-resistant clutch disc spacer.
– Flywheels have the starter gear mounted on it.
Options summary
| Setup | Friction pads | Pressure plate | Top torque at dynamic driving* | Top torque at ideal conditions** |
|---|---|---|---|---|
| Stage 1 | Kevlar | Pressure plate from BMW E39 2.8 | 800NM | 1000NM |
| Stage 2 | Kevlar | Sachs Performance pressure plate | 1100NM-1200NM | 1400NM |
| Stage 3 | Ceramic | Sachs Performance pressure plate | 1400NM-1500NM | 1800NM |
*heavy abuse and drifting
**top NM a clutch can withstand when power is released in a smooth, linear way
Installation
[embedyt]https://www.youtube.com/watch?v=dl4h37CT38Q[/embedyt]
You might also consider
http://muchboost.com/product/hybrid-turbo-upgrade-n55-bmw-m2-m235i-335i-e90-535i-f10/
N54 BMW De-Cat Downpipe 335i E90, E91, E92, E93, BMW 135i E82, E88
Maintenance
The set can be renewed by MuchBoost.
Average time needed to build this clutch is 7 working days.
| Setup | Stage 1, Stage 2, Stage 3 |
|---|---|
| Flywheel type | 6 bolts N54, 8 bolts N54, 6 bolts N55 |
