  • N47D20A Hybrid Turbo Upgrade BMW 116d E81/E87, 118d E81/E87/E88, 318d E90/E91
+
Add to Wishlist
Add to Wishlist

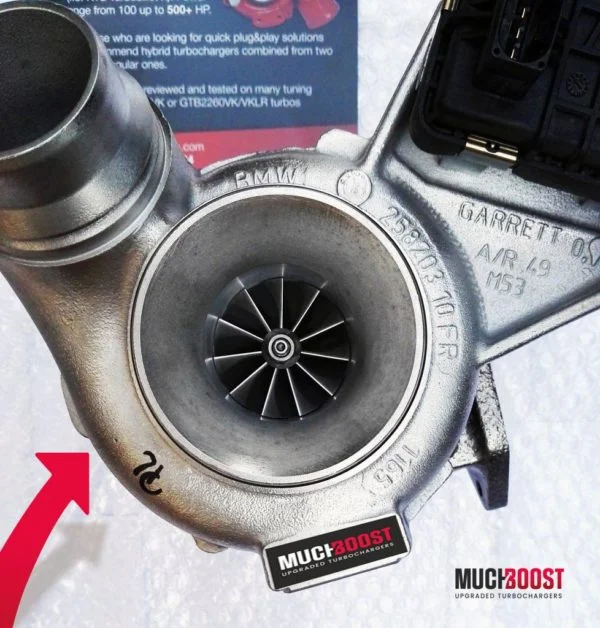

MuchBoost N47D20A Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with BMW 116d, 118d, 318d with the N47D20A 116-140HP engines.

The turbo delivers up to 258% power (184 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 250HP to 300HP.

MuchBoost N47D20A 250-260

Upgraded turbocharger with an estimated ~250-260HP at the crank. List of modifications:

  • Upgraded journal bearings system that allows the turbo to hold more boost,
  • Genuine Hella electronic actuator
  • More efficient and larger Billet Compressor Wheel 11+0 Blades,
  • Precisely machined seal plates and compressor housing,
  • Genuine Garrett compressor housing,
  • Genuine Garrett bearing housing,
  • Genuine Garrett exhaust manifold,
  • Original Honeywell actuator,
  • Dynamically balanced,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost N47D20A 290-300

Upgraded turbocharger with an estimated potential of ~290-300HP at the crank. Modifications compared to the 250-260 option are the same except:

  • Enlarged Turbine Wheel,
  • Precisely machined exhaust housing.
Other significant modifications

The turbo is meant to work with ~250-300HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example project

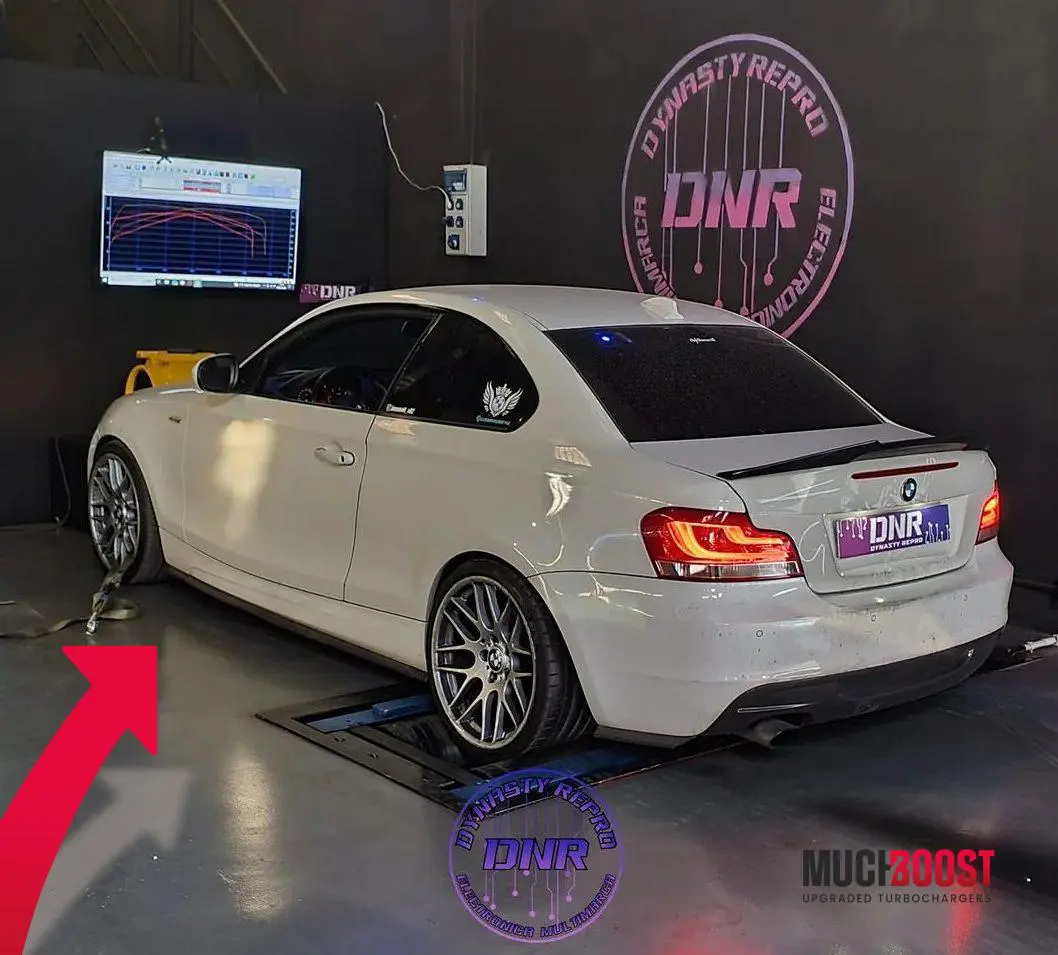

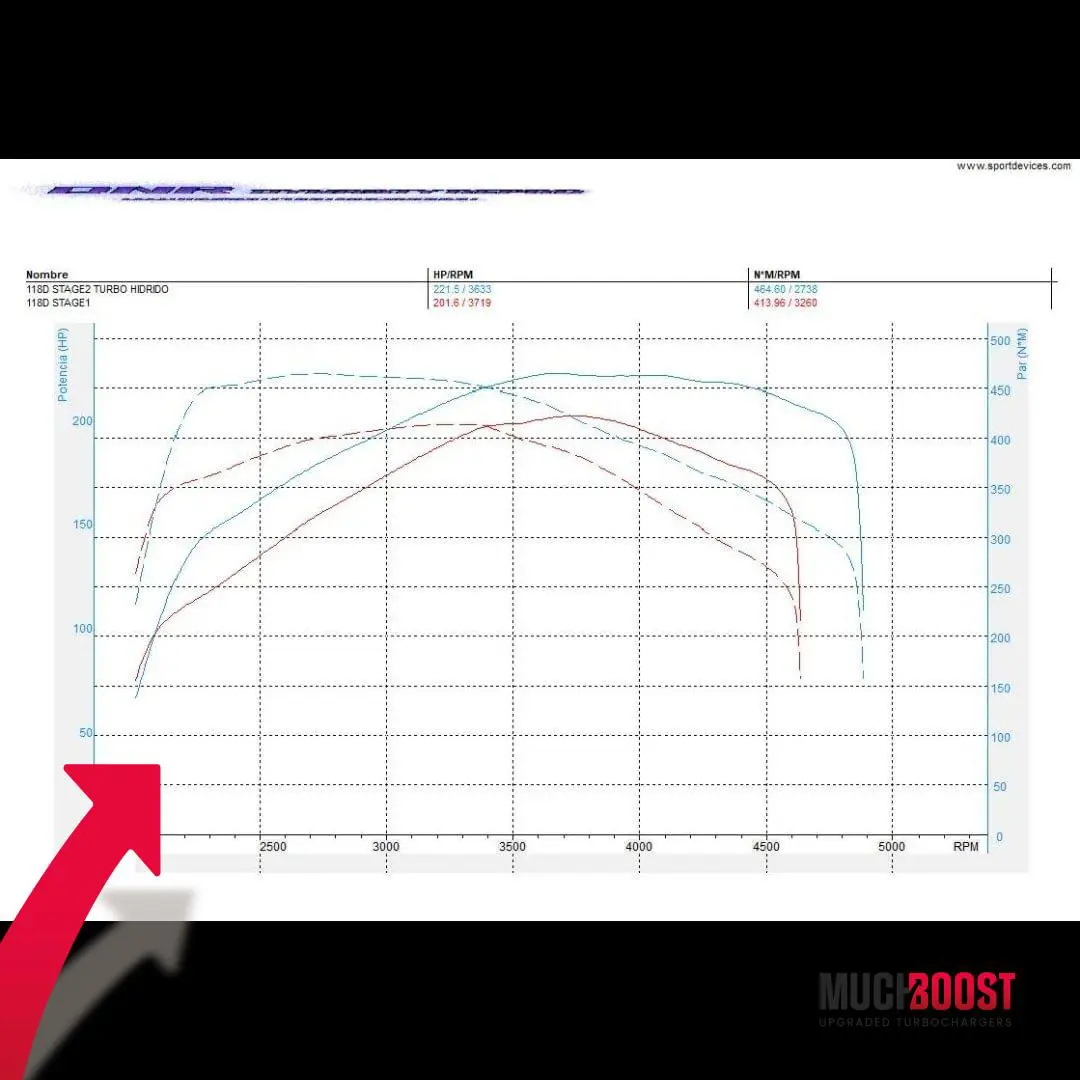

One of our clients managed to produce 221HP and 464Nm of torque. The car was also equipped with an aftermarket downpipe. Dyno graph below.


A set of gaskets is included with every option you choose!


Cars

BMW 116 d (E81/E87) 116HP
BMW 116 d (E81/E87) 140HP
BMW 118 d (E81/E87/E88) 140HP
BMW 318 d (E90/E90N/E91/E91N) 140HP


Factory numbers

11657800595

Engines

N47D20A, N47D20A (Euro 3)


OEM number

767378-5014S
767378-9014S
767378-0014
767378-0013
767378-0006
767378-0005


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.









POWER RANGE

250-260HP, 290-300HP
