MDI 525 TD5 Hybrid Turbo Upgrade Land-Rover Defender 2.5TDI, Discovery II
849,79 € – 1218,79 €
In Stock

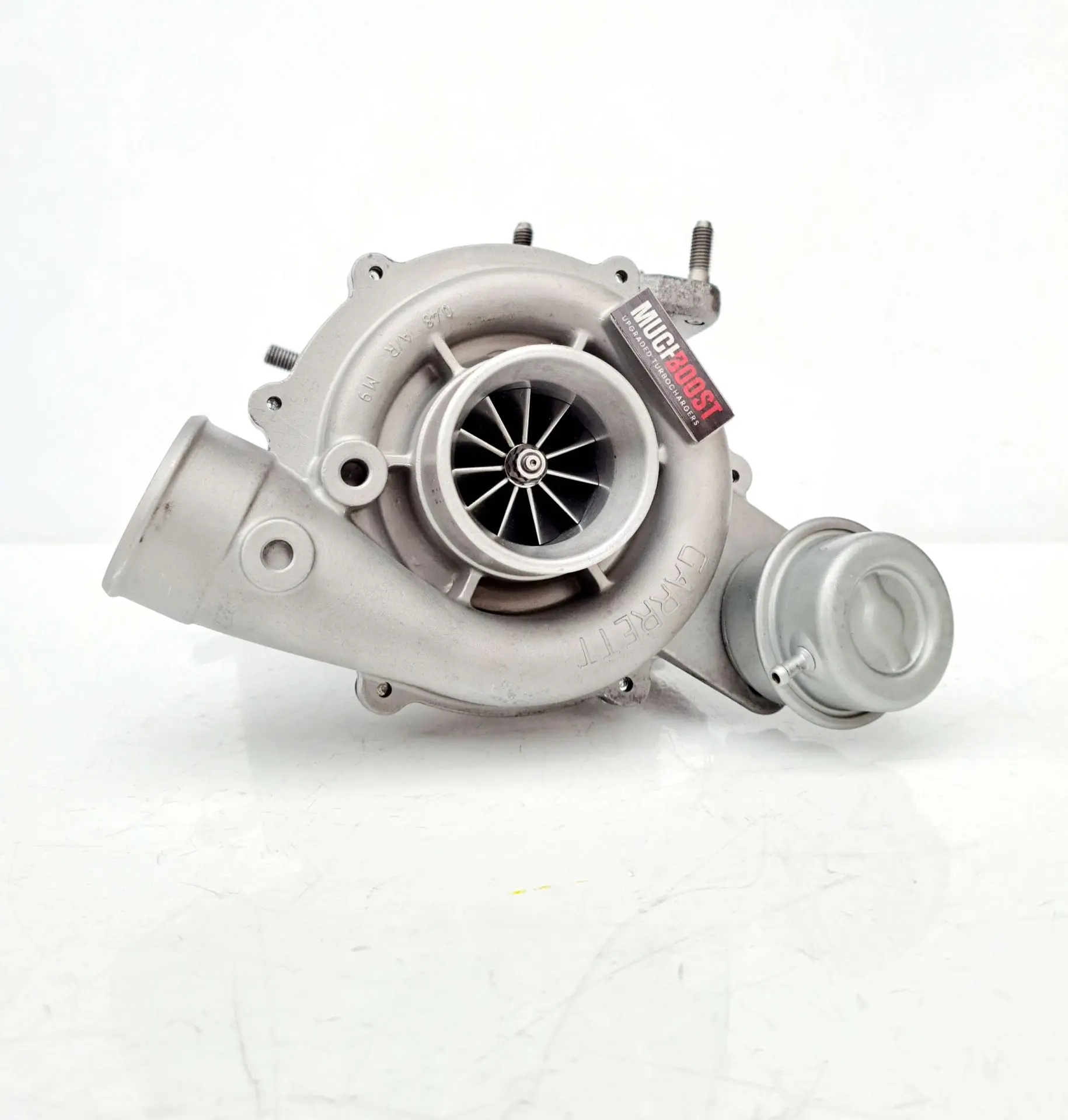

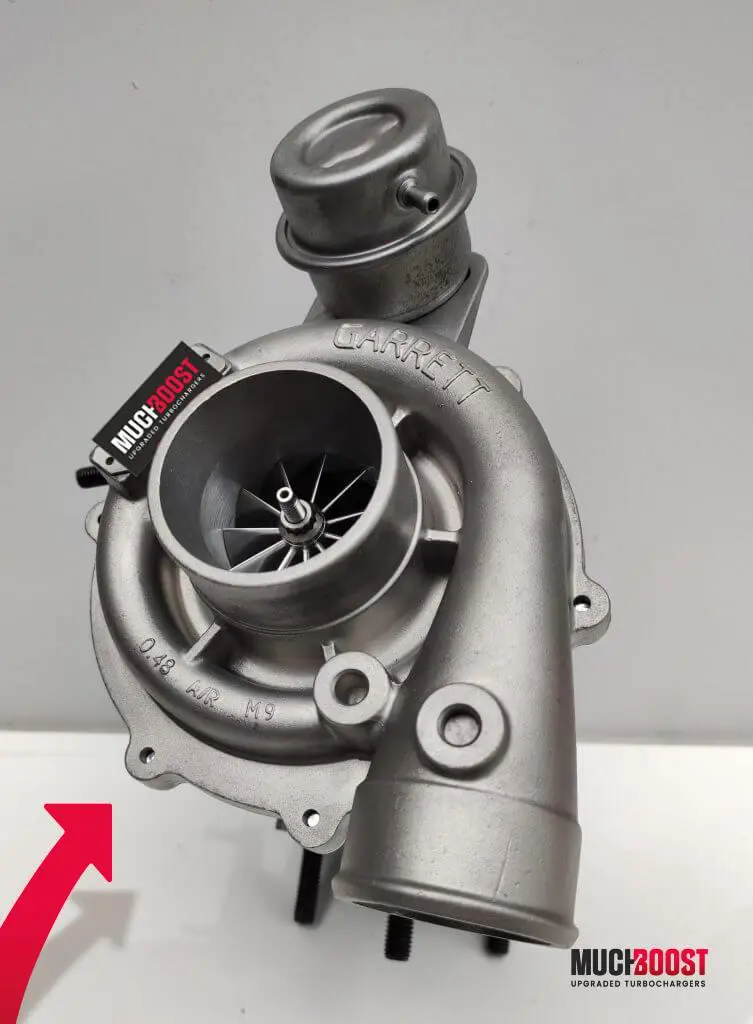

MuchBoost MDI 525 TD5 Upgraded Turbochargers with Enlarged Billet Compressor Wheels and Enlarged Turbine Wheels. They are based on genuine Garrett turbochargers, which means that the installation is 100% P&P. The turbochargers are meant to work with Land-Rover Defender, Discovery II with the 2.5TDI TD5 122-139HP engine. The turbos deliver up to 204% of stock power (128HP extra) […]
MuchBoost MDI 525 TD5 Upgraded Turbochargers with Enlarged Billet Compressor Wheels and Enlarged Turbine Wheels. They are based on genuine Garrett turbochargers, which means that the installation is 100% P&P. The turbochargers are meant to work with Land-Rover Defender, Discovery II with the 2.5TDI TD5 122-139HP engine.
The turbos deliver up to 204% of stock power (128HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.
We have developed 2 modification options that allow you to reach anywhere from 220HP to 250HP.
MuchBoost 2.5TDI TD5 220
Upgraded turbochargers with an estimated ~220HP at the crank. List of modifications:
- Precisely machined seal plates and compressor housing,
- More efficient and larger Billet Compressor Wheel 11+0 blades,
- Upgraded journal bearing system that allows the turbo to hold more boost,
- Clipped and Lightened Turbine Wheel,
- Genuine Garrett compressor housing,
- Genuine Garrett exhaust manifold,
- Genuine Garrett bearing housing,
- Original Garrett actuator,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost 2.5TDI TD5 250
Upgraded turbochargers with an estimated potential of ~250HP at the crank. Modifications compared to the 220 option are the same except:
- Enlarged Compressor Billet Wheel,
- Larger Turbine Wheel,
- Precisely machined exhaust housing.
Other significant modifications
In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
Example Project

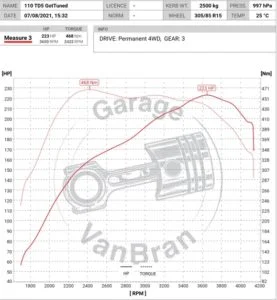

One of our clients managed to produce 223HP and 468Nm of torque. Dyno graph below:
A Ball Bearing conversion is available. Brand new genuine Garrett ceramic ball bearings are used in the upgrade. The main advantage is ~20% quicker spool in comparison to journal bearings.
A set of gaskets is included with every option you choose!
Cars
Land Rover Discovery II 2.5TDI TD5 – 122HP/139HP
Factory numbers
452239-5008S
452239-0009
452239-0006
452239-0005
452239-0003
Engines
MDI 525/TD5
OEM number
LR006595
PMF100410
PMF100460
PMF000040
LR017316
LR006595
LR005955
PMF50040
PMF000040
PMF100460
PMF100410
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
POWER RANGE | 220HP, 250HP |
---|---|
BEARINGS | CERAMIC, JOURNAL |
