  • GTD1752VRK 1.9CDTI Hybrid Turbo Upgrade Z19DT Opel Astra, Vectra, Signum, Zafira, Fiat Croma, Stilo, SAAB 9-3
+
Add to Wishlist
Add to Wishlist

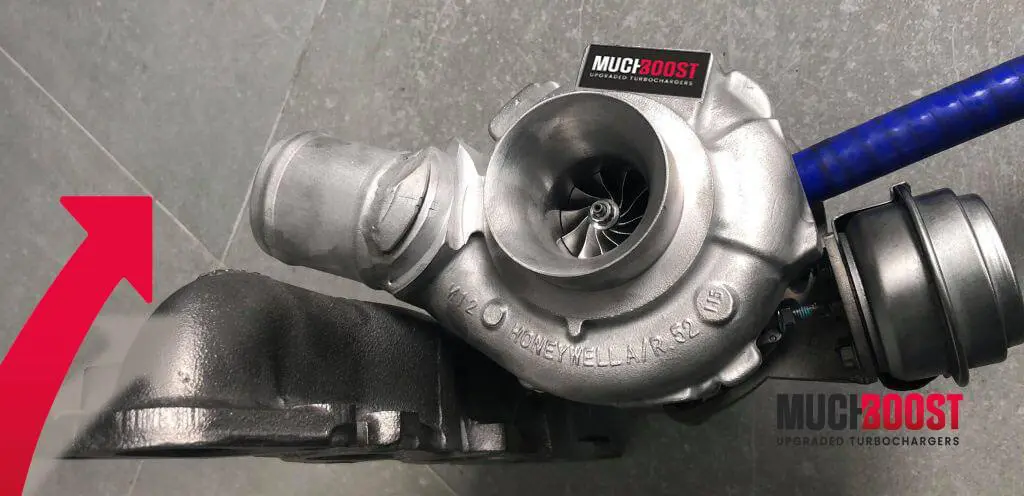

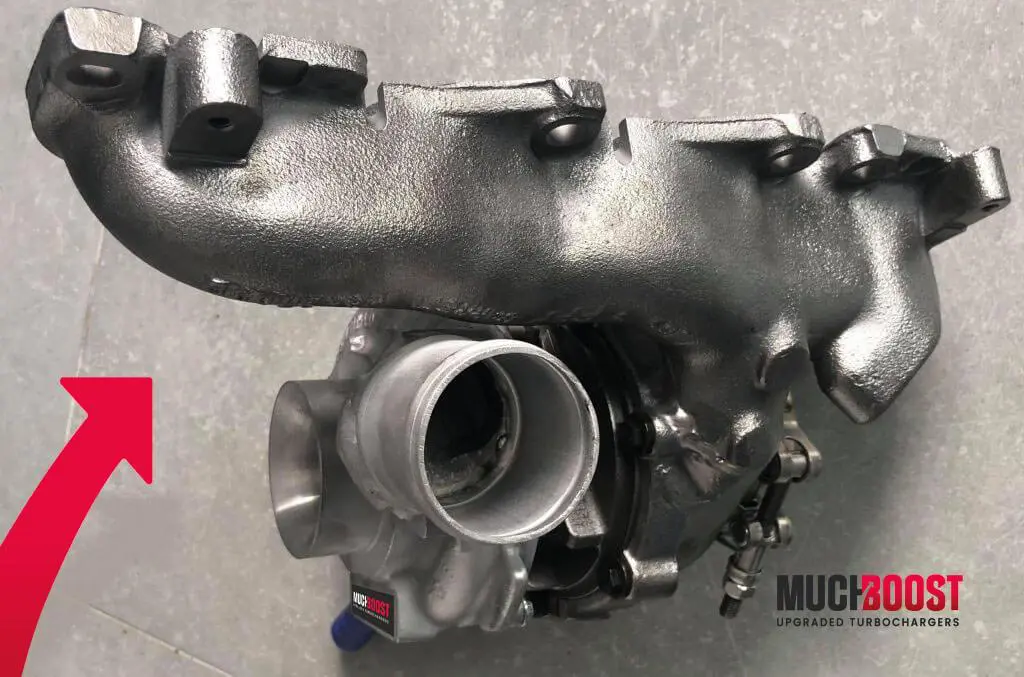

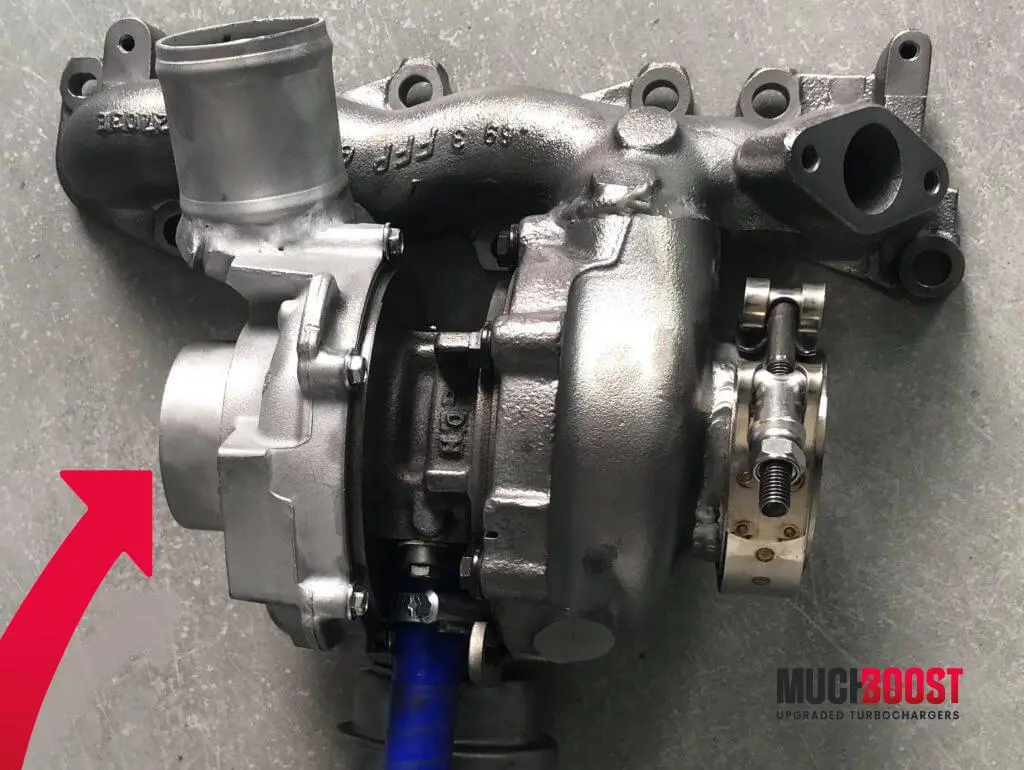

MuchBoost GTD1752VRK Upgraded Turbocharger with a Custom Billet Compressor Wheel. It is based on an original Garrett TurbochargerThe turbocharger is meant to work with Opel Astra, Signum, Vectra, Zafira, Croma, Fiat Stilo, Saab 9-3 with the 1.9CDTI 100-150HP engines.

The turbo delivers up to 161% power (145 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

Main Features
  • The potential ~230HP,
  • Fast spool thanks to Custom Billet Compressor Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • Genuine Ceramic Ball Bearings,
  • Genuine Garrett compressor housing,
  • Genuine Garrett exhaust manifold,
  • Genuine Garrett bearing housing,
  • The turbo is cooled just by oil (no complication with water cooling fittings).
  • Upgraded Journal bearing system that allows holding more boost,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Mounting tips:

Steps to be performed during assembly:

  • The Installation of a larger DP (you will receive the V-band flange with the turbocharger). You can modify the factory DP using our flange, but that will be a limitation. A new downpipe with a larger diameter is strongly recommended.
  • New stainless or silicone Inlet + Outlet pipes.
  • Modification of the stock oil return line (the line and the clamps are included)
Other significant modifications

The turbo is meant to work with ~230HP @28PSI In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with the turbo!


Cars
Opel Astra H 1.9 CDTI 100HP
Opel Astra H 1.9 CDTI 120HP
Opel Astra H 1.9 CDTI 150HP
Opel Signum 1.9 CDTI 120HP
Opel Signum 1.9 CDTI 150HP
Opel Vectra C 1.9 CDTI 100HP
Opel Vectra C 1.9 CDTI 120HP
Opel Vectra C 1.9 CDTI 150HP
Opel Zafira B 1.9 CDTI 120HP
Opel Zafira B 1.9 CDTI 100HP
Opel Zafira B 1.9 CDTI 150HP
Fiat Croma II 1.9 JTD 150HP
Fiat Croma II 1.9 JTD 120HP
Fiat Stilo 1.9 JTD 120HP
Saab 9-3 II 1.9 TiD 150HP


Factory numbers

767835-5003S
767835-9003S
755042-5003S
755042-9003S
755042-5002S
755373-0001
752814-0001
740080-0002
773720-5001S
766340-5001S
755046-0003
755046-0002
755046-0001
740067-0002
755046-9002S

Engines

Z19DT, Z19DTL, Z19DTH


OEM number

5860031
93192073
55193105
55205179
55195787
55196858
93183681
860074
860129
860074
849348
860549
849537
5860015
55205356
55196766
55196859
93169106


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
