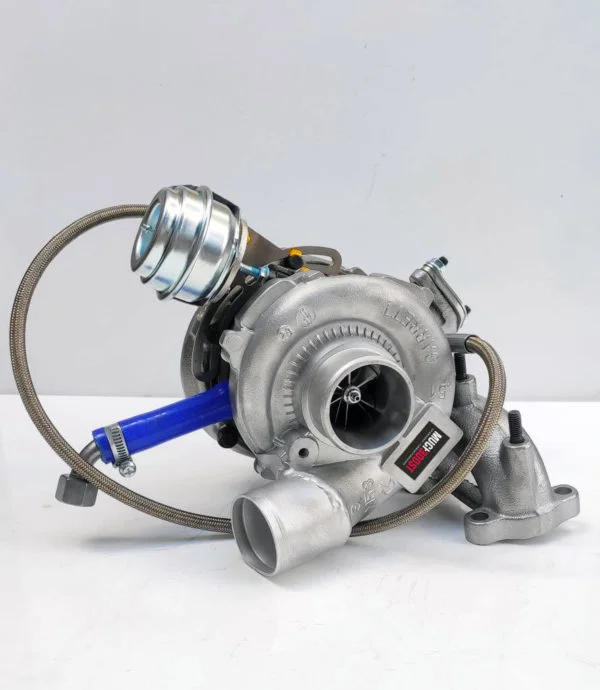

GTB2262VKLR 1.9TDI Ball Bearing Hybrid Turbo vacuum converted with a welded 1.9/2.0 TDI Manifold
1568,80 € – 1718,80 €
In Stock
MuchBoost GTB2262VKLR turbocharger professionally adapted to 1.9TDI, or 2.0TDI transverse and longitudinal VE, PD, and Common Rail engines (all the engine codes are mentioned at the bottom of this page.) The turbo is equipped with a Custom Billet Compressor Wheel GEN I 6+6 blades and genuine ceramic ball bearings. The base is an original Garrett […]
MuchBoost GTB2262VKLR turbocharger professionally adapted to 1.9TDI, or 2.0TDI transverse and longitudinal VE, PD, and Common Rail engines (all the engine codes are mentioned at the bottom of this page.) The turbo is equipped with a Custom Billet Compressor Wheel GEN I 6+6 blades and genuine ceramic ball bearings.
The base is an original Garrett Ceramic Ball Bearing turbocharger from the Mercedes OM642 engine.
Main Features
- The potential 320HP,
- Fast spool thanks to Billet Compressor Wheel and ball bearings,
- Low manifold pressures at high RPM,
- High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
- GTB2260VKLR series machined compressor housing.
- GTB2260VKLR series bearing housing.
- GTB2260VKLR series machined exhaust housing.
- The manifold comes from KKK or Garrett turbochargers (it depends on your stock turbo).
- Ceramic Garrett Ball Bearings.
- 62mm High Flow Compressor Wheel 6+6 blades GEN I.
- GTB22VK 9 blades turbine wheel.
- The turbo is cooled by oil and water.
- Garrett 3rd generation of VNT (Variable Nozzle Turbine).
- The VNT actuator adaptation – standard vacuum or electronic (it depends on your stock turbo).
- Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
*All the parts are genuine, made by Garrett/KKK (BorgWarner).
Mounting tips:
Steps to be performed during assembly:
- The Installation of a larger DP (you will receive the flange with the turbocharger),
- Modification of compressor housing pipes,
- Additional installation of water lines (2 going from the heating coil, you can connect with them).
Other significant modifications
The turbo is meant to work with ~320HP at 38PSI of boost. In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
You might also consider
Engine Codes
BKD, AZV, BKP, ECE, PDE, BEW, BSY, ALH, ASV, ASZ, ARL, BLT, BPX, AHF, ARL, ATD, AVK, AUY, AJM, AVB, AJM, AHH, ATJ, AFN, AWX, AFV, BGW, BLB, BPW, CBEA, CJAA, CFFB, CBAB, CBDA, CBDB, CBDC, CFHC, CBAA, BMN, BMR, BUY, BUZ, CBBB, CRLB, CRBC, CRBB, CUNA, CUPA, CKF, CKFC, CRMB, CUUA, CUUB, CFGB, CFFA, CLLA, CFGC, CFJB, CKRU, BRE, BRF, BVF, BVG, BLB, etc.
A set of gaskets, and an oil feed line with an oil restrictor, oil return line, water feed line, water return line, and downpipe flange are included with every option you choose!
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
ACTUATOR | STANDARD, ELECTRONIC |
---|
