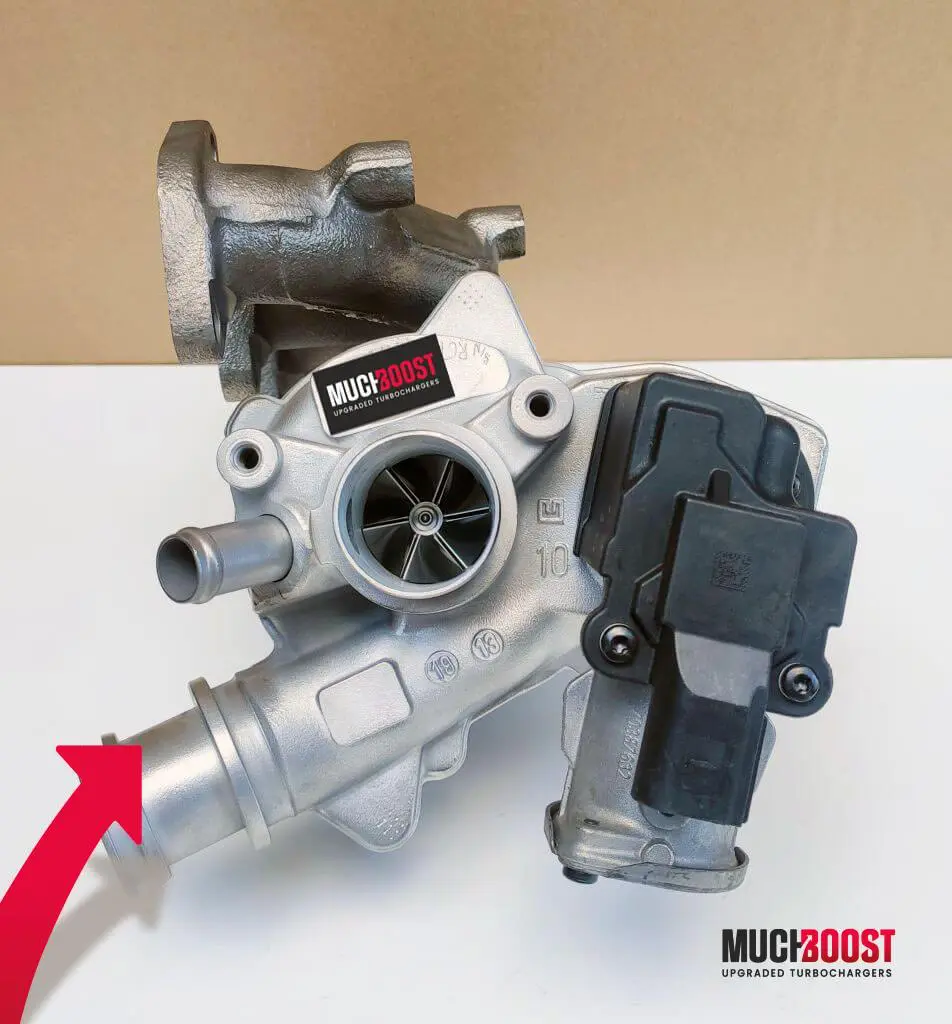

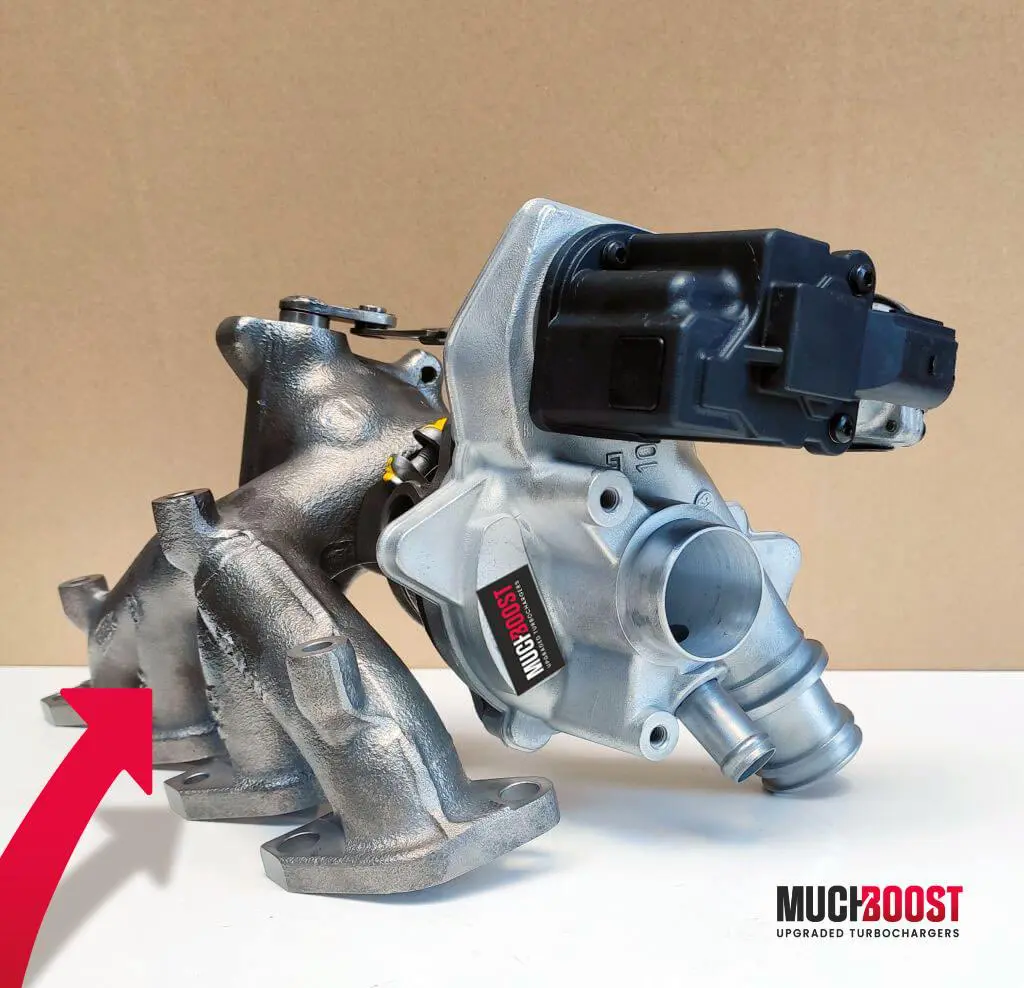

MuchBoost EA111 Upgraded Turbocharger with a Custom Billet Compressor Wheel 6+6 Blades and a Clipped and Lightened Turbine Wheel. It is based on an original Mahle/Mitsubishi Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A1 8X, VW Golf VII, Seat Ibiza V, Skoda Rapid, and others with the EA111 1.2TSI  86-105HP engines.

The turbo delivers up to 197% power (84 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

Main Features
  • The potential 170HP,
  • Fast spool thanks to Custom Billet Compressor Wheel,
  • Clipped and Lightened Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • Genuine Mahle/Mitsubishi compressor housing,
  • Genuine Mahle/Mitsubishi exhaust manifold,
  • Genuine Mahle/Mitsubishi bearing housing,
  • Original Mahle/Mitsubishi actuator,
  • Upgraded Journal bearing system that allows holding more boost,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with ~170HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with the turbo!


Cars

Audi A1 8X1 1.2 TFSI 2010/05-2014/12, 63 KW, 86 PS
Audi A1 Sportback 8XA 1.2 TFSI 2012/01-2014/12, 63 KW, 86 PS
Audi A3 8P1 1.2 TSI 2010/04-2012/08, 77 KW, 105 PS
Audi A3 8V1 1.2 TFSI 2013/02-2014/12, 77 KW, 105 PS
Audi A3 Cabriolet 8P7 1.2 TFSI 2010/03-2014/12, 77 KW, 105 PS
Audi A3 Limousine 8VS 1.2 TFSI 2013/10-2014/12, 77 KW, 105 PS
Audi A3 Sportback 8PA 1.2 TSI 2010/04-2014/12, 77 KW, 105 PS

Seat Altea 5P1 1.2 TSI 2010/04-2014/12, 77 KW, 105 PS
Seat Altea XL 5P5, 5P8 1.2 TSI 2010/04-2014/12, 77 KW, 105 PS
Seat Ibiza V 6J5 1.2 TSI 2010/09-2014/12, 77 KW, 105 PS
Seat Ibiza V 6J5 1.2 TSI 2012/08-2014/12, 63 KW, 86 PS
Seat Ibiza V Sportcoupe 6J1 1.2 TSI 2010/09-2014/12, 77 KW, 105 PS
Seat Ibiza V ST 6J8 1.2 TSI 2010/09-2014/12, 77 KW, 105 PS
Seat Ibiza V ST 6J8 1.2 TSI 2012/09-2014/12, 63 KW, 86 PS
Seat Leon 1P1 1.2 TSI 2010/02-2014/12, 77 KW, 105 PS
Seat Leon 5F1 1.2 TSI 2012/12-2014/12, 63 KW, 86 PS
Seat Leon 5F_ 1.2 TSI 2013/01-2014/12, 77 KW, 105 PS
Seat Toledo IV KG3 1.2 TSI 2012/07-2014/12, 63 KW, 86 PS
Seat Toledo IV KG3 1.2 TSI 2012/07-2014/12, 77 KW, 105 PS

Skoda Fabia 1.2 TSI 2010/03-2014/12, 77 KW, 105 PS
Skoda Fabia 1.2 TSI 2010/03-2014/12, 63 KW, 86 PS
Skoda Fabia Combi 1.2 TSI 2010/03-2014/12, 63 KW, 86 PS
Skoda Fabia Combi 1.2 TSI 2010/03-2014/12, 77 KW, 105 PS
Skoda Octavia 1Z3 1.2 TSI 2010/02-2014/12, 77 KW, 105 PS
Skoda Octavia 5E3 1.2 TSI 2012/11-2014/12, 63 KW, 86 PS
Skoda Octavia 5E3 1.2 TSI 2012/11-2014/12, 77 KW, 105 PS
Skoda Octavia Combi 1Z5 1.2 TSI 2010/02-2014/12, 77 KW, 105 PS
Skoda Octavia Combi 5E5 1.2 TSI 2012/11-2014/12, 63 KW, 86 PS
Skoda Octavia Combi 5E5 1.2 TSI 2012/11-2014/12, 77 KW, 105 PS
Skoda Rapid 1.2 TSI 2012/07-2014/12, 63 KW, 86 PS
Skoda Rapid 1.2 TSI 2012/07-2014/12, 77 KW, 105 PS
Skoda Rapid Spaceback NH3 1.2 TSI 2012/07-2014/12, 63 KW, 86 PS
Skoda Rapid Spaceback NH3 1.2 TSI 2012/07-2014/12, 77 KW, 105 PS
Skoda Roomster 5J 1.2 TSI 2010/03-2014/12, 63 KW, 86 PS
Skoda Roomster 5J 1.2 TSI 2010/03-2014/12, 77 KW, 105 PS
Skoda Roomster Praktik 5J 1.2 TSI 2010/03-2014/12, 63 KW, 86 PS
Skoda Yeti 5L 1.2 TSI 2009/09-2014/12, 77 KW, 105 PS

VW Beetle 5C1 1.2 TSI 2011/07-2014/12, 77 KW, 105 PS
VW Beetle Cabriolet — 1.2 TSI 2012/12-2014/12, 77 KW, 105 PS
VW Caddy III Kasten 2KA, 2KH, 2CA, 2CH 1.2 TSI 2010/09-2014/12, 63 KW, 86 PS
VW Caddy III Kasten 2KA, 2KH, 2CA, 2CH 1.2 TSI 2010/09-2014/12, 77 KW, 105 PS
VW Caddy III Kombi 2KB, 2KJ, 2CB, 2CJ 1.2 TSI 2010/09-2014/12, 63 KW, 86 PS
VW Caddy III Kombi 2KB, 2KJ, 2CB, 2CJ 1.2 TSI 2010/09-2014/12, 77 KW, 105 PS
VW Golf Plus 5M1, 521 1.2 TSI 2009/11-2014/12, 77 KW, 105 PS
VW Golf Plus 5M1, 521 1.2 TSI 2010/05-2014/12, 63 KW, 86 PS
VW Golf VI 5K1 1.2 TSI 2009/05-2012/11, 77 KW, 105 PS
VW Golf VI 5K1 1.2 TSI 2010/05-2012/11, 63 KW, 86 PS
VW Golf VI Cabriolet 517 1.2 TSI 16V 2013/11-2014/12, 77 KW, 105 PS
VW Golf VI Cabriolet 517 1.2 TSI 2011/03-2013/11, 77 KW, 105 PS
VW Golf VI Variant AJ5 1.2 TSI 2009/08-2014/12, 77 KW, 105 PS
VW Golf VI Variant AJ5 1.2 TSI 2010/07-2014/12, 63 KW, 86 PS
VW Golf VII 5G1 1.2 TSI 2012/08-2014/12, 63 KW, 86 PS
VW Golf VII 5G1 1.2 TSI 2012/11-2014/12, 77 KW, 105 PS
VW Golf VII Variant 1.2 TSI 2013/07-2014/12, 63 KW, 86 PS
VW Golf VII Variant 1.2 TSI 2013/07-2014/12, 77 KW, 105 PS
VW Jetta IV 162 1.2 TSI 2011/02-2014/12, 77 KW, 105 PS
VW Polo 6R_ 1.2 TSI 2009/11-2014/12, 77 KW, 105 PS
VW Polo 6R_ 1.2 TSI 2011/05-2014/12, 66 KW, 90 PS
VW Touran 1T3 1.2 TSI 2010/05-2014/12, 77 KW, 105 PS


Factory numbers

03F145701C
03F145701D
03F145701E
03F145701F
03F145701G
03F145701L
03F145701S
03F145701K
03F145701KV
03F145701KX
03F145701H

Engines

CBZA, CBZB, CBZC


OEM number

0608100056


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
