  • DV6TED4/1.6HDi Hybrid Turbo Upgrade Citroen C3, C4, C5, Peugeot 1007, 206, 207, 307, 407, Volvo C30, S40, V50
+
Add to Wishlist
Add to Wishlist

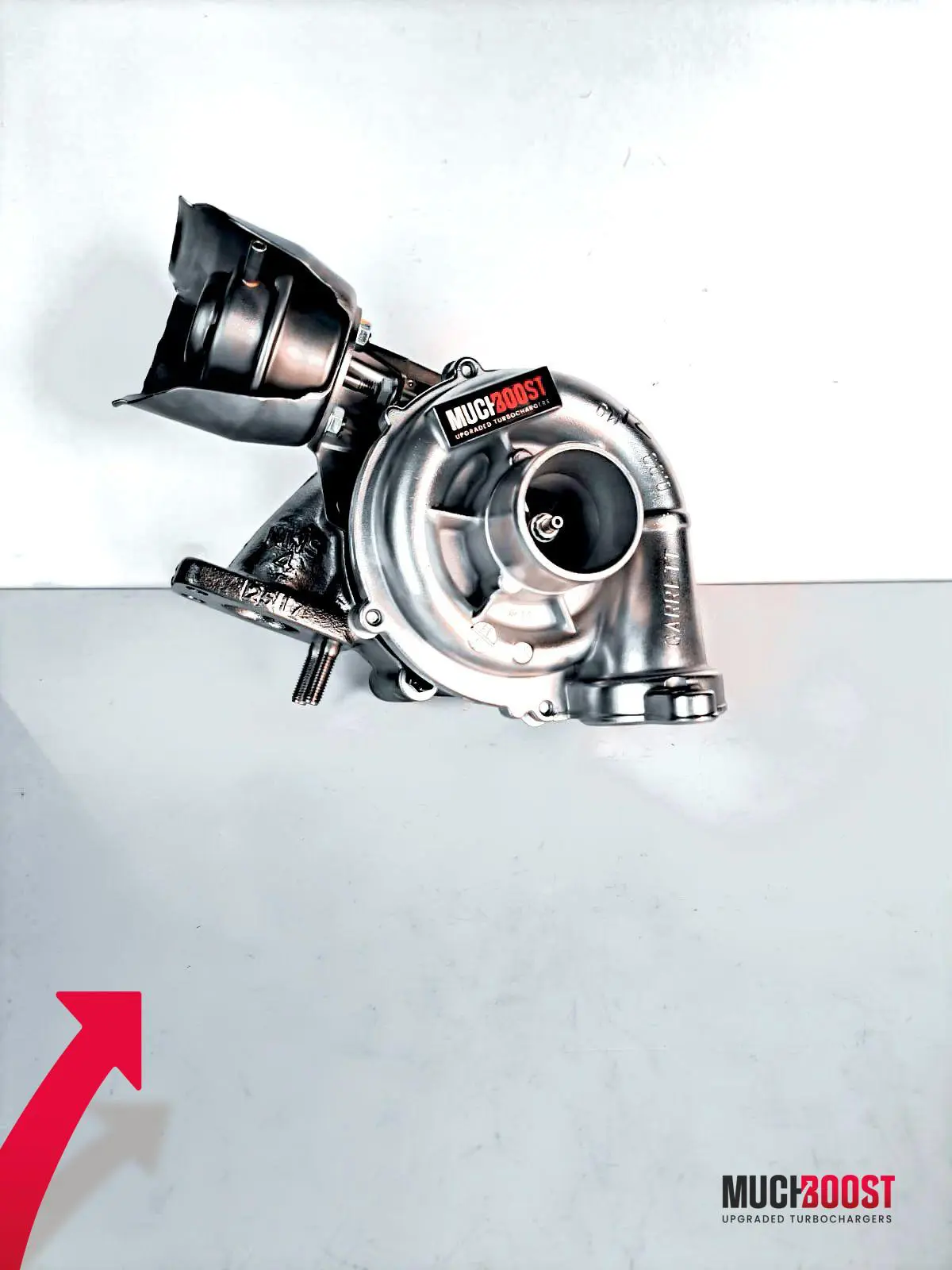

MuchBoost W16/DV6TED4/D4164T Upgraded Turbocharger with a Custom Billet Compressor Wheel and a Clipped Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Mini Cooper D R55/R56, Citroen Berlingo, C2, C3, C4, C5, Picasso, Xsara, Ford C-MAX, Mazda 3, Peugeot 1007, 206, 207, 3008, 307, 308, 407, 5008, Partner, Volvo C30, S40 II, and V50 with the W16/DV6TED4/D4164T 109-110 HP engines.

The turbo delivers up to 155% power (61 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 150HP to 170HP.

MuchBoost DV6TED4 150

Upgraded turbocharger with an estimated ~150HP at the crank. List of modifications:

  • Precisely machined seal plates and compressor housing,
  • Clipped Turbine Wheel,
  • Genuine Garrett  compressor housing,
  • Genuine Garrett bearing housing,
  • Genuine Garrett exhaust manifold,
  • Original actuator,
  • Upgraded Journal bearing system that allows holding more boost,
  • Fast spool thanks to Custom Billet Compressor Wheel,
  • Dynamically balanced,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost DV6TED4 170

Upgraded turbocharger with an estimated potential of ~170HP at the crank. Modifications compared to the 150 option are the same except:

  • Enlarged Compressor Wheel,
  • Bigger Turbine Wheel,
  • Machined exhaust housing.
Main Features
  • The potential ~160HP,
  • Fast spool thanks to Custom Billet Compressor Wheel,
  • Clipped Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds,
Other significant modifications

The turbo is meant to work with ~150-170HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.


A set of gaskets is included with every option you choose!


Cars
Mini Cooper D R55/R56 – 110HP
Citroen Berlingo 1.6HDi – 109HP
Citroen C2 1.6HDi – 109HP
Citroen C3 1.6HDi – 109HP
Citroen C4 1.6HDi – 109HP
Citroen C5 1.6HDi – 109HP
Citreon Picasso 1.6HDi – 109HP
Citroen Xsara 1.6HDi – 109HP
Ford C-MAX 1.6TDCi – 109HP
Mazda 3 1.6 DI – 109HP
Peugeot 1007 1.6HDi – 109HP
Peugeot 206 1.6HDi – 109HP
Peugeot 207 1.6HDi – 109Hp
Peugeot 3008 1.6HDi – 109Hp
Peugeot 307 1.6HDi – 109HP
Peugeot 308 1.6HDi – 109HP
Peugeot 407 1.6HDi – 109HP
Peugeot 5008 1.6HDi – 109HP
Peugeot Partner 1.6HDi – 109HP
Volvo C30 1.6D – 109HP
Volvo S40 II 1.6D – 109Hp
Volvo V50 1.6D – 109HP


Factory numbers

753420-5006S
753420-9006S
753420-5005S
753420-5004S
753420-0004
753420-0002
750030-0002
740821-0002

Engines

W16, DV6TED4, D4164T


OEM number

9656125880
9663199280
9657248680
9660641380
9650764480
Y60113700G
0375J8, 0375J7
3M5Q-6K682-AE
0375J6
0375J8
0375J7
Y60113700G
Y60113700C
11657804903


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.



POWER RANGE

150HP, 170HP
