  • CQGB BiTDI 3.0 Hybrid Turbo Upgrade Audi A6, A7, SQ5, DEHA, CVUB
+

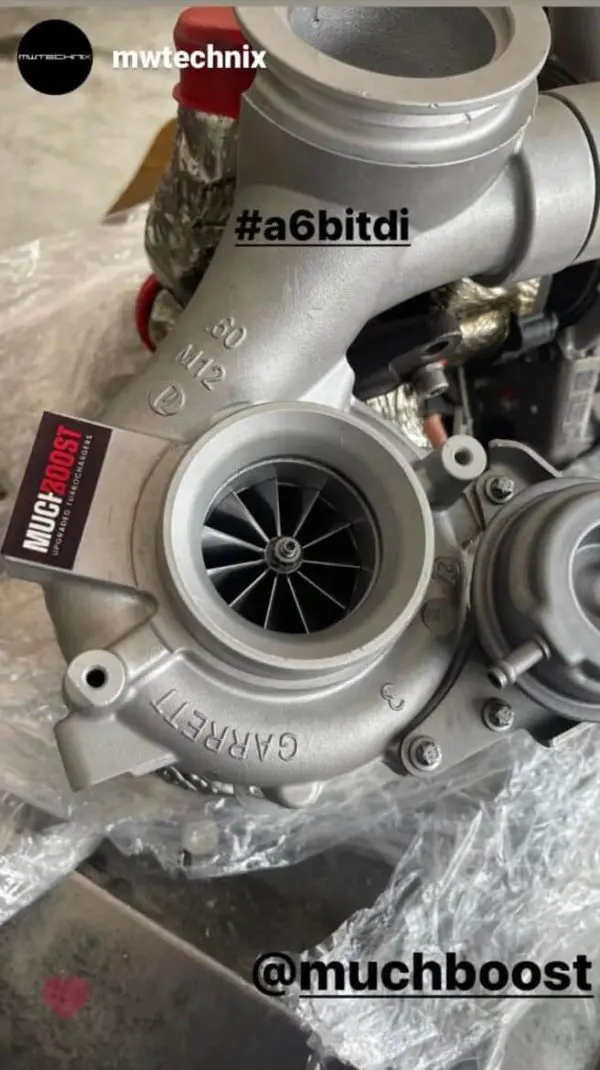

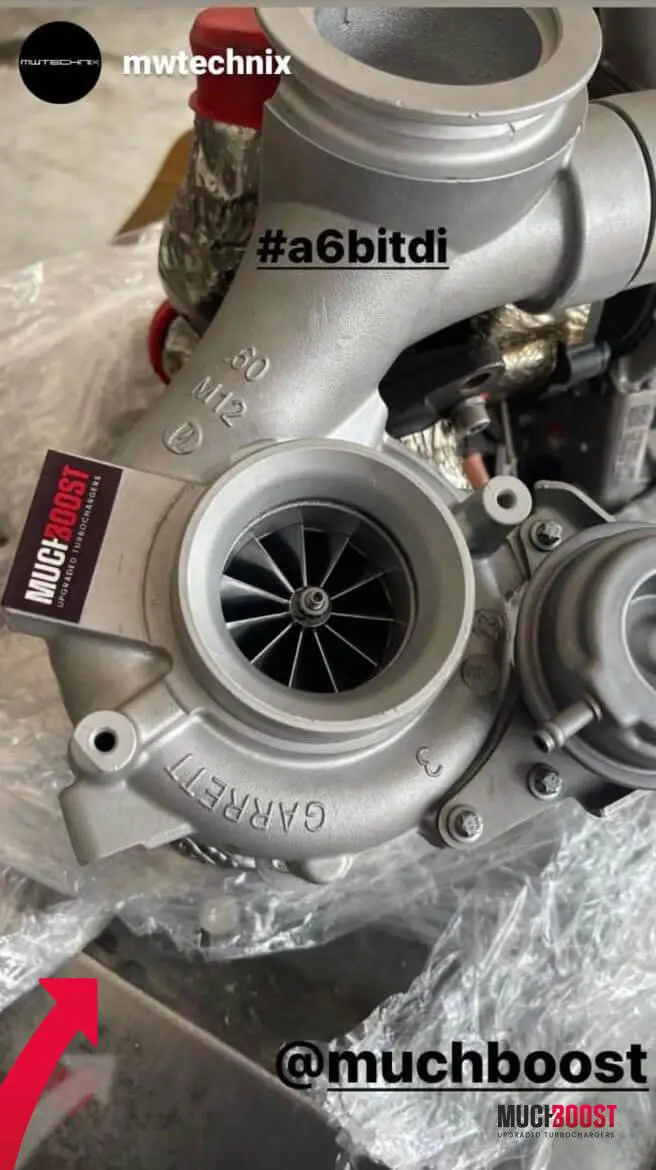

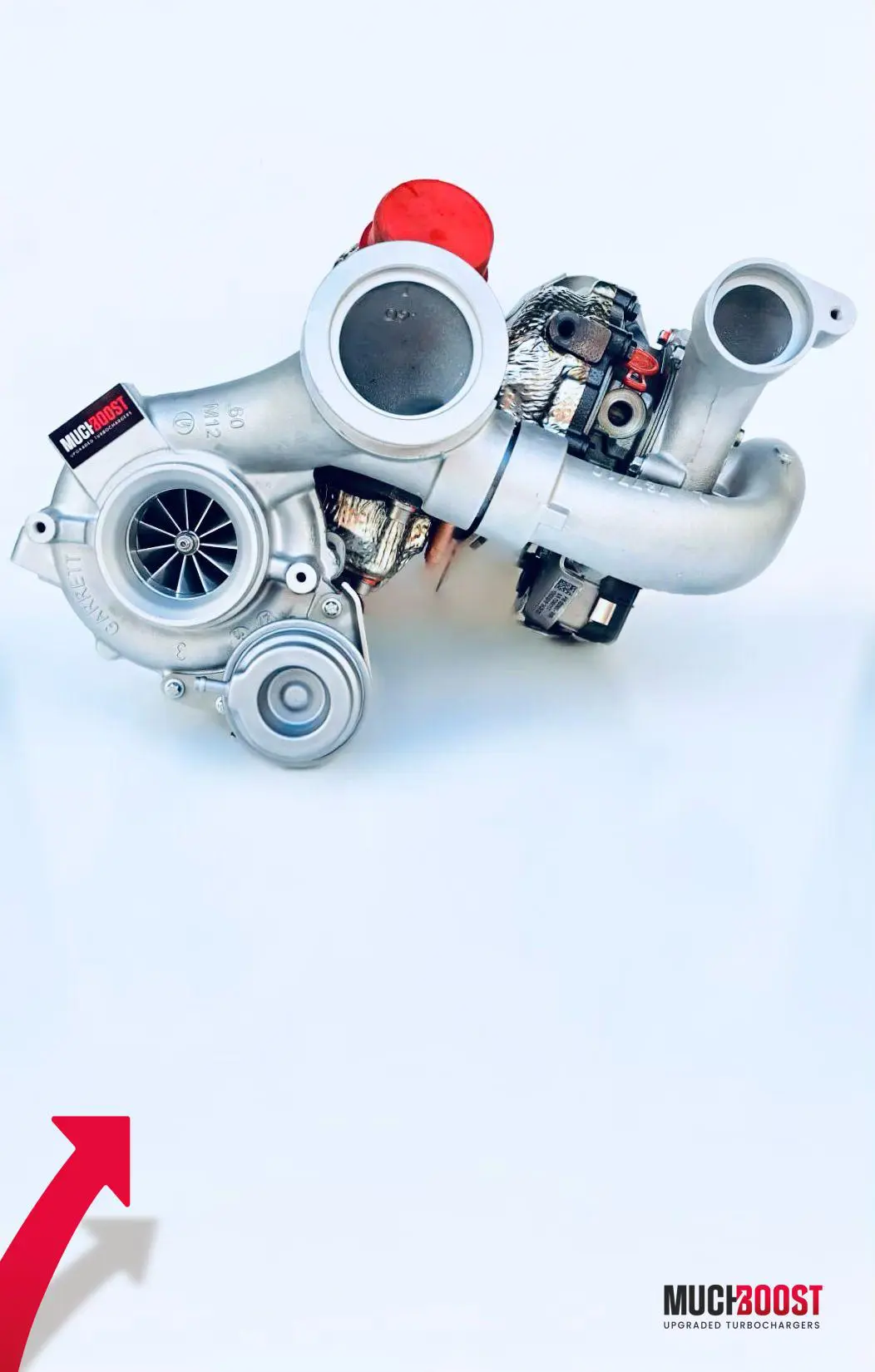

MuchBoost 3.0BiTDI Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged High Flow 9 blades Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A6 (C7). A7 (C7), SQ5 (8R) with the DEHA, CVUB, CGQB BiTDI 313-326HP engine.

The turbos deliver up to 159% power (187 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

We have developed 2 modification options that allow you to reach anywhere from 450HP to 500HP.

MuchBoost CQGB 450

Upgraded turbocharger with an estimated 450HP at the crank. The list of modifications:

Small Turbo
  • Refurbished
Big Turbo
  • Machined compressor housing,
  • Modified seal plate,

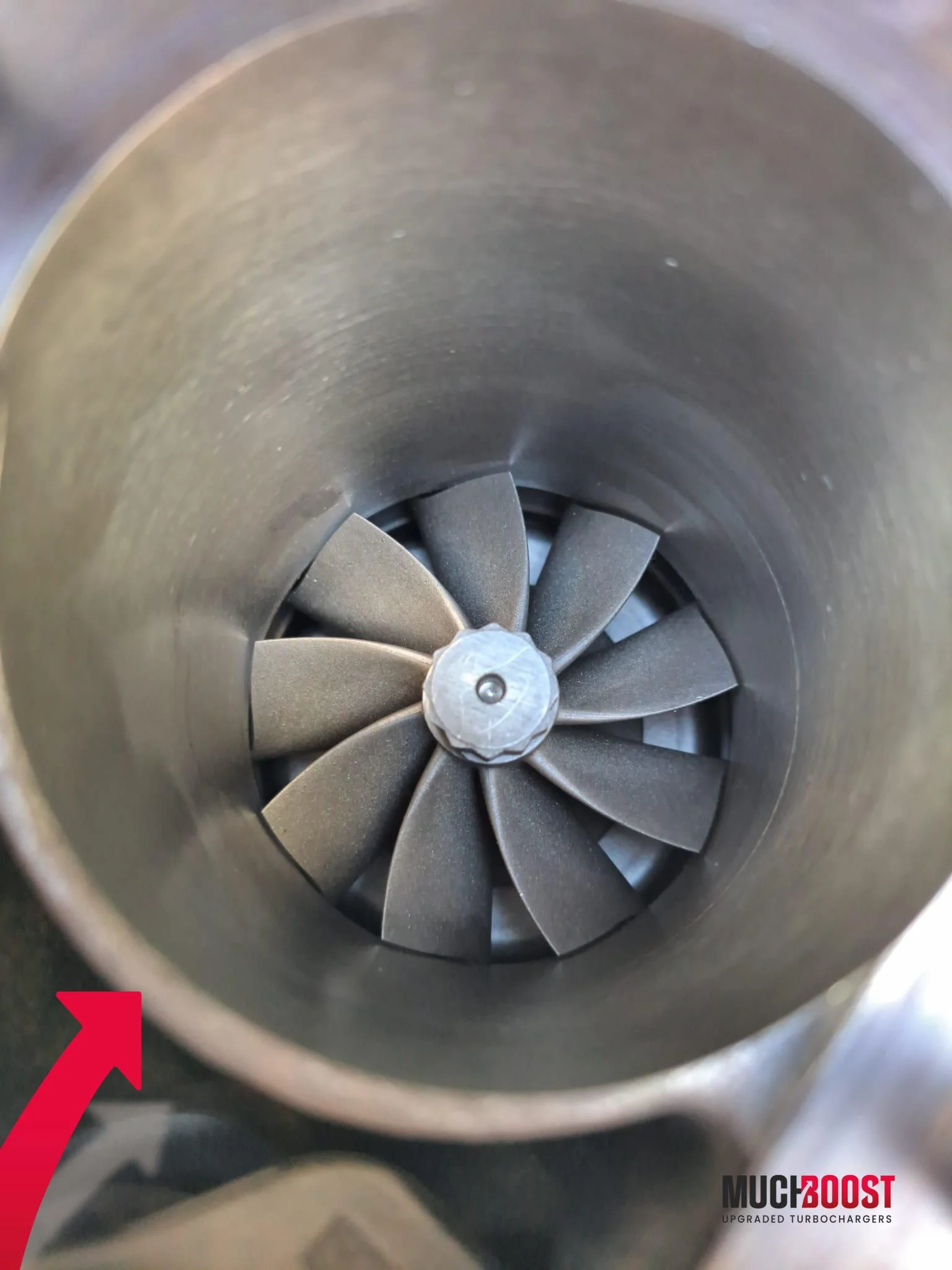

  • Enlarged Billet Compressor Wheel,
  • Lightened GT30 High-Flow Turbine Wheel.
  • Fast spool thanks to Custom Billet Compressor Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speed,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost CQGB 500

Upgraded turbocharger with an estimated potential of 500HP at the crank. Modifications compared to the 450 option are the same, except:

Big Turbo
  • Enlarged High-Flow 9 Blades Turbine Wheel,
  • Precisely machined exhaust housing.
Other significant modifications

The turbo is meant to work with ~450-500HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example project

One of our clients managed to produce 487HP and 839Nm of torque. The car was also equipped with:

  • Wagner Tuning Intercooler,
  • Audi RS6/7 Airbox,
  • Audi SQ7 high-pressure fuel pump (HPFP),
  • Metering unit in the pump from BMW M550dd G30.
  • DPF deleted.

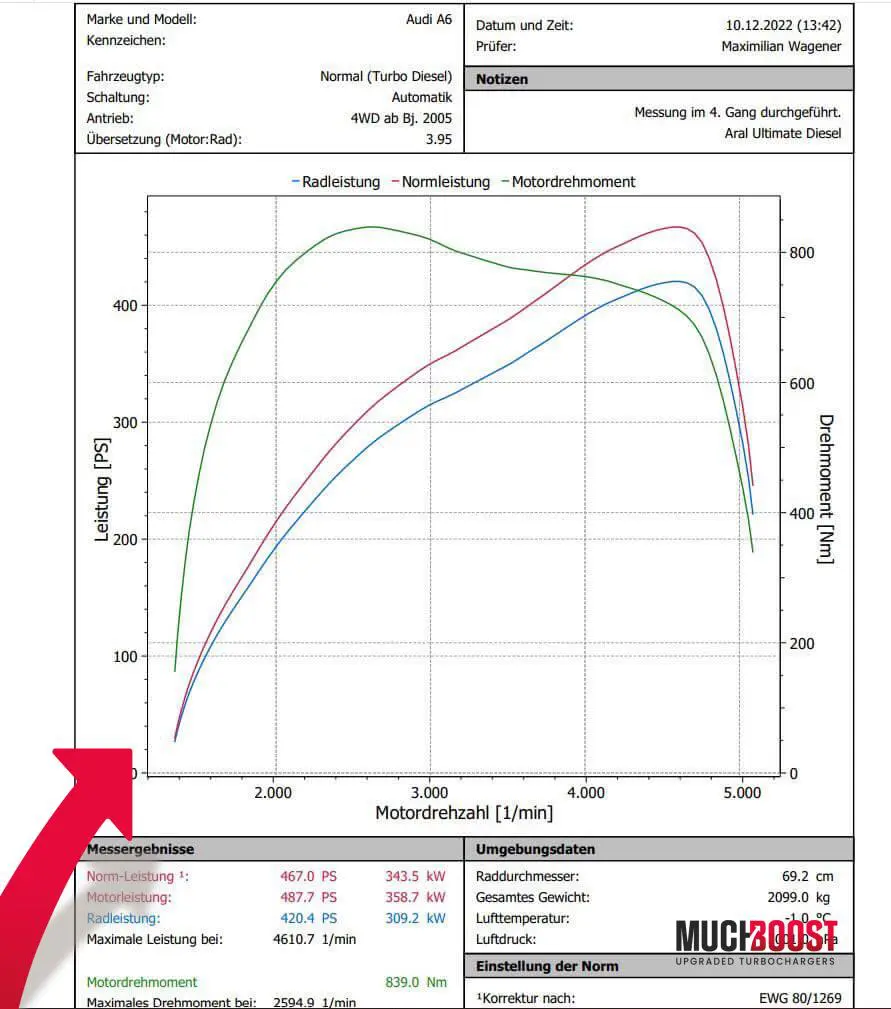

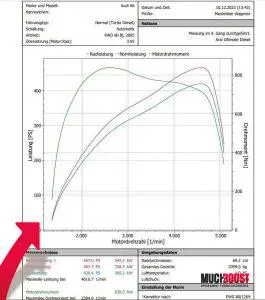

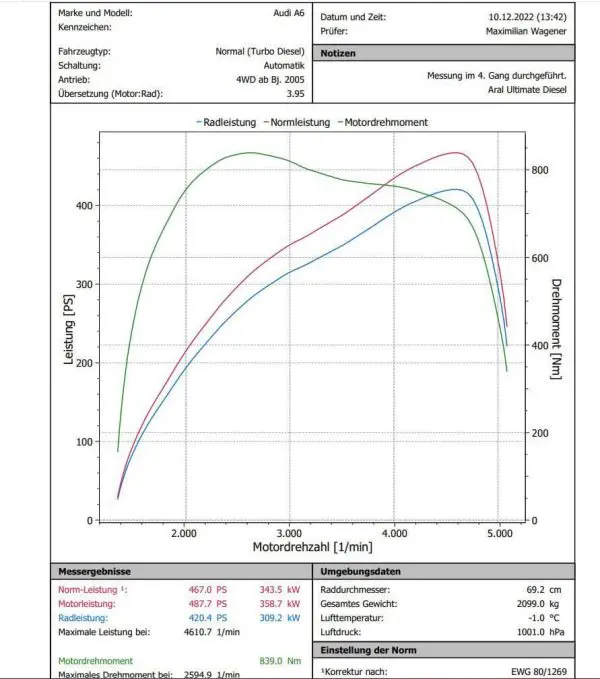

Dyno graph below.


A set of gaskets is included with every option you choose!


Cars
Audi A6 C7 3.0 BiTDI – 313HP
Audi A6 C7 Allroad 3.0 BiTDI – 320HP
Audi A6 C7 Competition – 326HP
Audi A7 C7 3.0 BiTDI – 313/320HP
Audi A7 C7 Competition – 326HP
Audi SQ5  8R 3.0 BiTDI – 313HP


Factory numbers

805713-5009S
805713-5008S
805713-5007S
805713-5004S
825965-6
825965-7
825965-8
827334-7
830245-2
830245-7
825965-0006
825965-0007
825965-0008
825965-5006
825965-5007
827334-0007
827334-5007
830245-0002
830245-0007
830245-5002
830245-5007
825965-5006S
825965-5007S
825965-5008S
827334-5007S
830245-5002S
830245-5007S

Engines

CGQB BiTDI, CVUB, CVUA, DEHA


OEM number

059145061Q
059145061QX
059145061QV
059145654Q
059145061L
059145654L
059145653L
059145061AA
059145061AB
059145061AE
059145061AF
059145061AG
059145061AH
059145061AK
059145061AL
059145063AG
059145654AG


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.


* Just upgrade option means that we will modify your turbochargers once you sent them to us. The turbo can’t be cracked and must be genuine.

Complete turbos option is for those who want to buy a fully built turbo set ready to install in the car.

POWER RANGE

450HP, 500HP

PRODUCT TYPE*

JUST UPGRADE, COMPLETE TURBOS
