  • CLAA, CLAB 3.0TDI V6 Hybrid Turbo Upgraded Audi Q7, A4, A6, A7, VW Touareg, Porsche Cayenne II CLZB, CVWA, CDUC, CKVC
+

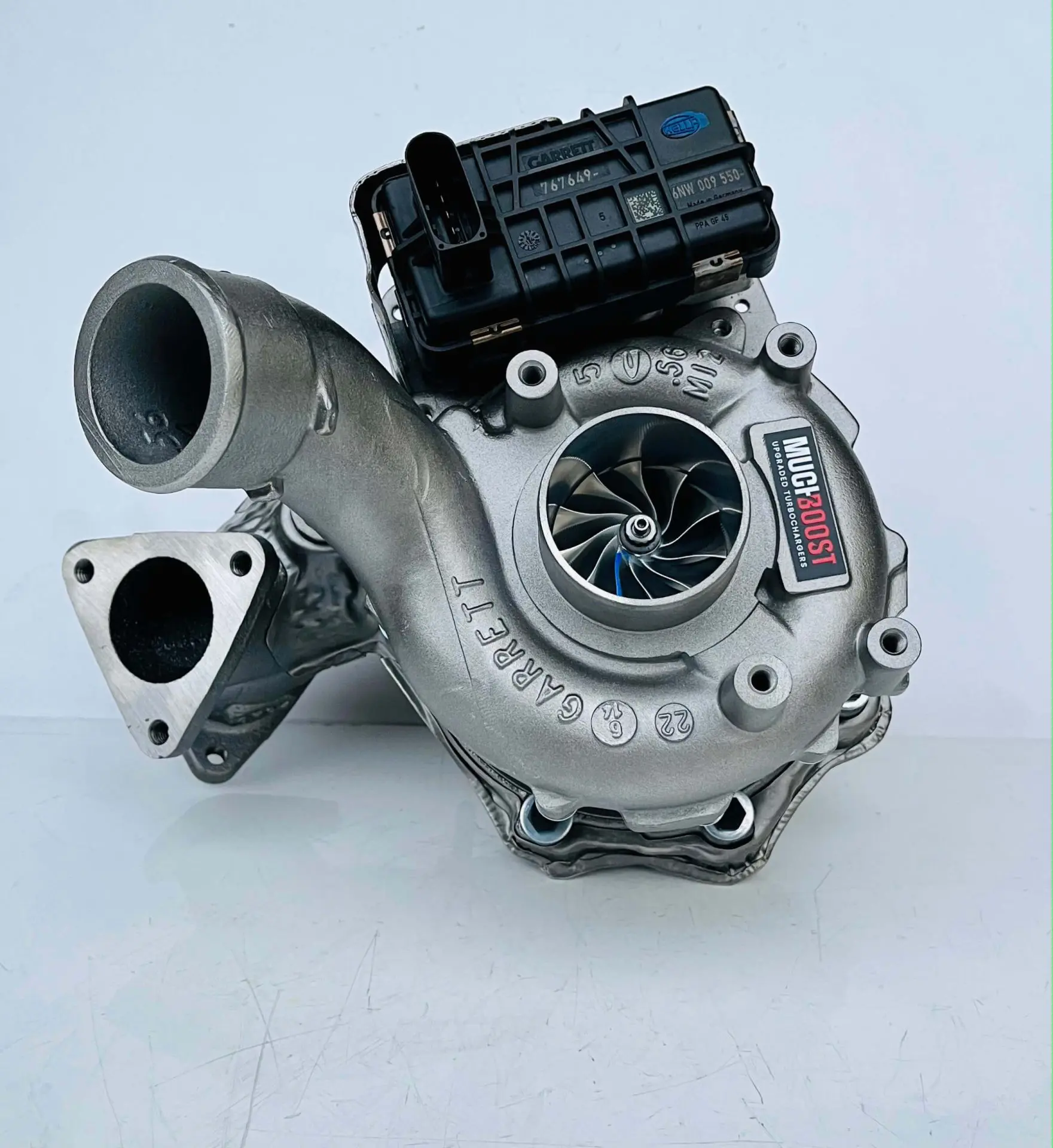

MuchBoost 3.0TDI CL/CT/CV Upgraded Turbocharger with a Custom Billet Compressor Wheel and Enlarged Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A6, A8, Q7,  VW Touareg, Porsche Cayenne, and others with the 3.0TDI CL/CT/CV 204-262HP engines.

The turbo delivers up to 196% power (196 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.

MuchBoost 3.0TDI CL/CT/CV 350

Upgraded turbocharger with an estimated potential ~350HP at the crank. The list of modifications:

  • Fast spool thanks to Enlarged Custom 6+6 Blades Billet Compressor Wheel,
  • Enlarged GTB22VZK Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
  • Genuine Garrett GTB20VZK compressor housing,
  • Genuine Garrett GTB20VZK exhaust housing,
  • Genuine Garrett GTB20VZK bearing housing,
  • Precisely machined compressor housing, exhaust housing and seal plate,
  • Upgraded Journal bearing system that allows holding more boost,
  • Genuine Hella VNT actuator,
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
MuchBoost 3.0TDI CL/CT/CV 400

Upgraded turbocharger with an estimated potential ~400HP at the crank. Modifications compared to the 350 option are the same except:

  • Enlarged Billet Compressor Wheel 11+0 blades,
  • Enlarged High Flow  blades Turbine Wheel.
Other significant modifications

The turbo is meant to work with ~350-400HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example project

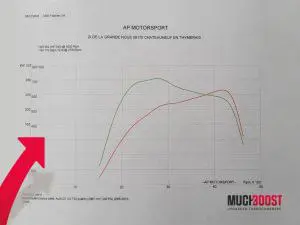

One of our clients managed to get 343HP and 710Nm of torque (at 1.9Bar) with this turbo. Please take a look at the dyno graph below.


A set of gaskets is included with every option you choose!


Cars
Audi A4 B8 3.0TDI – 204/245HP
Audi Allroad A4 B8 3.0TDI – 245HP
Audi A5 8T 3.0TDI – 204/245HP
Audi A6 C7 3.0TDI – 204/245HP
Audi Allroad A6 C7 3.0TDI
Audi A7 4G 3.0TDI – 204/245HP
Audi A8 D4 3.0TDI – 204/245/258/262HP
Audi Q5 8R 3.0TDI – 245HP
Audi Q7 4L 3,0TDI – 240/245HP
VW Touareg II 3.0TDI – 204/245HP
Porsche Cayenne II 3.0TDI – 245HP


Factory numbers

059145874J
059145874JX
059145874JV
059145874D
059145874DX
059145874T
059145874TX
059145874TV
059145874L
059145874M
059145874MX
059145874MV

Engines

CLAA, CLAB, CLZB, CVWA,
CDUC, CKVC, CNRB, CPNB,
CTCB, CTCC, CLZE, MCR.CA,
CDUD, CTBA, CTBC,CKVB,
CKVD, CGLC, CDTB, CTBB,
CTBD, CJGA, CJGC, CJGD,
CJMA, CRCA, CVVA, CASA,
CCMA


OEM number

804986-5005S
804986-5004S
804986-5002S
799672-5002S
799672-5001S
819968-5001S
810822-5003S
810822-5002S
810822-5001S
819968-0001
810822-0003
810822-0002
810822-0001
810587-5002S
810587-5001S
810587-0002
810587-0001


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.

POWER RANGE

350HP, 400HP
