  • Billet Wheel GTB2871VK Hybrid Turbo Upgrade vacuum converted 1.9/2.0 TDI

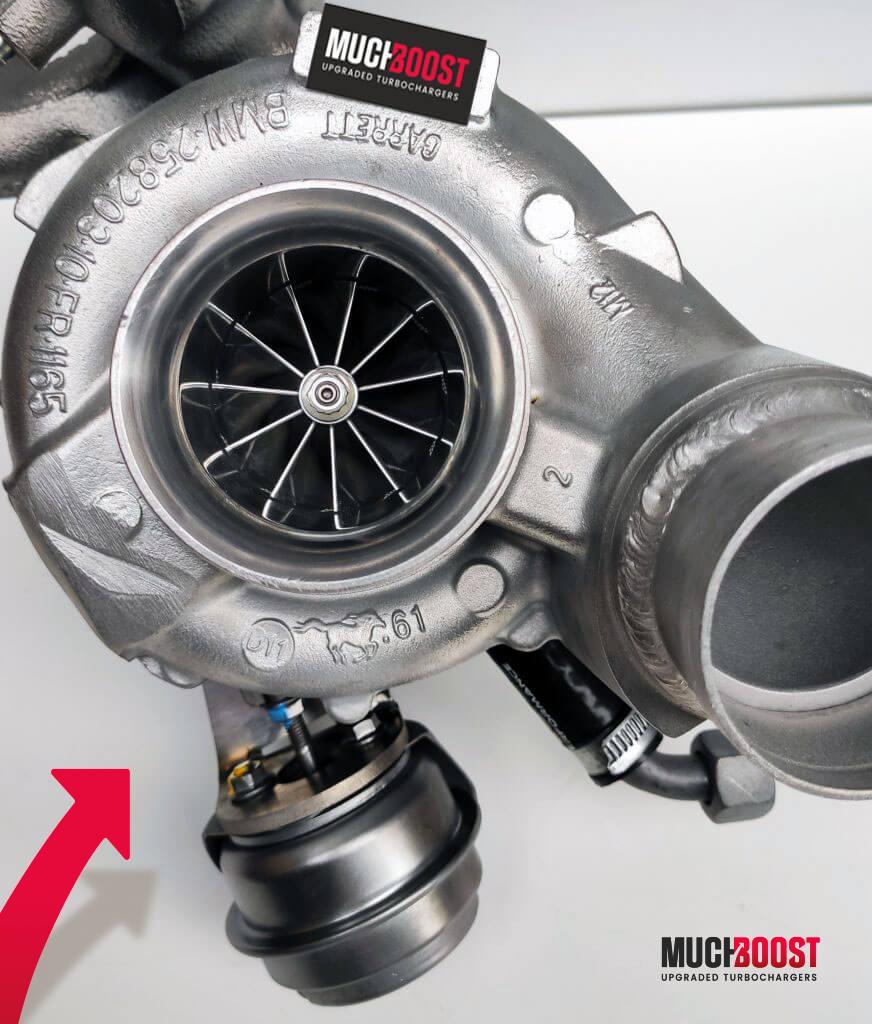

MuchBoost GTB2871VK turbocharger is professionally built for diesel engines with VNT turbochargers. The turbo is equipped with a Custom Billet Compressor Wheel 11+0 Blades GEN I or GEN II and a Bigger High-Flow 9 Blades Turbine Wheel.

The turbo is one of the most powerful one among Big Turbos for TDI engines. The GTB2260VK  produces lower peak power with the fastest spool. The GTB2565VK  sits in the middle with moderate power and spool.

The turbo is based on a genuine turbo from a BMW F10 N57D30 engine.

Main Features
  • The potential 430HP,
  • Fast spool thanks to Billet Compressor Wheel 11+0 Blades GEN I or GEN II,
  • Enlarged High-Flow 9 Blades Turbine Wheel.
  • Low manifold pressures at high RPM,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • GTB2260VK series machined compressor housing.
  • GTB2260VK series bearing housing.
  • GTB2260VK series machined exhaust housing.

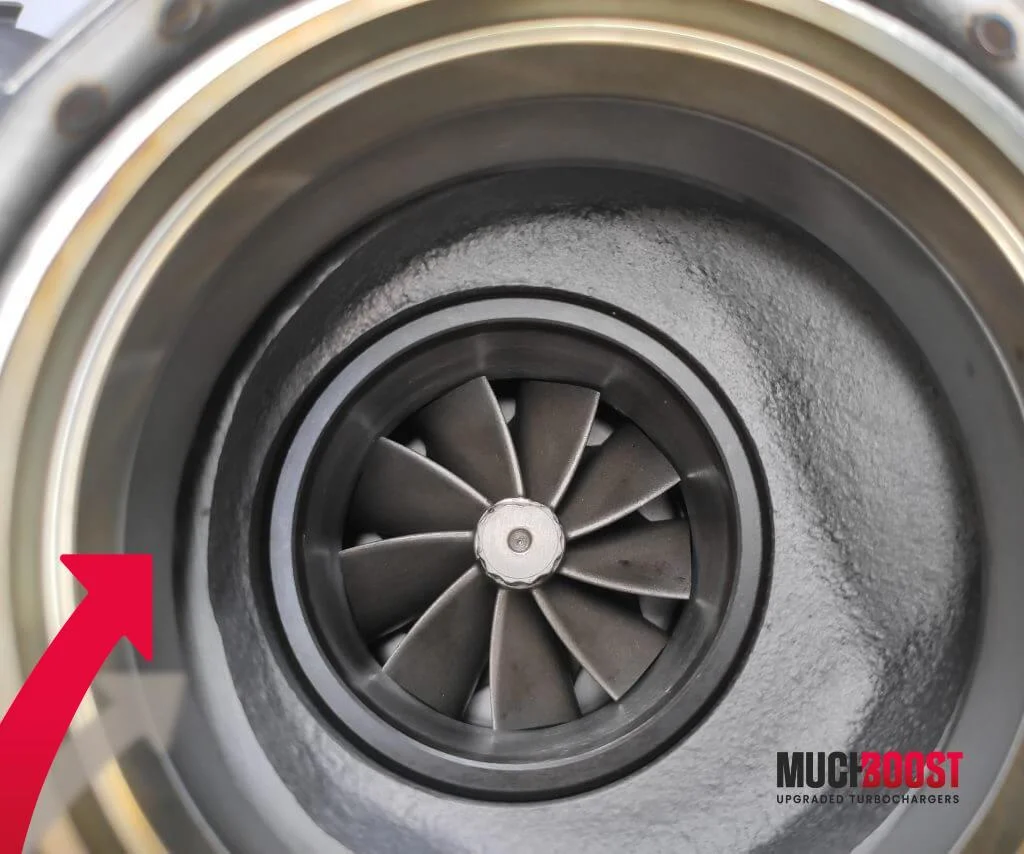

  • GTB28VK 9 blades Turbine Wheel,
  • 71mm High Flow Compressor Wheels,
  • The turbo is cooled by oil only.
  • Garrett 3rd generation of VNT (Variable Nozzle Turbine).
  • The VNT actuator adaptation – standard vacuum or electronic (it depends on your stock turbo).
  • Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Mounting tips:

Steps to be performed during assembly:

  • The Installation of a larger DP,
  • The Installation of custom Inlet & Outlet pipes (we recommend stainless steel),
  • The Installation of an oil return line (included in the kit),
  • The Installation of an oil feed line,

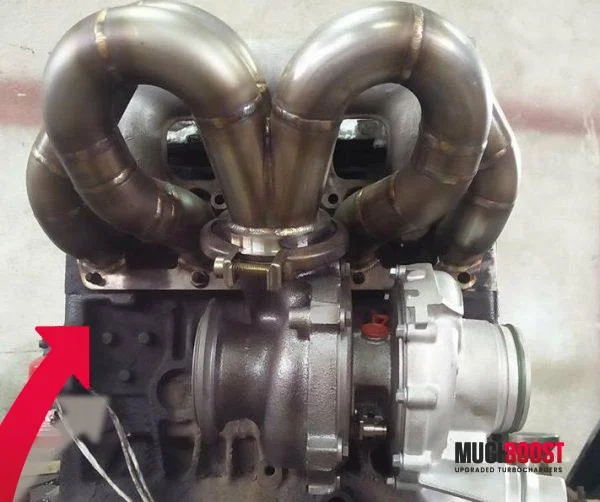

  • The Installation of a custom exhaust manifold. The tubular manifold is recommended. We could offer this turbo with a welded manifold from 1.9/2.0TDI engines (+100,00 EURO), but the high-flow custom stainless steel manifold is recommended.
Other significant modifications

The turbo is meant to work with ~410HP~430HP at 38PSI40PSI of boost. In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Compressor WheelTop BoostTop HP
GEN I Billet 71mm 11+0 blades38PSI/2.4 bar410HP
GEN II Billet 71mm 11+0 blades40PSI/2.6bar430HP
You might also consider
Example project

It’s been long in the work, but the most powerful Lupo is finished. It managed to produce 397HP and 580Nm of torque. The car was also equipped with:

  • Firad 120% injectors,
  • Piper Cams 272 cam,
  • Ported head,
  • Tubular manifold,
  • Max Torque Clutches Ceramic Clutch,
  • Full straight 76mm exhaust system,
  • Big custom 600*300*76 intercooler.

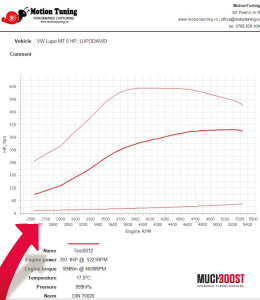

Dyno graph below:

https://www.facebook.com/watch/?v=837376084306236


A set of gaskets and an oil return line are included with every option you choose!

Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.



COMPRESSOR WHEEL

BILLET 11+0 GEN I, BILLET 11+0 GEN II

ACTUATOR

STANDARD, ELECTRONIC
