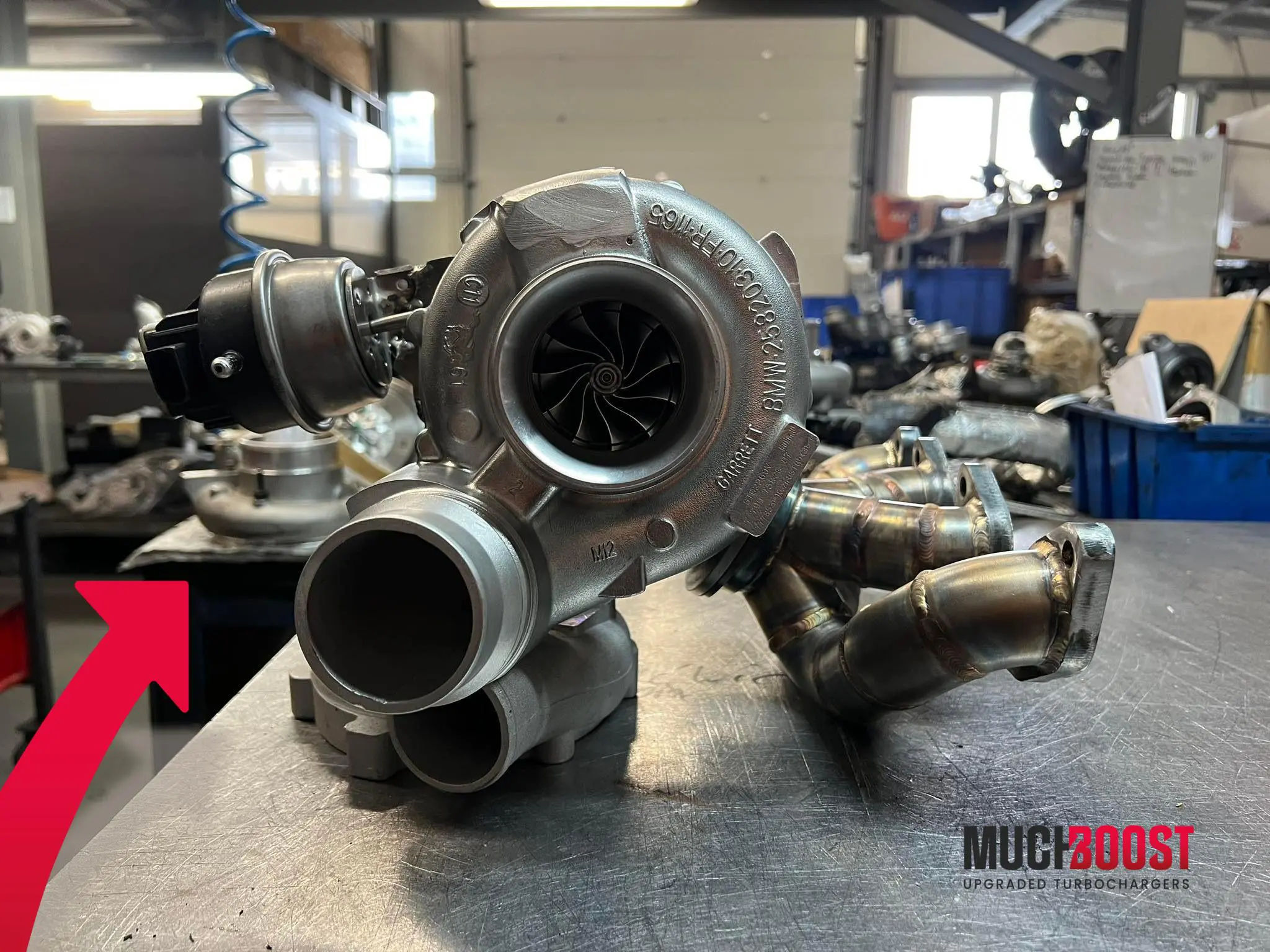

Billet Wheel GTB2565VK Hybrid Turbo Upgrade vacuum converted with a welded 1.9/2.0 TDI Manifold
1449,80 € – 1949,31 €
In Stock
MuchBoost GTB2565VK turbocharger professionally adapted to 1.9TDI, or 2.0TDI transverse and longitudinal VE, PD, and Common Rail engines (all the engine codes are mentioned at the bottom of this page.) The turbo is equipped with a Custom Billet Compressor Wheel GEN I 6+6 blades or GEN II 9+0 blades and GTB25VK turbine wheel. There are both […]
MuchBoost GTB2565VK turbocharger professionally adapted to 1.9TDI, or 2.0TDI transverse and longitudinal VE, PD, and Common Rail engines (all the engine codes are mentioned at the bottom of this page.) The turbo is equipped with a Custom Billet Compressor Wheel GEN I 6+6 blades or GEN II 9+0 blades and GTB25VK turbine wheel.
There are both more and less powerful with later, sooner spool, respectively. GTB2265VK has lower peak power but a faster spool. The GTB2565VK is right in the middle. The GTB2871VK produces higher peak power numbers with a later spool.
Base Turbo
You can choose between 3 different base turbos for the GTB2265VK, as follows:
- 3.0 TDI V6 CAPA, OE number 776469. Provides the fastest spool with a restrictive flow.
- 3.0d BMW 530D E60 M57N2, OE number 758351. Provides moderate speed of spool with medium flow. The most balanced version.
- 3.0d BMW F10 N57D30, number 777853. Provides the slowest spool, but with the highest flow rate. This option is recommended if your goal is to maximize power.
Main Features
- The potential 410HP,
- Fast spool thanks to Billet Compressor Wheel 6+6 or 9+0 Blades,
- Low manifold pressures at high RPM,
- High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
- GTB2260VK series machined compressor housing.
- GTB2260VK series bearing housing.
- GTB2260VK series machined exhaust housing.
- The manifold comes from KKK or Garrett turbochargers (it depends on your stock turbo).

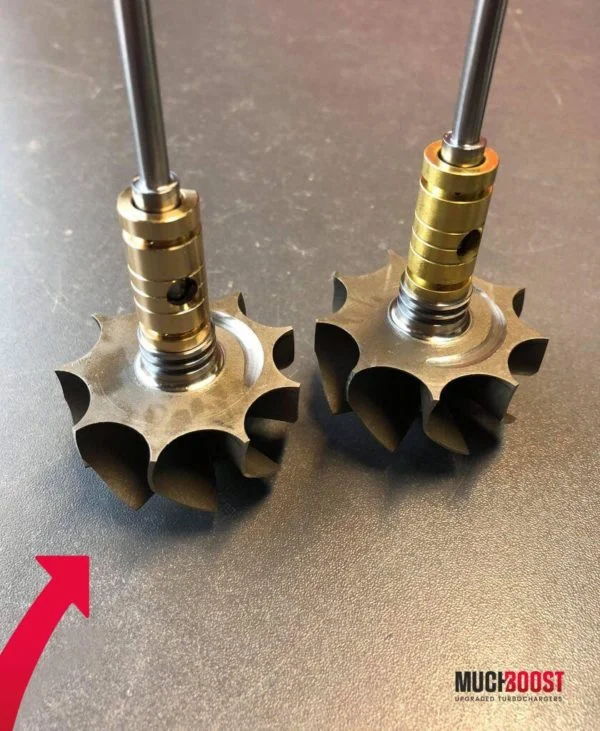

- 65mm High Flow Compressor Wheel 6+6 blades GEN I or 9+0 blades GEN II.
- GTB25VK 9 blades enlarged turbine wheel.
- The turbo is cooled by oil only.
- The EGR is deleted.
- Upgraded journal bearing system that allows holding more boost,
- Garrett 3rd generation of VNT (Variable Nozzle Turbine).
- The VNT actuator adaptation – standard vacuum or electronic (it depends on your stock turbo).
- Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Mounting tips:
Steps to be performed during assembly:
- The Installation of a larger DP (you will receive the flange with the turbocharger),
- The Installation of Inlet&Outlet pipes (we recommend stainless steel).
Other significant modifications
The turbo is meant to work with ~390HP–~410HP at 38PSI–40PSI of boost. In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
Compressor Wheel | Top Boost | Top HP |
---|---|---|
GEN I Billet 65mm 6+6 blades | 38PSI | 390HP |
GEN II Billet 65mm 9+0 blades | 40PSI | 410HP |
The main difference between two wheel options:
- 6+6 Blades – Better top range power, later spool,
- 9+0 Blades – Faster spool, higher power potential.
You might also consider
Engine Codes
BKD, AZV, BKP, ECE, PDE, BSY, ALH, ASV, ASZ, ARL, BLT, BPX, AHF, ARL, ATD, AVK, AUY, AJM, AVB, AJM, AHH, ATJ, AFN, AWX, AFV, BGW, BLB, BPW, CBEA, CJAA, CFFB, CBAB, CBDA, CBDB, CBDC, CFHC, CBAA, BMN, BMR, BUY, BUZ, CBBB, CRLB, CRBC, CRBB, CUNA, CUPA, CKF, CKFC, CRMB, CUUA, CUUB, CFGB, CFFA, CLLA, CFGC, CFJB, CKRU, BRE, BRF, BVF, BVG, BLB, etc.
A set of gaskets and an oil return line are included with every option you choose!
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
BILLET COMPRESSOR WHEEL | GEN I 65MM 6+6 BLADES, GEN II 65MM 9+0 BLADES |
---|---|
VNT ACTUATOR | STANDARD, ELECTRONIC |
BASE TURBO | 3.0TDI V6, 530d E60 M57N2, 530d F10 N57D30 |
DP FLANGE | 3 BOLT/STOCK V-BAND, V-BAND 2,75", V-BAND 3,00" |
