2.5TDI Ceramic Ball Bearing Hybrid Turbo Upgrade AKE, BDH, BAU Audi A4, A6, A8, Skoda Superb, VW Passat
1299,00 €
In Stock

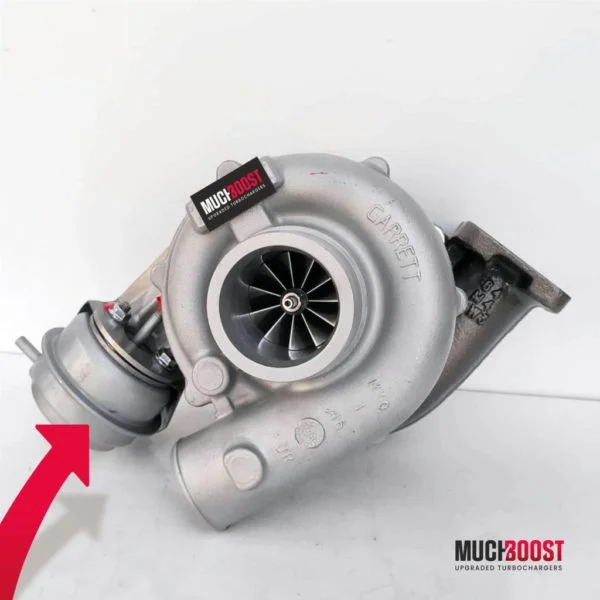

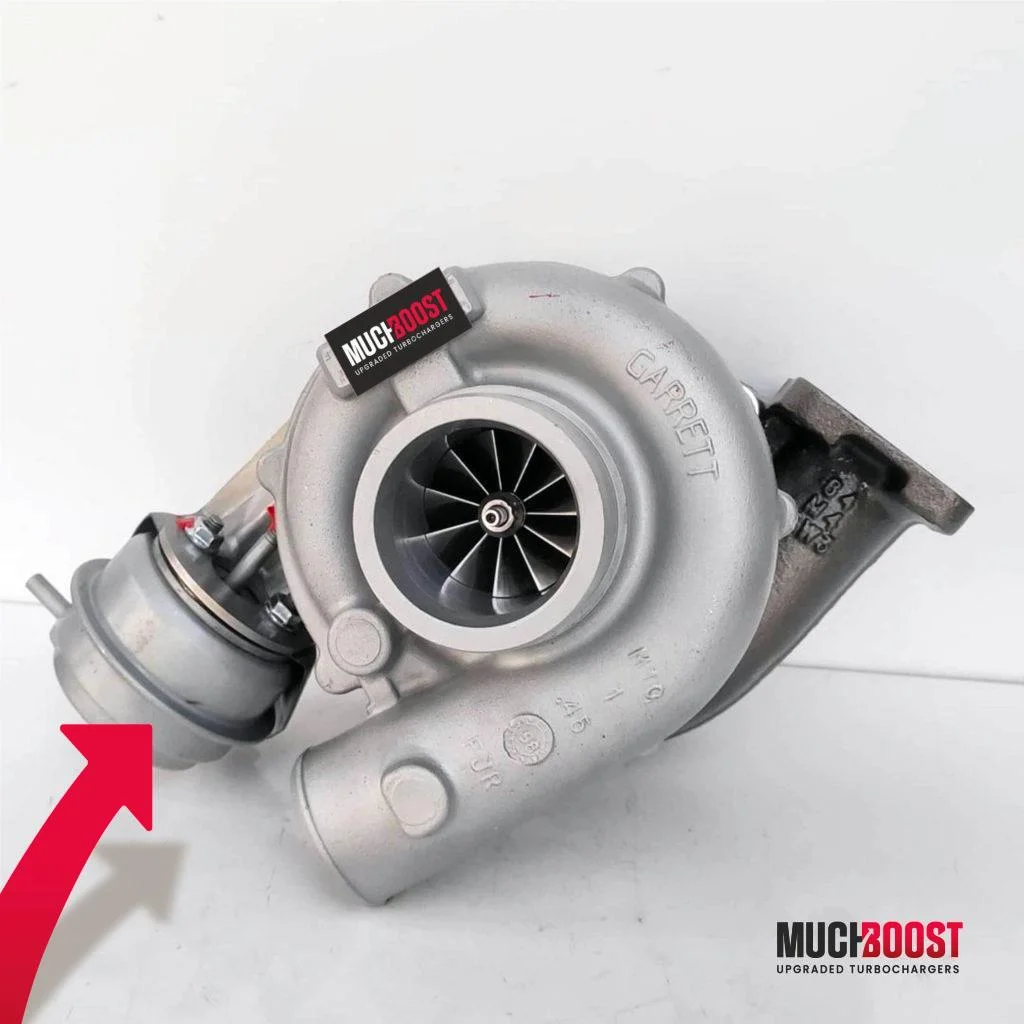

Ceramic ball bearing MuchBoost 2.5TDI Upgraded Turbocharger with a Custom Billet Compressor Wheel and an Enlarged Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A4 B6, A6 C5, A8 D2, Skoda Superb I, VW Passat B5 with the 2.5TDI 150-180HP […]
Ceramic ball bearing MuchBoost 2.5TDI Upgraded Turbocharger with a Custom Billet Compressor Wheel and an Enlarged Turbine Wheel. It is based on an original Garrett Turbocharger, which means that the installation is 100%P&P. The turbocharger is meant to work with Audi A4 B6, A6 C5, A8 D2, Skoda Superb I, VW Passat B5 with the 2.5TDI 150-180HP engines.
The turbo delivers up to 200% power (150 extra HP) over the factory specs. It is a great choice for someone looking for a bit extra HP from their daily driver. MuchBoost turbo allows you to get more from your engine and enjoy it even more than you’ve been so far.
Main Features
- The potential ~300HP,
- Fast spool thanks to Enlarged Custom Billet Compressor Wheel,

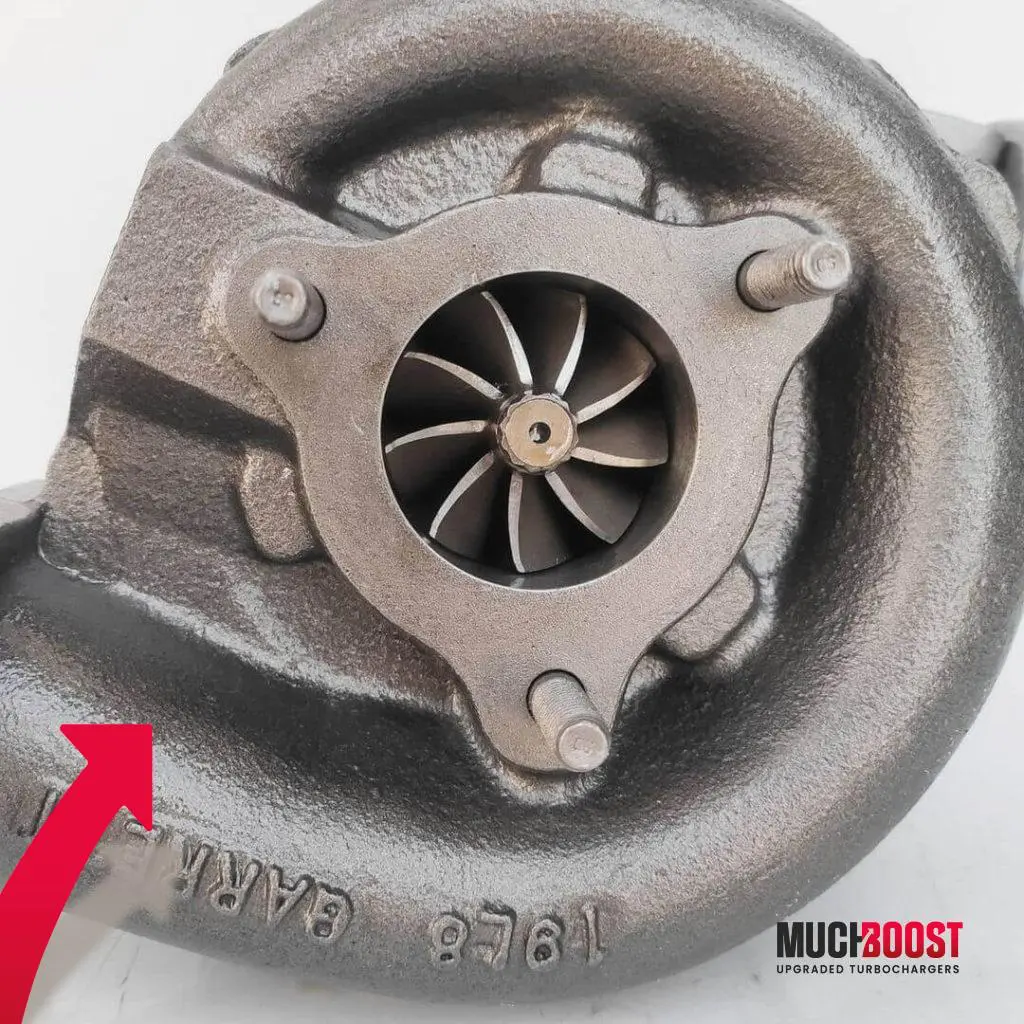

- Enlarged Turbine Wheel,
- Ceramic ball bearing conversion.
- High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
- Genuine Garrett compressor housing,
- Genuine Garrett exhaust manifold,
- Genuine Garrett bearing housing,
- Upgraded bearing system that allows holding more boost,
- Precisely machined exhaust & compressor housings, seal plate, and bearing housing,
- Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines.
- The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications
The turbo is meant to work with ~300HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.
A set of gaskets is included with the turbo!
Cars
Audi A6 C5 2.5TDI,
Audi A8 D2 2.5TDI,
Audi All Road 2.5TDI,
Skoda Superb I 2.5TDI,
VW Passat B5 2.5TDI
Factory numbers
454135-5011S
454135-9011S
454135-9009S
454135-5009S
454135-5006S
454135-0006
454135-0002
454135-0001
454135-5012S
454135-9012S
454135-5010S
454135-9010S
454135-0008
454135-0005
454135-0003
AR0105
Engines
AFB, AKN, AKE, BDG, BDH,
BAU, AYM, BFC, BCZ
OEM number
059145701S
059145701SX
059145701SV
059145701K
059145701D
059145701F
059145701G
059145701GX
059145701GV
059145701C
059145701CX
059145701CV
(If your engine has a different code, please send us a message. We will verify it.)
Matters you should be aware of when placing your order.
-
- The warranty is 12 months without the limit of mileage.
- We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping) is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
- Every parcel is fully insured.
- If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
- Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
- During placing your order, please provide information as follows:
-
- the engine code,
- the car model,
- the stock power,
- the VIN number
These details are helpful to make the turbo correctly.
