  • 2.0TFSI K04 064 Hybrid Turbo Upgrade Audi S3, TT, Seat Leon, VW Golf, Scirocco
+
Add to Wishlist
Add to Wishlist

MuchBoost K04 064 Upgraded Turbocharger with a Custom Billet Compressor Wheel Blades and a High-Flow Enlarged Turbine Wheel. It is based on a genuine turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with Audi S3, TT, Seat Leon, VW Golf, and Scirocco with the 2.0TFSI 265-272HP engines.

The turbo delivers over 151% of stock power (135HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.

Main Features
  • The potential +420HP,

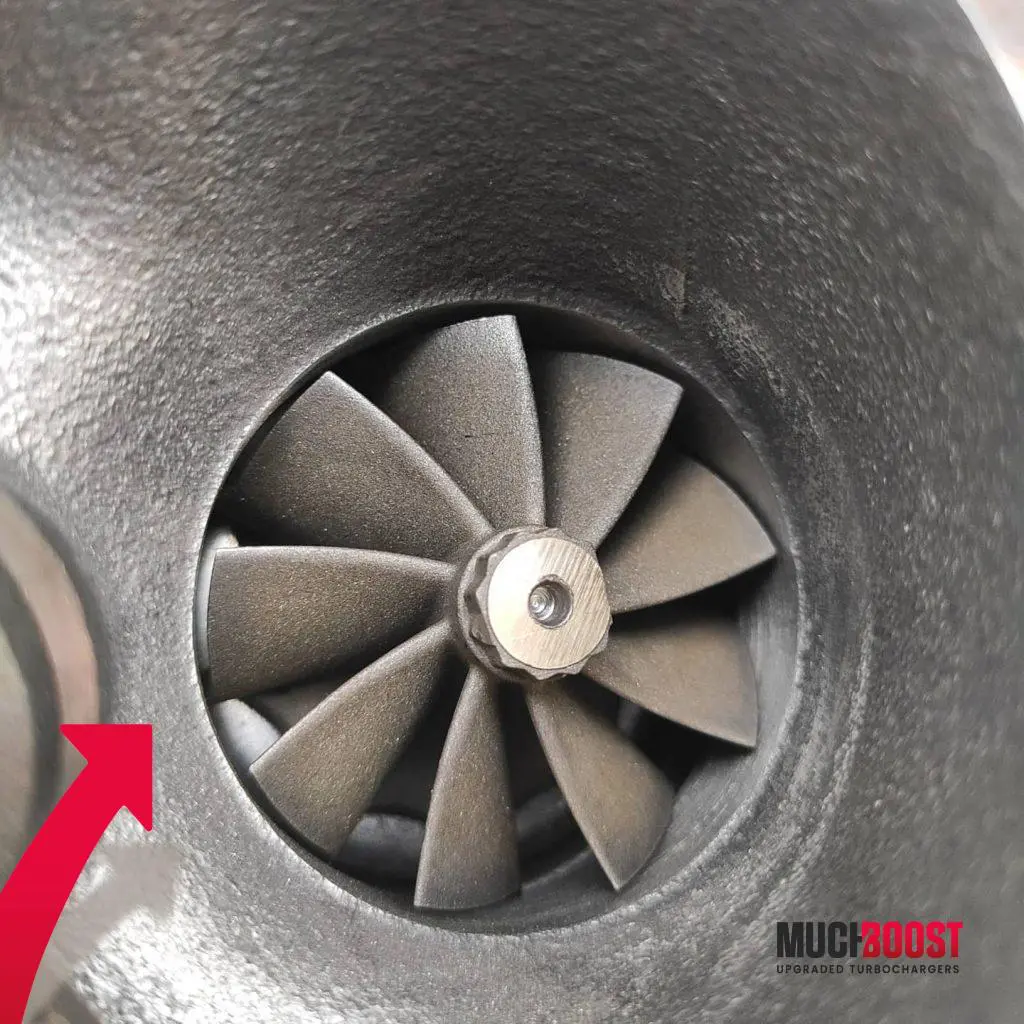

  • Fast spool thanks to Custom Billet Compressor Wheel,
  • High-Flow Enlarged Turbine Wheel,
  • High air-fuel ratio including high peak torque achieved at low engine speeds.
Details on the construction of the turbo:
  • Modified KKK genuine compressor housing and seal plate,
  • Genuine KKK bearing housing,
  • Reinforced actuator,
  • Precisely machined genuine KKK exhaust housing,
  • Upgraded Journal bearing system that allows holding more boost,
  • The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.
Other significant modifications

The turbo is meant to work with +420HP In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well.

Example project

One of our clients managed to produce 390HP and 520Nm of torque with their Skoda Octavia. The car was also equipped with:

  • Milltek Sport Sport Non-Resonated Catback exhaust,
  • Vis motorsport EA888 gen2 HPFP upgrade,
  • Catless downpipe,
  • CTS Turbo Intake kit,
  • Upgraded Intercooler,
  • DV relocation kit,
  • CCC Motorsport Upgrade Clutch Kit.

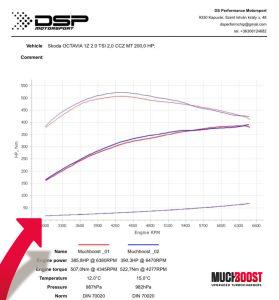

Dyno graph below


A set of gaskets is included with the turbo!


Cars
Audi S3 2.0 TFSI (8P/PA) 265HP
Audi TT S 2.0 TFSI (8J) 272HP
Seat Leon 2.0 TFSI Cupra 241HP
VW Golf V GTI 2.0 TFSI 210/220/230HP
VW Golf VI R 2.0 TFSI 270HP
Vw SCIROCCO R 2.0 TFSI 265HP


Factory numbers
53049880064
53049700064
Engines

BHZ, BWJ, BYD, BZC, CDLD, CDLF, CDLA, CDMA, CDLH, CDLS, CDLC


OEM number
06F145702C
06F145702CX
06F145702CV


(If your engine has a different code, please send us a message. We will verify it.)


Matters you should be aware of when placing your order.
    1. The warranty is 12 months without the limit of mileage.
    2. We need about 7 working days to perform and ship the upgraded turbocharger. The parcels in European Union are shipped via DPD for just 25,00 EURO. DHL Express (airplane shipping)  is used for orders besides the EU, it costs 99,00 EURO. The average delivery time is 2-4 working days.
    3. Every parcel is fully insured.
    4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
    5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
    6. During placing your order, please provide information as follows:
    • the engine code,
    • the car model,
    • the stock power,
    • the VIN number

These details are helpful to make the turbo correctly.
